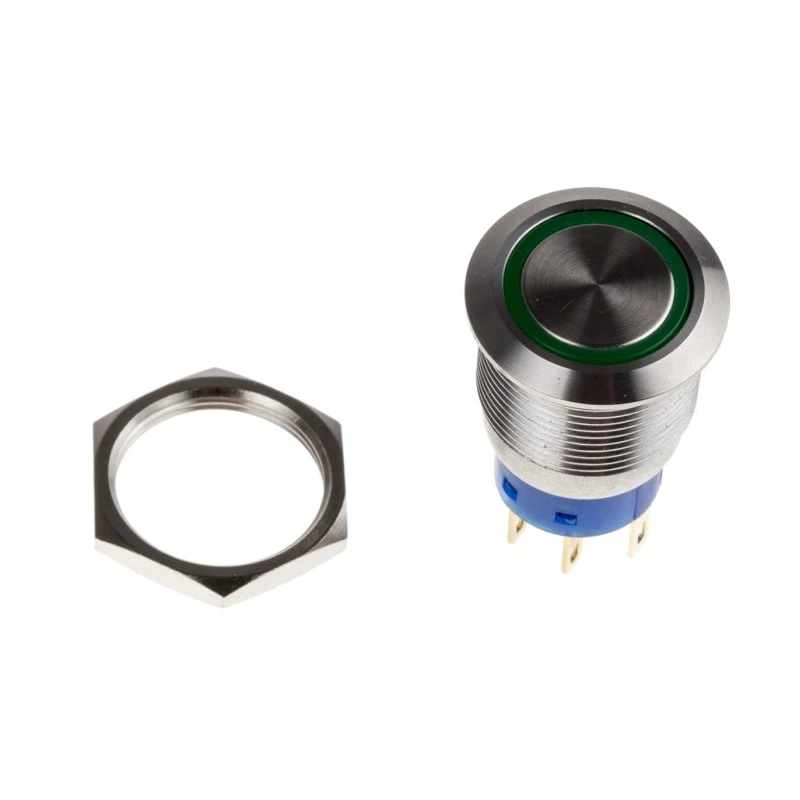

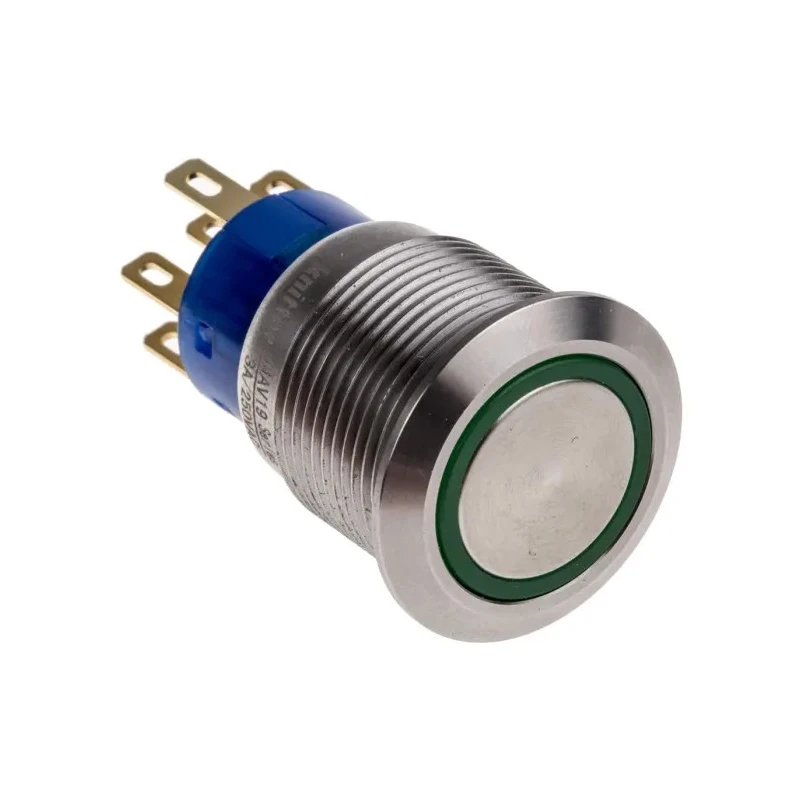

KNITTER-SWITCH Illuminated Vandal Proof Momentary Push Button Switch DPDT 19.2 mm Cutout Green LED MAV19A0F20E-624-JR

KNITTER-SWITCH MAV19A0F20E-624-JR is an illuminated vandal proof push button switch designed for momentary operation featuring a 19.2 mm panel cutout and double pole double throw (DPDT) contact configuration. This panel-mount switch includes a green LED illumination and is ideal for industrial, electrical, automation, and control panel applications requiring robust and reliable switch components.

The actuator of the switch is made of stainless steel with a silver finish and a round style actuator. It has a ring-shaped lens to provide clear illuminated indication. This switch is designed to withstand harsh operating environments with an IP67 ingress protection rating, making it highly resistant to dust, water, and vandalism.

The switch contact ratings include 250 V AC and 250 V DC voltages with a maximum contact current of 3 A. The terminal type is solder lug with gold flash over silver solder tabs to ensure optimal conductivity and resistance to corrosion. It operates reliably in a wide temperature range from -20°C to 120°C, suitable for demanding industrial environments.

The green LED illumination uses a 24 V supply at approximately 12 mA, providing clear visual status indication. It complies with UL 94 V-0 and V-2 flame retardant standards, guaranteeing safety and durability in electrical installations.

This product is manufactured in China and comes as a new condition. It is intended for use in electrical panels, industrial machinery, control systems, and automation equipment where illuminated switch indication and vandal resistance are paramount.

Stainless steel button with silver actuator colour for durability. Momentary, on-off switch operation with DPDT contact configuration. Green LED illumination at 24 V, ca. 12 mA for clear status indication. IP67 rated for dust and water ingress protection ensuring vandal resistance.

Solder lug terminals with gold flash over silver tabs for reliable connections. Contact voltage rating of 250 V AC and 250 V DC with 3 A current capacity. Wide operating temperature range from -20°C to 120°C for varied environments.

Meets UL 94 V-0 and V-2 flame retardant standards for safety. Explore the range of industrial Push Button Switches and electrical components at EnvMart for reliable automation and control solutions.
