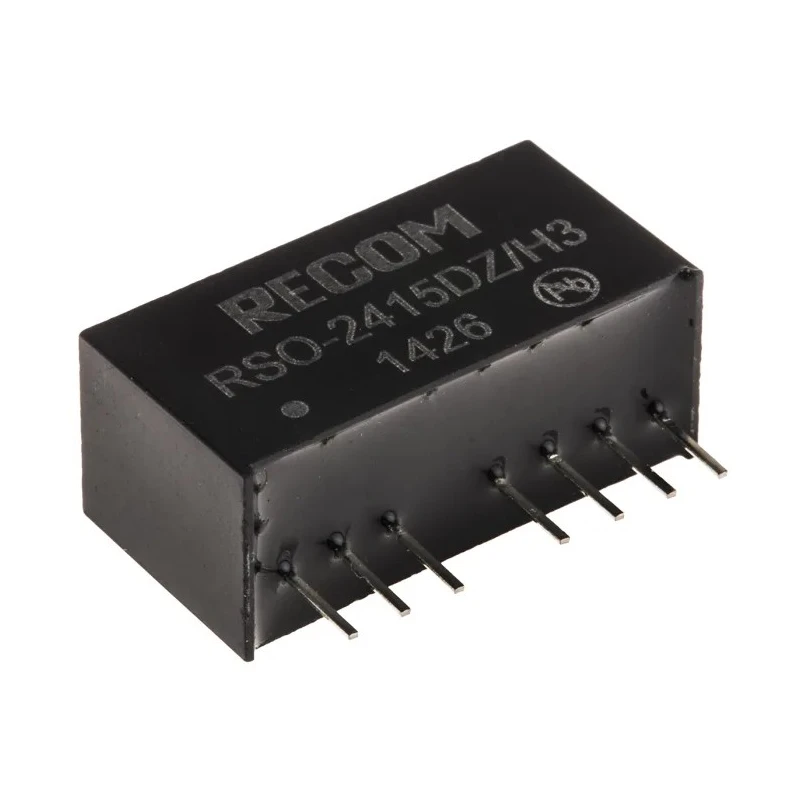

Recom Regulated Isolated DC/DC Converter 15V dc 34mA 36V dc Input 9V Input 1W Through Hole SIP Package RSO-2415DZ/H3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RSO DC/DC Converter, 15V dc/ 34 mA, 36V dc I |
| Brand | Recom |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | RSO-2415DZ/H3 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RSO |
| Maximum Operating Temperature | 75°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1685000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 34mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
| RSO series 1W single/dual output regulated DC to DC converters with 4 | 1 input and high power density. These 1W single/dual output regulated DC to DC converters have On-Off control and 3kVDC isolated versions are ,medically approved |
Key Features
- This converter features a through-hole SIP package with 8 pins, suitable for industrial electronic assembly.
- It offers a maximum output power of 1 Watt with 80% efficiency and continuous short circuit protection.
- Operating temperature ranges from -40°C to 75°C, making it suitable for harsh environments.
- The device has a 3kV dc isolation voltage and medically approved certifications for part numbers with the H3 suffix.
- Its compact dimensions are 21.8mm length, 11.1mm depth, and 9.2mm width for space-efficient PCB integration.
- Remote On/Off control and regulated outputs minimize noise and eliminate the need for external capacitors.
- MTBF is exceptionally high at 1,685,000 hours according to MIL-HDBK-217F at 25°C.
- This converter is ideal for medical, industrial, and laboratory power supply applications.
Product Description
Recom RSO-2415DZ/H3 is a highly reliable and efficient 1 Watt single/dual output regulated isolated DC/DC converter designed for a wide input voltage range of 9V to 36V DC. This SIP package device offers dual outputs with one output at 15V DC and the other at -15V DC, each providing 34 mA current, making it suitable for delicate electronic devices requiring isolated power supplies.
The unit supports medical-grade isolation of 3kV DC and is constructed with UL94V-0 flame retardant package material, ensuring safety and durability in demanding industrial and medical environments. Its compact SIP-8 form factor and through-hole mounting simplify PCB assembly and space management.
Its wide temperature operating range from -40°C to 75°C and continuous short circuit protection add robustness for harsh conditions. With an efficiency of 80%, it reduces energy loss while delivering stable power. Remote On-Off control capabilities provide operational flexibility and reduce noise; external capacitors are not required for stable performance.
The RSO series converters are extensively tested with an MTBF of over 1.68 million hours, assuring long-term reliability. This product meets medical isolation standards for applications requiring strict safety and performance compliance.
This converter features a through-hole SIP package designed for easy PCB mounting. Regulated dual isolated outputs provide stable power for sensitive electronic loads. Operation supports ultra-wide 4:1 input ratio voltage ensuring versatility.
Medical approval (H3 series) for applications in healthcare equipment. High isolation voltage of 3kV DC enhances safety in critical use cases. Compact dimensions and high MTBF make it ideal for industrial and laboratory applications.
Continuous short circuit protection safeguards the device during faults. Efficient 80% conversion reduces power loss and heat generation.
This DC/DC converter from Recom is perfect for electronics, medical devices, industrial automation, and laboratory equipment where reliable isolated power is mandatory. It supports remote on/off control, noise reduction, and compliance with medical standards ensuring exceptional performance and safety.
Explore more high-quality converters in the DC/DC Converter category at EnvMart to find products that fit your design and performance requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of the Recom RSO-2415DZ/H3 is 1 Watt.
This converter has a wide input voltage range from 9V to 36V DC.
The dimensions of this model are 21.8mm in length, 11.1mm in depth, and 9.2mm in width.
It provides two outputs: one at 15V DC and the other at -15V DC, each supplying 34 mA.
The efficiency of the Recom RSO-2415DZ/H3 is rated at 80%.
This converter features an isolation voltage of 3kV DC, suitable for medical applications.
The operating temperature range is from -40°C to 75°C.
This model uses a through-hole mounting type, designed for easy PCB assembly.
The mean time between failures (MTBF) is exceptionally high at 1,685,000 hours.
Yes, it features continuous short circuit protection to safeguard the device during faults.
The package type is SIP (Single In-line Package), which is compact and suitable for space-efficient PCB integration.
Yes, it is medically approved for applications requiring strict safety and performance compliance, particularly those with the H3 suffix.
