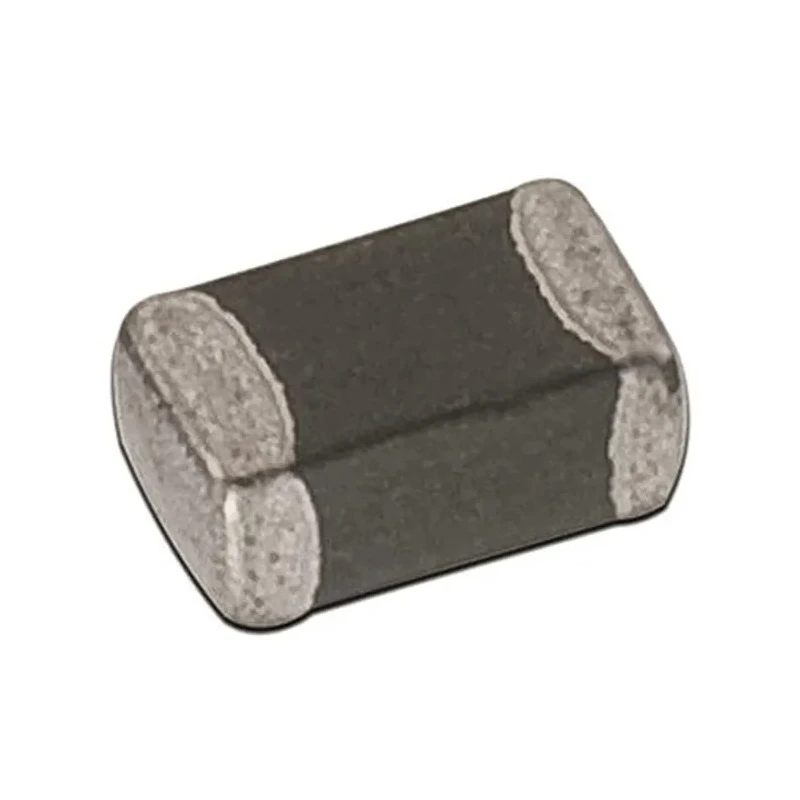

Wurth Elektronik 0806 Shielded Multilayer Surface Mount Inductor with Ferrite Core 680 nH ±20 % 74479876168C
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1mm |
| Length | 2mm |
| Model | 74479876168C |
| Depth | 1.6mm |
| Series | WE-PMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 680nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 0806 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 68mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 90MHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Multilayer |
Key Features
- Compact 0806 package size with 2 mm length and 1 mm height.
- Designed for high current applications with a maximum DC current of 2 A.
- Magnetically shielded construction to prevent crosstalk and interference.
- Suitable for reflow soldering processes.
- Wide operating temperature range from -40°C to 125°C.
- Maximum DC resistance rated at 68 mΩ for efficient performance.
- Core material is ferrite, offering reliable magnetic properties.
- High maximum self-resonant frequency of 90 MHz supports high frequency applications.
Product Description
Wurth Elektronik 74479876168C is a high-performance 0806 shielded multilayer surface mount inductor equipped with a ferrite core, rated at 680 nH inductance with ±20% tolerance. This compact multilayer design offers low DC resistance starting from 7 mΩ and a maximum DC current rating of 2 A, making it suitable for demanding power applications.
The magnetically shielded construction minimizes electromagnetic interference, allowing use in sensitive electronic equipment. Designed for compatibility with reflow soldering, it ensures reliable assembly in automated PCB manufacturing.
Its operating temperature range from -40°C to 125°C and maximum self-resonant frequency of 90 MHz make it ideal for use in high switching frequency DC-DC converters, commonly found in modern electronics such as tablets, smartphones, and cameras.
The inductor's ferrite core enhances magnetic properties for efficient energy storage and transfer, delivering a minimum quality factor of 14 to maintain stable inductance across operational conditions.
This Wurth Elektronik WE-PMI series product complies with industry standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, ensuring quality and environmental safety. Compact 0806 footprint with surface mount termination style.
Power inductor with low RDC and high saturation current capabilities. Shielded design for reduced electromagnetic interference. Suitable for applications requiring stable inductance and high quality factor. Meets automotive and industrial reliability standards.
Commonly applied in industrial electronics, power supply circuits, telecommunications, and consumer electronic devices. Wurth Elektronik's 74479876168C offers reliability and compactness for space-constrained designs.
Explore more high-quality electronic components from Wurth Elektronik in the Surface Mount Inductors category at EnvMart for your power management and signal integrity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680 nH with a tolerance of ±20%.
It has a maximum DC current rating of 2 A, making it suitable for high current applications.
This model has a length of 2 mm, a height of 1 mm, and a depth of 1.6 mm.
The maximum self-resonant frequency is 90 MHz, which supports high frequency applications.
The core material is ferrite, which provides reliable magnetic properties.
It operates within a temperature range of -40°C to 125°C.
This unit features a surface mount termination style, suitable for automated PCB assembly.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
The maximum DC resistance is rated at 68 mΩ, contributing to its efficient performance.
It is commonly applied in industrial electronics, power supply circuits, telecommunications, and consumer electronic devices.
The minimum quality factor is 14, which helps maintain stable inductance across operational conditions.
Yes, it is designed for compatibility with reflow soldering processes, ensuring reliable assembly.
