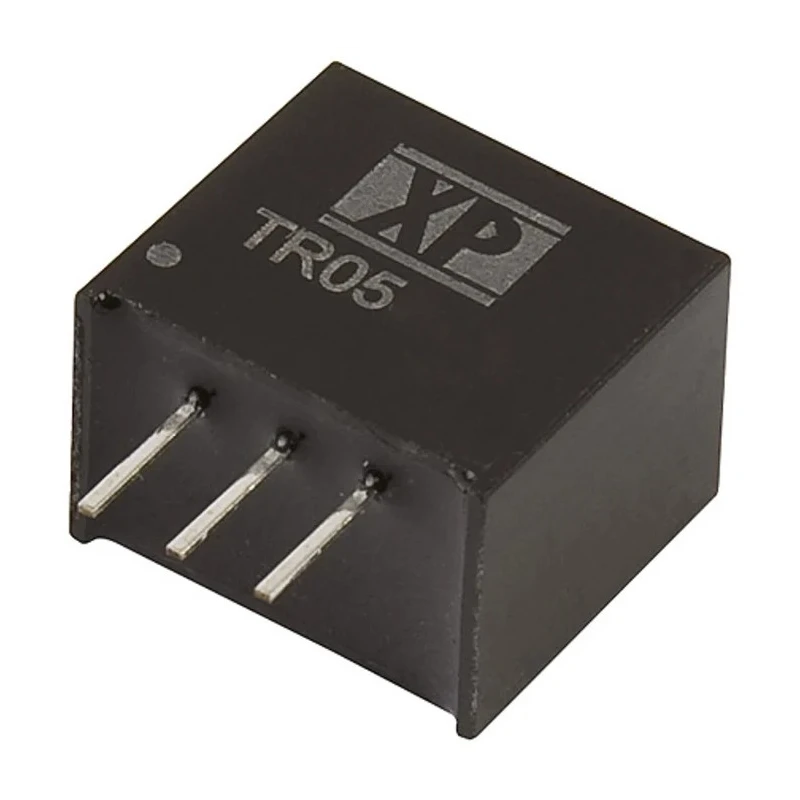

XP Power DC/DC Switching Regulator Through Hole 12V DC Output 6W 500mA High Efficiency TR05S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Power | 6W |
| Efficiency | 94% |
| Length | 11.68mm |
| Model | TR05S12 |
| Depth | 10.15mm |
| Gross Weight | 1.8g |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | TR |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.8 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 4mH |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Input Voltage | 28V dc |
| Line Regulation | ±0.5 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 14V |
| Output Voltage 1 | 12V dc |
Key Features
- High efficiency up to 94% ensures reduced power losses and reliable operation.
- 12V DC output voltage at 500mA supports diverse electronics and industrial projects.
- Compact SIP package saves board space in designs and enables convenient through hole mounting.
- Continuous short-circuit protection ensures safe and durable performance.
- Wide input voltage range from 14V to 28V DC enhances applicability in variable power environments.
- Operating temperature from -40°C to 85°C supports harsh indoor and outdoor conditions.
- Ripple and noise limited to 60mV peak-to-peak ensures clean output for sensitive electronics.
- RoHS compliant construction meets global environmental standards.
Product Description
XP Power TR05S12 DC/DC Switching Regulator is a robust and efficient choice for demanding electronic and industrial power applications. This device features a 12V DC output voltage and delivers up to 500mA output current, making it ideal for powering a wide range of circuits and modules.
The regulator is designed with a compact SIP package for versatile through hole mounting, allowing for straightforward inclusion in both new and existing designs. With a maximum power rating of 6W and high efficiency up to 94%, it supports energy-saving operation and minimizes heat generation, critical for reliability and longevity across industrial settings.
High efficiency up to 94% ensures reduced power losses and reliable operation. 12V DC output voltage at 500mA supports diverse electronics and industrial projects. Compact SIP package saves board space in designs and enables convenient through hole mounting.
Continuous short-circuit protection ensures safe and durable performance. Wide input voltage range from 14V to 28V DC enhances applicability in variable power environments. Operating temperature from -40°C to 85°C supports harsh indoor and outdoor conditions.
Ripple and noise limited to 60mV peak-to-peak ensures clean output for sensitive electronics. RoHS compliant construction meets global environmental standards.
XP Power’s TR Series switching regulators provide industry standard pin compatibility - such as compatibility with LM78MXX series - making them an excellent drop-in replacement where higher efficiency and compact size are needed. Continuous short-circuit protection ensures the safety of downstream components during abnormal conditions. These regulators are engineered for applications in electronics, industrial automation, telecommunications, instrumentation, and anywhere reliable DC/DC conversion is required.
Suitable for use in manufacturing control systems, laboratory instrumentation, HVAC controllers, communication devices, and embedded electronics. Explore more DC/DC switching regulators and power supply devices from XP Power in the Switching Regulator category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a 12V DC output voltage with a maximum output current of 500mA.
The efficiency of this model is up to 94%, which helps in reducing power losses during operation.
The input voltage range is from 14V to 28V DC, making it suitable for various power environments.
The dimensions of this model are 11.68mm in length, 7.5mm in width, and 10.15mm in depth.
It can operate at a maximum temperature of 85°C, suitable for harsh conditions.
Yes, it features continuous short-circuit protection to ensure the safety of downstream components.
The ripple and noise are limited to 60mV peak-to-peak, ensuring a clean output for sensitive electronics.
It supports through hole mounting, allowing for easy integration into various designs.
Yes, it meets RoHS standards, ensuring compliance with global environmental regulations.
The package type is SIP, which contributes to its compact design.
This model is suitable for applications in electronics, industrial automation, telecommunications, and instrumentation.
The load regulation is ±0.8%, which helps maintain stable output under varying load conditions.
