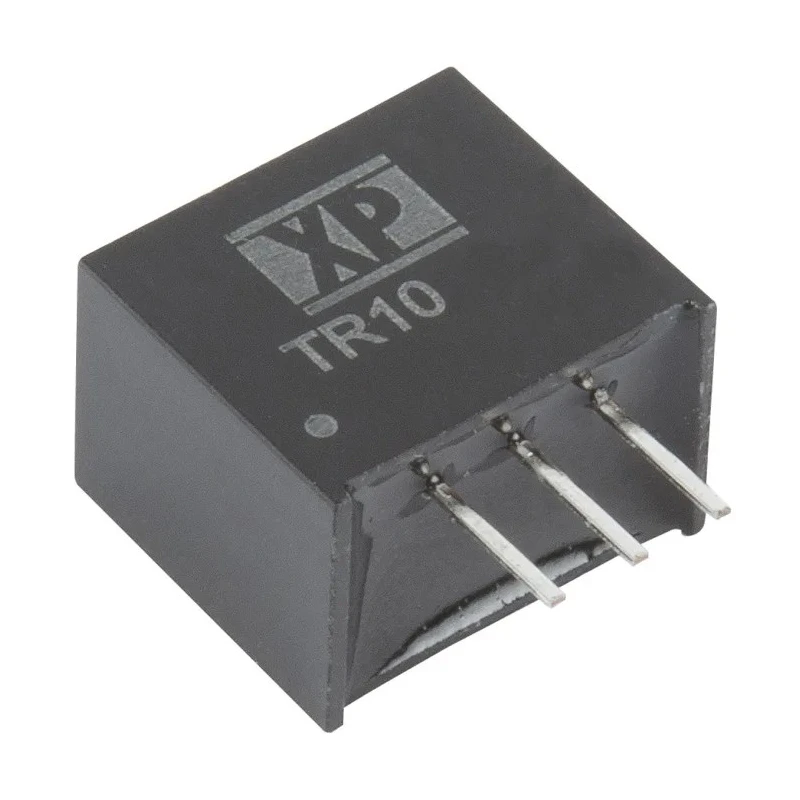

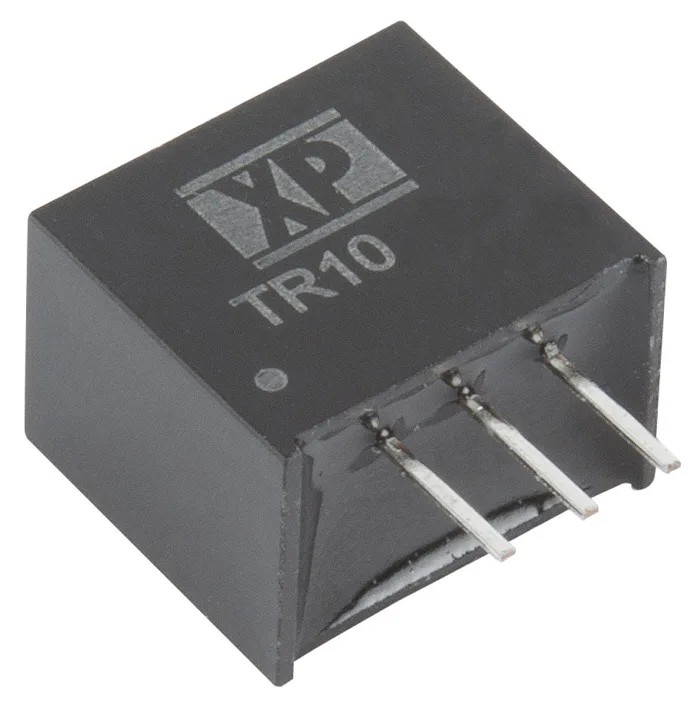

XP Power Switching Regulator 5V Output Voltage 1A Output Current TR10S3V3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators XP Power Switching Regulator, 5V Output Voltag |
| Brand | XP Power |
| Efficiency | 90% |
| Length | 11.68mm |
| Model | TR10S3V3 |
| Depth | 7.5mm |
| Gross Weight | 2.1g |
| Width | 10.16mm |
| Series | TR10 |
| Output Current | 1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 1.5 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 3800000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Input Voltage | 28V |
| Line Regulation | 1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 8V |
| Output Voltage 1 | 5V |
Key Features
- The regulator operates efficiently with a 90% efficiency rating.
- It features low ripple and noise at 100mV peak-to-peak.
- Designed to function reliably between -40°C and 85°C.
- Includes tight line and load regulation for stable output voltage.
- Supports a wide input voltage range from 8V to 28V.
- Compact dimensions of 11.68mm length, 10.16mm width, and 7.5mm depth.
- Offers an MTBF of 3,800,000 hours indicating long operational life.
- Meets RoHS compliance standards for environmental safety.
Product Description
XP Power TR10S3V3 switching regulator is a high-quality, low-cost DC-DC converter designed in a standard 3-pin SIP package. It delivers a regulated 5V output voltage at a 1 Amp output current, making it suitable for a wide range of power supply and voltage converter applications.
Manufactured to operate within an ambient temperature range of -40°C to +85°C, this regulator ensures stable performance even in harsh environmental conditions. Its high efficiency of 90% helps minimize energy loss and heat generation during operation.
The device features excellent line regulation of 1% and load regulation of 1.5%, providing tight voltage control. Ripple and noise are maintained at a low 100mV peak-to-peak, ensuring clean power suitable for sensitive electronic circuits.
The TR10S3V3 series supports a broad input voltage range from 8V to 28V, delivering full power up to 60°C ambient temperature. This makes it versatile for various industrial, laboratory, and commercial power supply systems.
This switching regulator has a compact form factor with dimensions (LxWxD) of 11.68mm x 10.16mm x 7.5mm and weighs just 2.1g. It is RoHS compliant, reflecting adherence to environmental standards and directives.
The MTBF (Mean Time Between Failures) is rated at 3,800,000 hours, ensuring longevity and reliability for demanding electrical and electronic applications including industrial automation, instrumentation, and communication systems.
The regulator operates efficiently with a 90% efficiency rating. It features low ripple and noise at 100mV peak-to-peak. Designed to function reliably between -40°C and 85°C. Includes tight line and load regulation for stable output voltage.
Supports a wide input voltage range from 8V to 28V. Compact dimensions of 11.68mm length, 10.16mm width, and 7.5mm depth. Offers an MTBF of 3,800,000 hours indicating long operational life. Meets RoHS compliance standards for environmental safety.
Compatible replacement for LM78MXX series regulators. Ideal for use in electronic components, power supplies, and voltage conversion applications.
The XP Power TR10S3V3 Switching Regulator is a reliable and efficient solution for designers and engineers requiring stable DC output voltage regulation. It is well-suited for applications in electronics manufacturing, industrial machines, communication equipment, and laboratory instruments.
Explore more top-quality components and power products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V and an output current of 1A.
It operates with an efficiency rating of 90%, minimizing energy loss during operation.
The regulator supports a wide input voltage range from 8V to 28V.
The compact dimensions of this unit are 11.68mm in length, 10.16mm in width, and 7.5mm in depth.
It is designed to operate reliably between -40°C and 85°C.
The regulator features low ripple and noise at 100mV peak-to-peak.
It includes a line regulation of 1% and a load regulation of 1.5%, ensuring stable output voltage.
The MTBF is rated at 3,800,000 hours, indicating a long operational life.
Yes, it meets RoHS compliance standards for environmental safety.
This model is designed in a standard 3-pin SIP package.
It is suitable for various industrial, laboratory, and commercial power supply systems, including electronic components and voltage conversion applications.
The regulator is manufactured in Taiwan.
