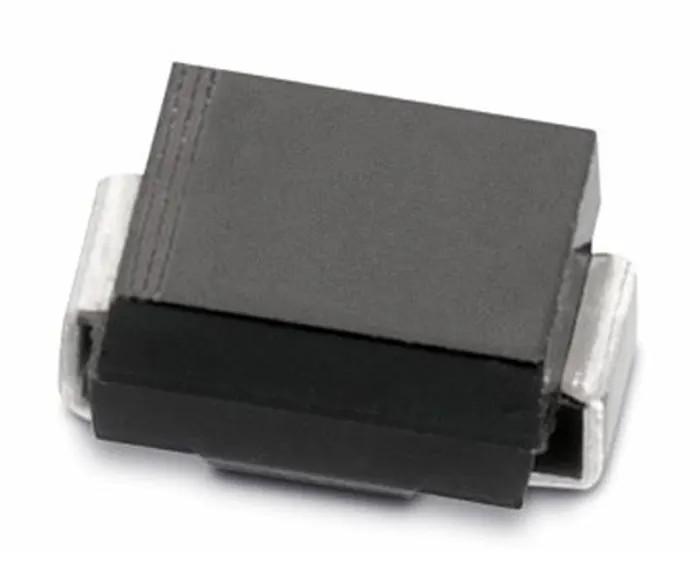

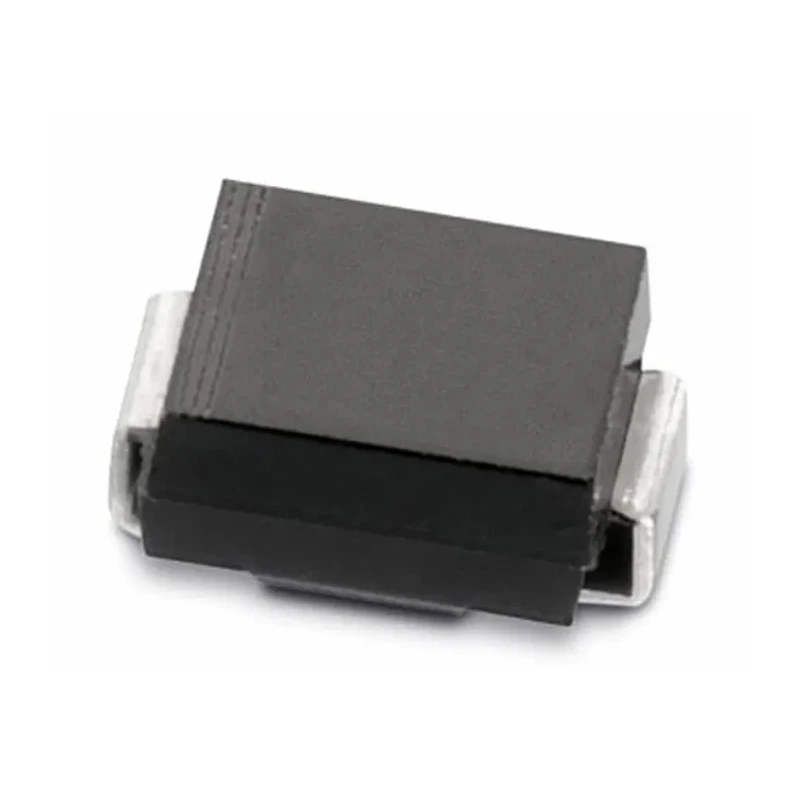

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521431

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521431

Name: Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521431
Brand: Wurth Elektronik
SKU: 136815
Price: 0.37 USD
Availability: InStock



Category TVS Diode Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2.3mm
Length	4.32mm
Width	3.62mm
Mount Type	Surface
Series	WE-TVSP
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	69.4V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	50.3V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	8.7A
Maximum Reverse Leakage Current	1μA

Key Features

This diode features a minimum breakdown voltage of 50.3 V and a clamping voltage of 69.4 V.
It is designed with a glass passivated junction for reliable fast transient voltage suppression.
The device operates within a temperature range of -65°C to 150°C, suitable for harsh environments.
Its peak pulse current rating is 8.7 A, making it ideal for protecting sensitive electronic components.
The diode configuration is single element and bidirectional for versatile circuit protection.
Compact dimensions of 4.32 mm length, 3.62 mm width, and 2.3 mm height enable low profile PCB layouts.
This TVS diode is RoHS-compliant and manufactured in China to high quality standards.

Product Description

Wurth Elektronik 824521431 is a 1-element bi-directional TVS diode with a peak pulse power dissipation of 600 W, housed in a 2-pin DO-214 surface mount package. This low profile device is designed to protect electronic circuits from transient voltage spikes by clamping voltage up to 69.4 V quickly and reliably.

Featuring a glass passivated junction, the diode has excellent response time and long-term stability, making it suitable for industrial, automotive, and electronic manufacturing applications. It supports operation between -65°C and 150°C, allowing deployment in harsh environments.

The TVS Diode offers a minimum breakdown voltage of 50.3 V and can withstand a test current of 1 mA and a maximum peak pulse current of 8.7 A. Its small physical size with dimensions of 4.32 mm length, 3.62 mm width, and 2.3 mm height facilitates compact PCB designs where space is critical.

This device is ideal for use in transient suppression applications in power supply circuits, consumer electronics, and communication equipment to prevent damage from electrostatic discharges and voltage surges.

600 W peak pulse power dissipation for robust transient voltage protection. Bi-directional single element design for versatile application. Compact 2-pin DO-214 surface mount package for space efficiency. Wide operating temperature range from -65°C to 150°C allows deployment in harsh conditions.

Glass passivated junction ensures fast response and device reliability over time. Suited for industrial, automotive, laboratory, and electronic equipment protection. Manufactured in China under quality standards with RoHS compliance.

Explore the broad range of Wurth Elektronik electronic components in the EnvMart catalogue for reliable semiconductor and discrete component solutions.
