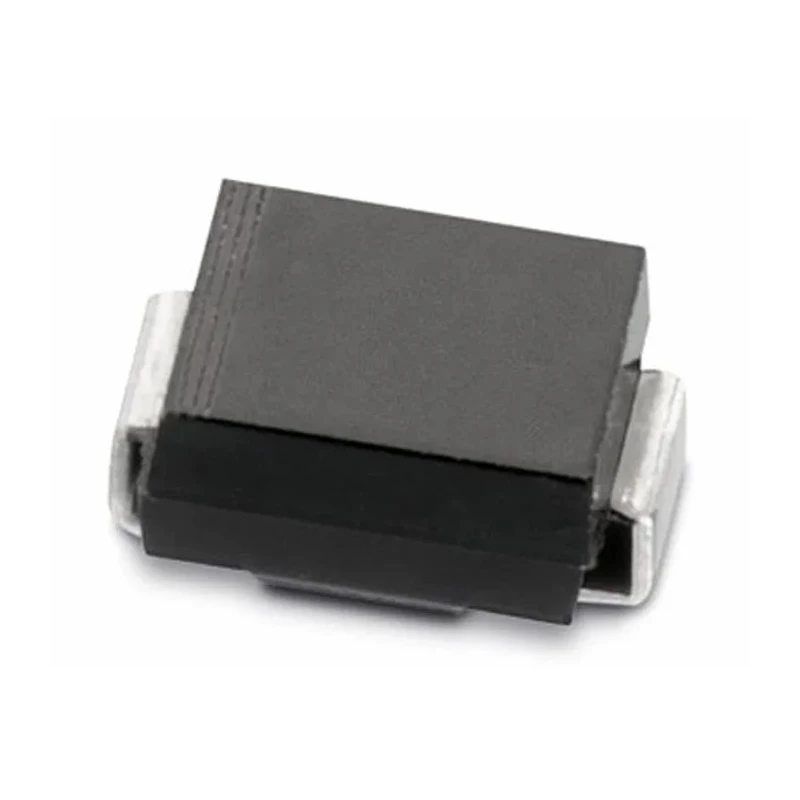

Wurth Elektronik 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 824500261
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.14mm |
| Length | 4.24mm |
| Width | 2.67mm |
| Mount Type | Surface |
| Series | WE-TVSP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 42.1V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 30.4V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 40A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Uni-directional single diode configuration for efficient voltage spike protection.
- Minimum breakdown voltage of 30.4 V ensures effective clamping during transients.
- Fast response time with glass passivated junction technology.
- Rated for a maximum peak pulse current of 40 A for handling high surge events.
- Compact DO-214 package with dimensions 4.24 mm (L) × 2.67 mm (W) × 2.14 mm (H) for easy PCB mounting.
- Wide operating temperature range from -65°C to 150°C for harsh environmental conditions.
- Low maximum reverse leakage current of 1 µA to minimize power loss.
- Designed for surface mounting applications in industrial electronics and power circuits.
Product Description
Wurth Elektronik model 824500261 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits from transient voltage spikes. It features a peak pulse power dissipation rating of 400 W, making it suitable for robust industrial and automotive applications where high surge currents may occur.
This surface mount device comes in a compact DO-214 package with a 2-pin configuration. It offers a minimum breakdown voltage of 30.4 V and a clamping voltage of 42.1 V, ensuring effective suppression of voltage transients to safe levels. The diode is glass passivated to provide fast response times and enhanced reliability.
The device is rated for a maximum peak pulse current of 40 A, allowing it to handle large transient surges without degradation. It operates over a wide temperature range from -65°C to 150°C, making it ideal for harsh environments. Leakage current is minimal at 1 µA, contributing to energy efficiency and low power dissipation during normal operation.
This TVS diode is widely used in electronic protection circuits across industrial equipment, power supplies, automotive systems, and communication devices. Its surface mount DO-214 package enables compact PCB layouts and efficient manufacturing processes.
Uni-directional design for transient voltage suppression. 400 W peak pulse power dissipation capacity. Surface mount 2-pin DO-214 package. Minimum breakdown voltage of 30.4 V and clamping voltage of 42.1 V. Wide operating temperature from -65°C to 150°C.
Low maximum reverse leakage current at 1 µA. High peak pulse current rating of 40 A. Glass passivated junction for fast response time. Part of the WE-TVSP series for reliable surge protection.
Used extensively in semiconductors protection in industrial, automotive, communications, and power management applications. This diode ensures that sensitive electronics are shielded from damaging transient voltages, enhancing equipment longevity and reliability.
Explore the full range of Wurth Elektronik TVS Diodes and other semiconductor protection devices on EnvMart for reliable electronic components tailored to high-performance industrial and electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak pulse power dissipation rating of 400 W, making it suitable for handling robust industrial and automotive applications.
The minimum breakdown voltage is 30.4 V, which ensures effective clamping during voltage transients.
The clamping voltage for this model is 42.1 V, which helps in suppressing voltage transients to safe levels.
It is rated for a maximum peak pulse current of 40 A, allowing it to manage large transient surges without degradation.
The DO-214 package dimensions are 4.24 mm in length, 2.67 mm in width, and 2.14 mm in height.
The operating temperature range is from -65°C to 150°C, making it suitable for harsh environmental conditions.
The maximum reverse leakage current is 1 µA, which helps to minimize power loss during normal operation.
This model supports surface mounting, which is ideal for compact PCB layouts.
This diode has a single element configuration, designed for uni-directional voltage suppression.
It belongs to the WE-TVSP series, which is designed for reliable surge protection in various applications.
The test current for this model is 1 mA, which is used for evaluating its performance characteristics.
This diode is widely used in electronic protection circuits across industrial equipment, power supplies, automotive systems, and communication devices.
