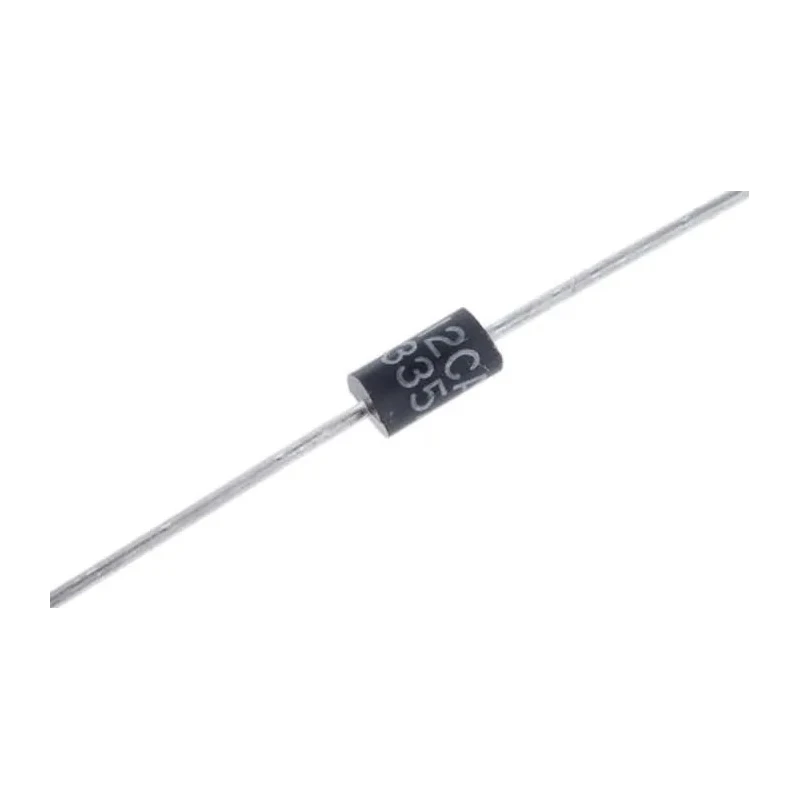

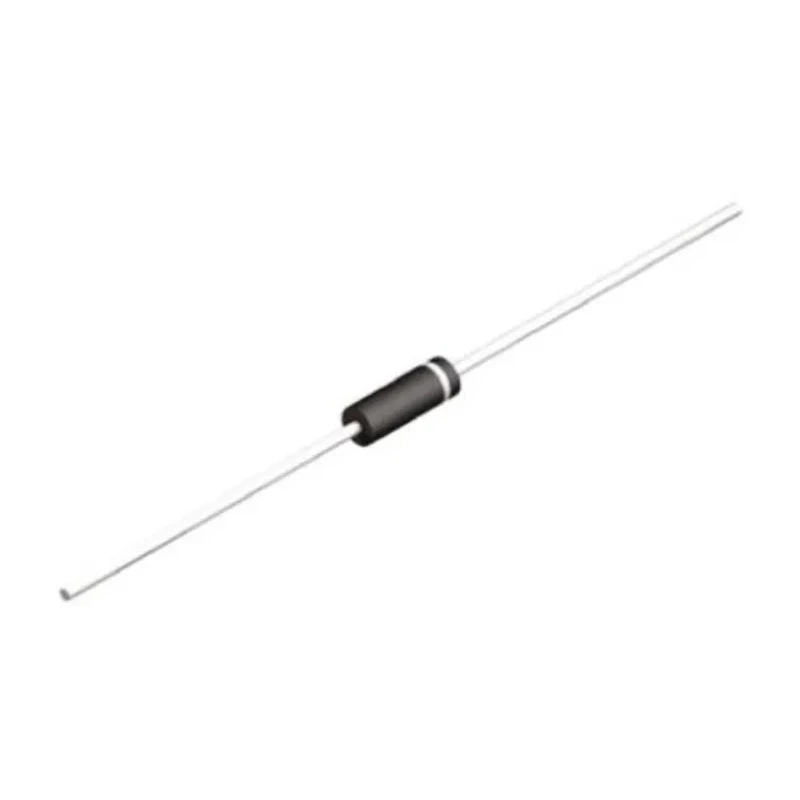

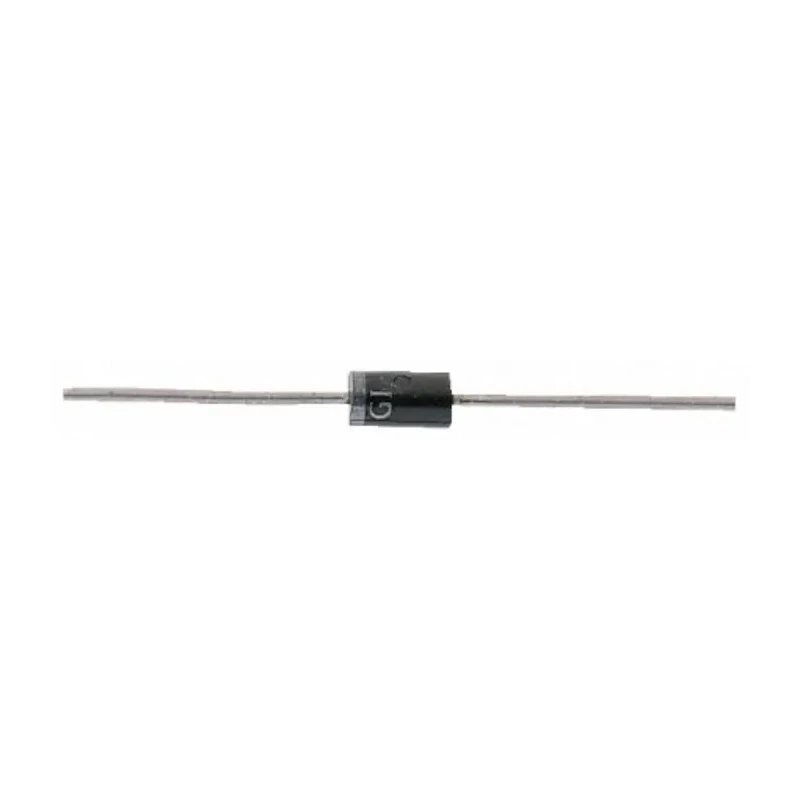

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 600 W 2-Pin DO-15 P6KE75CA

Taiwan Semiconductor P6KE75CA 1-Element Bi-Directional TVS Diode offers robust transient voltage suppression with a peak pulse power of 600 watts, making it ideal for protecting sensitive electronic components from voltage spikes and surges.

Encased in a sturdy 2-pin DO-15 through-hole package, this diode fits easily into standard circuit boards and ensures reliable mechanical stability.

Designed for industrial, automotive, and commercial electronics, it features a bi-directional single-element configuration capable of handling a maximum peak pulse current of 5.8A and a clamping voltage of 103V for effective circuit protection.

Its temperature tolerance ranges from -65°C to 175°C, allowing operation under harsh environmental conditions. The low leakage current of 5μA further supports low power loss in circuits.

The diode complies with the automotive industry standard AEC-Q101, assuring high reliability and quality performance in automotive applications and demanding industrial environments.

This diode supports a peak pulse power dissipation of 600 watts ensuring effective protection. It has a minimum breakdown voltage of 71.3 volts and a clamping voltage of 103 volts for high reliability. The device features a 2-pin DO-15 package with through hole mount type for easy installation.

Operates reliably between temperatures of -65°C to 175°C suitable for various industrial conditions. Automotive grade compliance with AEC-Q101 standard ensures high quality and durability. The diode provides a maximum reverse stand-off voltage of 64 volts and a peak pulse current of 5.8 amps.

Its axial form factor has a length of 7.62 mm and diameter of 3.6 mm for compact PCB integration. The device has a low maximum reverse leakage current of 5 microamperes enhancing efficiency. Single-element design provides bi-directional protection suited for a wide range of applications.

This electrostatic discharge protection diode is commonly used in industrial control systems, automotive electronics, telecommunications, medical devices, and power supplies to safeguard circuits against voltage spikes.

Explore more Taiwan Semiconductor products and high-quality TVS Diodes in our extensive electronic components category for various industrial and laboratory applications.
