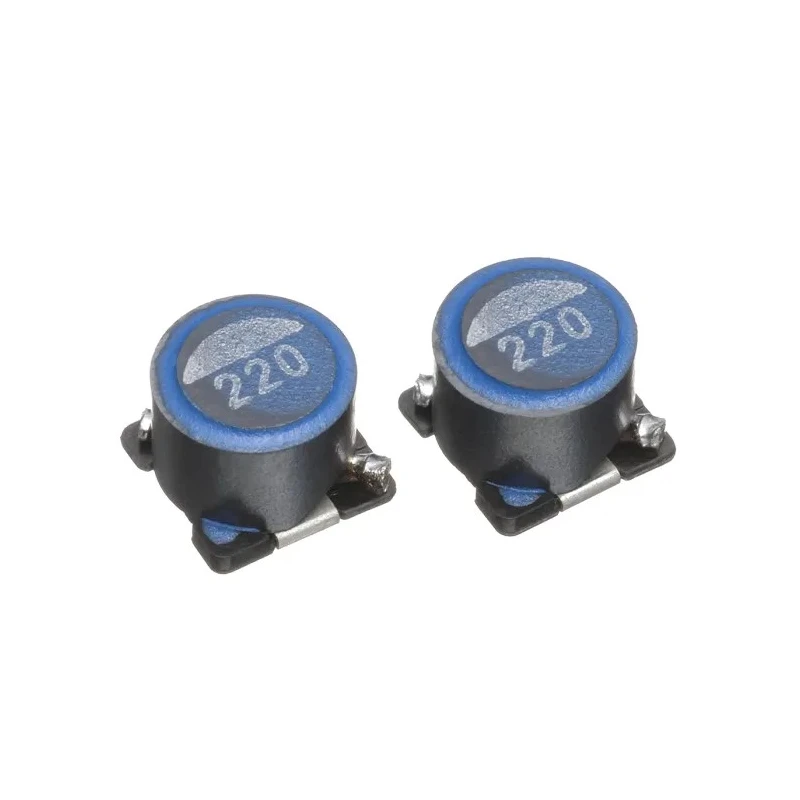

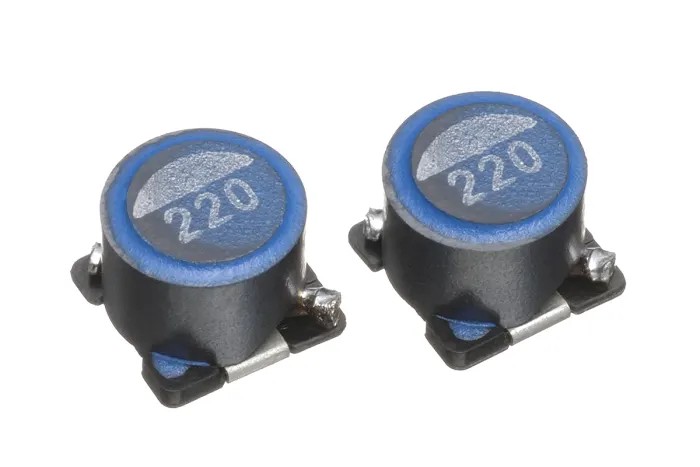

TDK SLF 12575 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 33μH ±20 % 3.4 A Idc SLF12575T-330M3R2-PF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 12.5mm |
| Brand | TDK |
| Height | 7.5mm |
| Length | 12.5mm |
| Model | SLF12575T-330M3R2-PF |
| Depth | 12.5mm |
| Packaging | Tape & Reel |
| Series | SLF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS |
| Package/Case | 12575 |
| Maximum DC Current | 3.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 39.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Shielded |
Key Features
- This inductor features a shielded wirewound construction for EMC reduction.
- It is designed as a surface mount component with a compact 12575 package size.
- Ferrite core enhances magnetic performance and efficiency.
- Maximum DC resistance is low at 39.5 mΩ to minimize power loss.
- Operates reliably between -40°C and 105°C, suitable for various electronic applications.
- Termination style is solder, ensuring secure mounting on PCBs.
- Package includes tape and reel for automatic mounting processes.
- Inductor dimensions are 12.5 mm length, 12.5 mm diameter, and 7.5 mm height.
Product Description
TDK SLF12575T-330M3R2-PF Shielded Wirewound Surface Mount Inductor with a Ferrite Core delivers an inductance of 33 μH ±20 % with a maximum DC current rating of 3.4 A, making it ideal for demanding electronic circuit applications.
This low profile surface mount inductor belongs to the SLF12575 series and features a magnetically shielded wirewound choke design, providing enhanced electromagnetic compatibility (EMC) benefits. The ferrite core ensures better magnetic permeability and stable performance under varying conditions.
Its compact dimensions of 12.5 mm length, 12.5 mm diameter, and 7.5 mm height enable use in space-constrained applications like portable telephones, personal computers, and hard disk drives.
The inductor is supplied in tape and reel packaging for streamlined insertion and soldering processes in automated manufacturing.
Engineered for robustness, it operates safely within the temperature range from -40°C up to 105°C and features a maximum DC resistance of only 39.5 mΩ to ensure minimal power loss and heat generation.
Termination style utilizes soldering to secure mounting firmly onto PCB surfaces. Fully compliant with RoHS directives, this component supports environmentally conscious design requirements. Shielded wirewound construction for EMC reduction.
Compact 12575 surface mount package. Ferrite core for enhanced magnetic performance. Low DC resistance of 39.5 mΩ. Operating temperature range from -40°C to 105°C. Tape and reel packaging for manufacturing efficiency. Solder termination style for secure PCB mounting.
RoHS compliant.
This product is widely used in the electronics industry for improving circuit performance and noise reduction in industrial, consumer electronics, computer, and telecommunications equipment.
Explore a broad range of Surface Mount Inductors and other passive components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 33μH with a tolerance of ±20%.
It has a maximum DC current rating of 3.4 A.
The inductor measures 12.5 mm in length, 12.5 mm in diameter, and 7.5 mm in height.
The maximum DC resistance is 39.5 mΩ, which helps minimize power loss.
It operates reliably between -40°C and 105°C.
The inductor features a ferrite core, which enhances its magnetic performance.
The termination style is solder, ensuring secure mounting on printed circuit boards (PCBs).
It is supplied in tape and reel packaging for efficient automated assembly processes.
Yes, this product is fully compliant with RoHS directives.
This inductor is widely used in industrial, consumer electronics, computer, and telecommunications equipment for improving circuit performance and noise reduction.
It belongs to the SLF series of inductors.
The inductor features a shielded wirewound construction, which provides enhanced electromagnetic compatibility (EMC).
