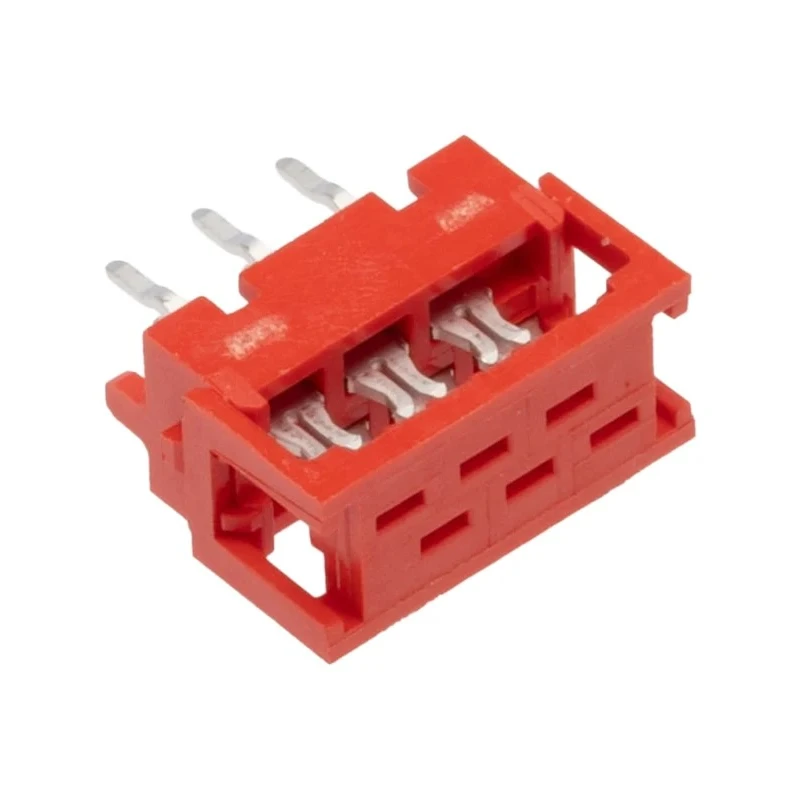

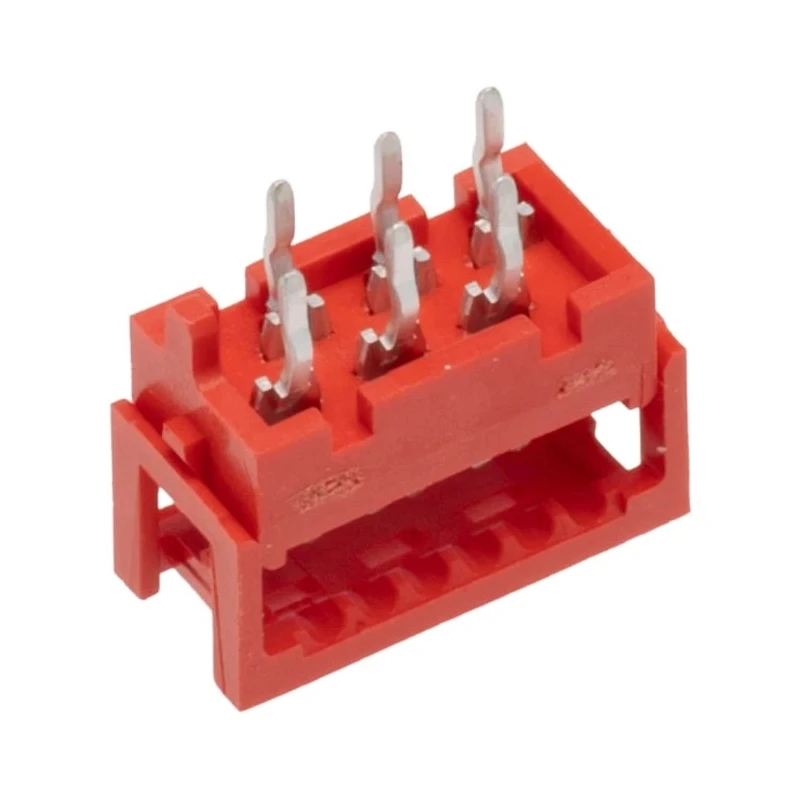

TE Connectivity 6-Way IDC Connector Male for Through Hole, 2 Row, 1.5A, 100V, Micro-MaTch Series 7-215570-6
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- This connector allows direct ribbon cable connection to PCB without mating connectors.
- It features tin over nickel contact plating for reliability.
- The unshrouded male connector is designed for through hole mounting.
- Micro-MaTch paddle board connectors offer compact, space-saving design for tight layouts.
- The connector operates reliably between -40°C to 105°C operating temperatures.
- The housing is made of durable Polyethylene Terephthalate material.
- Phosphor Bronze contact material ensures robust electrical performance.
- The connector pitch is 1.27mm with straight orientation.
Product Description
TE Connectivity 7-215570-6 is a 6-Way IDC Connector Male designed for through hole mounting with 2 rows, supporting currents up to 1.5A at 100V. It belongs to the Micro-MaTch series, known for compact and space-efficient paddle board connectors.
This connector enables ribbon cable to directly connect to printed circuit boards (PCBs) without requiring separate mating connectors. Featuring IDC contacts with tin over nickel plating, it ensures reliable and corrosion-resistant electrical contact.
The connector utilizes an unshrouded male design with kinked legs that secure the connector firmly to the PCB, enhanced by board stand offs for mechanical stability. Its housing is manufactured from durable Polyethylene Terephthalate (PET) material, while phosphor bronze contacts offer excellent conductivity and durability.
Engineered to operate reliably within a temperature range of -40°C to 105°C, the connector's 1.27mm pitch and straight orientation are well-suited for compact installations in industrial, automotive, robotics, and control unit applications.
Common applications include production and material handling equipment, robots and motors, central heating units, automotive dashboards, navigation and audio systems, set top boxes, and base stations requiring dependable wire-to-board and ribbon cable interconnections.
This connector allows direct ribbon cable connection to PCB without mating connectors. It features tin over nickel contact plating for reliability. The unshrouded male connector is designed for through hole mounting. Micro-MaTch paddle board connectors offer compact, space-saving design for tight layouts.
The connector operates reliably between -40°C to 105°C operating temperatures. The housing is made of durable Polyethylene Terephthalate material. Phosphor Bronze contact material ensures robust electrical performance. The connector pitch is 1.27mm with straight orientation.
Kinked legs provide secure retention to PCB along with board stand offs. Ideal for production equipment, robotics, automotive electronics, and control systems. Explore more TE Connectivity IDC Connectors and related electronics components at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 1.5A.
It operates reliably within a temperature range of -40°C to 105°C.
This model is designed for through hole mounting.
The pitch size of this connector is 1.27mm.
The housing is made of Polyethylene Terephthalate, and the contact material is phosphor bronze.
This connector features 6 contacts.
It features tin over nickel contact plating for enhanced reliability.
The orientation of this connector is straight.
This connector is unshrouded, allowing for direct ribbon cable connection to PCBs.
It is suitable for applications in production equipment, robotics, automotive electronics, and control systems.
The country of origin for this connector is Germany.
This connector uses solder termination type.
