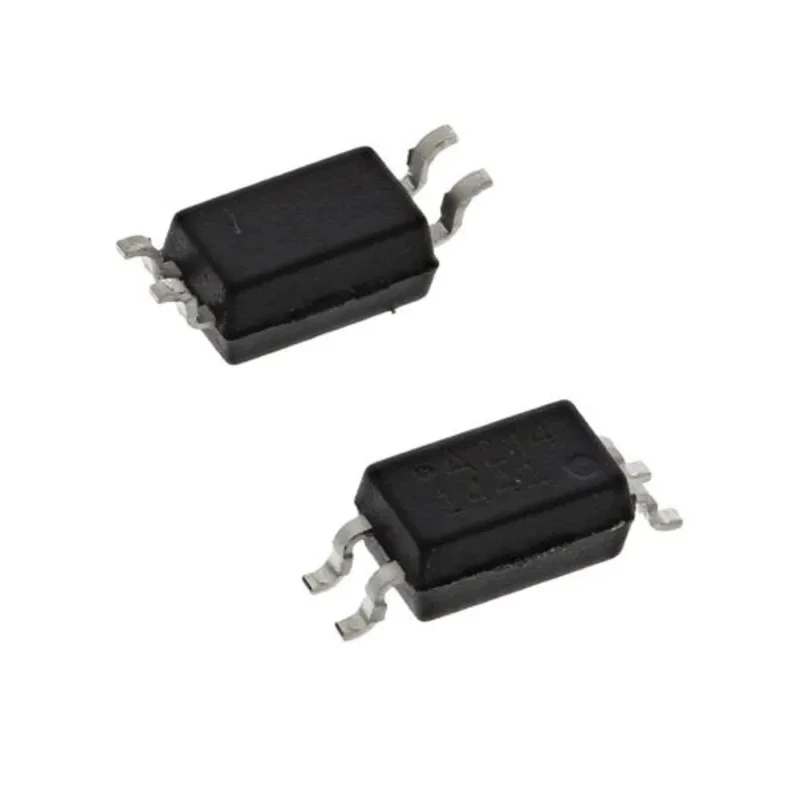

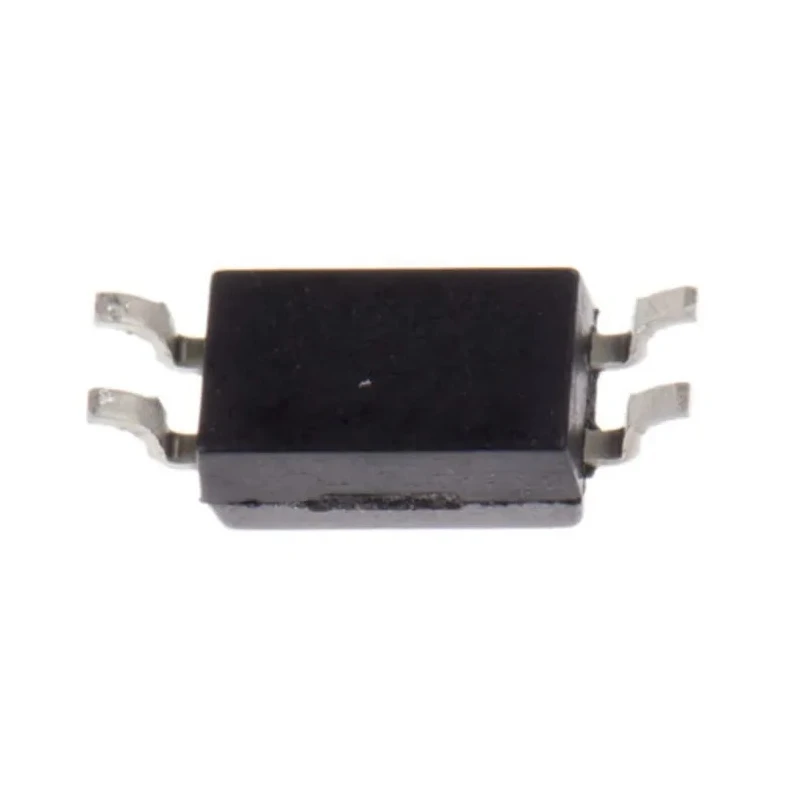

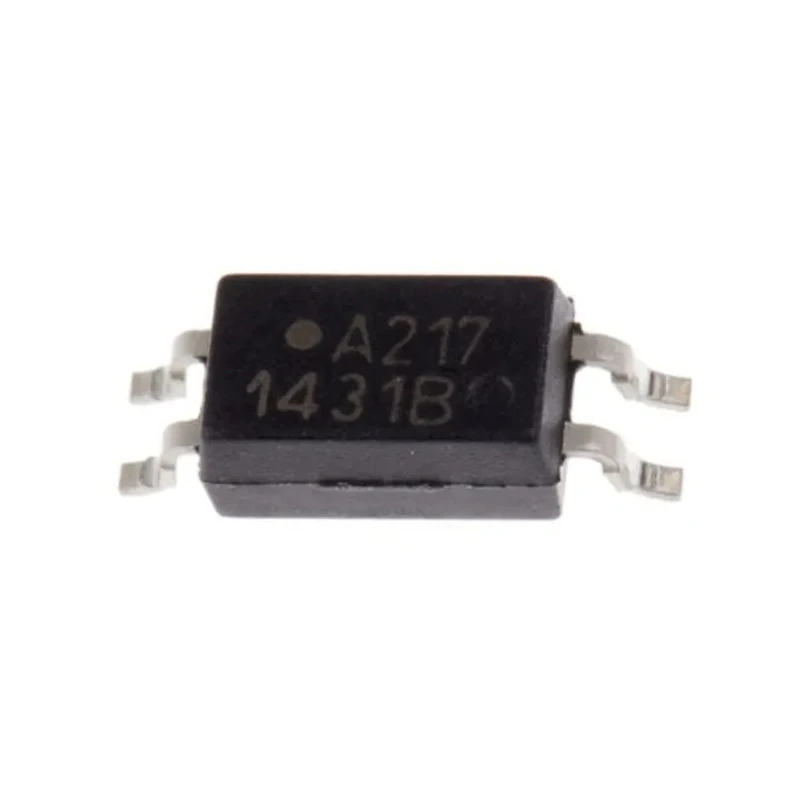

Broadcom DC Input Phototransistor Optocoupler Surface Mount 4-Pin SO ACPL-217-50DE

Broadcom ACPL-217-50DE is a high-performance DC Input Phototransistor Optocoupler with a surface mount design in a 4-pin SO package. It is built to provide electrical isolation and transfer signals via a phototransistor output, making it ideal for various industrial and commercial electronics applications.

The device supports a maximum forward voltage of 1.4V and can handle a DC input current up to 50mA, making it suitable for precise input/output control in power sequencing and interface circuits.

It features excellent isolation voltage capability of 3000 Vrms, allowing safe electrical separation between input and output sections in circuits, enhancing system reliability and safety.

Its operational temperature range of -55°C to 110°C ensures functionality in harsh environments, including automotive and industrial settings. The wide current transfer ratio from 50% to 600% enables efficient signal amplification and responsiveness.

The typical fall time of 3μs provides fast switching speeds required for contemporary electronic designs. This optocoupler complies with internationally recognized standards including UL, IEC/EN/DIN EN 60747-5-2, and CSA certifications, affirming its adherence to strict performance and safety criteria.

Packaged in tape and reel format, it is optimized for automated PCB assembly, aiding efficient manufacturing processes. The device also meets the stringent AEC-Q100 automotive qualification for robust performance in vehicles.

Applications for this optocoupler include industrial machines, automotive electronics, power management systems, and electronic control units, providing vital isolation and signal transfer functions.

Choose Broadcom ACPL-217-50DE for reliable, high-speed, and safe optocoupler performance. Explore our range of optoelectronic components at EnvMart to find compatible and complementary devices for your project.

Offers a maximum forward voltage of 1.4 volts for efficient input operation. Supports a maximum input current of 50 milliamps for reliable switching. Features a high isolation voltage rating of 3000 Vrms providing excellent electrical isolation.

Operates within a temperature range from -55°C to 110°C ensuring durability. Includes a current transfer ratio ranging from 50% minimum to 600% maximum for signal amplification. Typical fall time is 3 microseconds, enabling fast switching capabilities.

Compliant with UL, IEC/EN/DIN EN 60747-5-2, and CSA standards, guaranteeing quality and safety. Packaged on tape and reel suitable for automated assembly processes. Qualified to automotive standard AEC-Q100 for high reliability in automotive applications.

Manufactured in China, ensuring consistent production quality. Browse EnvMart for more electronics components including Optocouplers and phototransistors by Broadcom and other leading brands.
