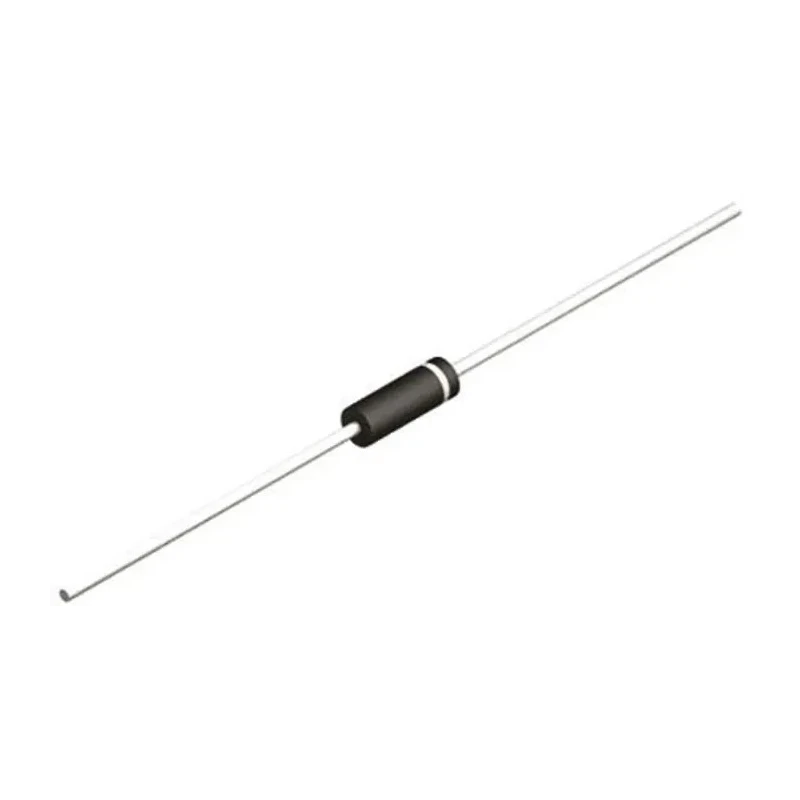

Vishay Uni-Directional TVS Diode 2-Pin 1500 W Through Hole 105 V Breakdown Voltage 1.5KE110A-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE110A-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 152V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 105V |
| Maximum Reverse Stand-off Voltage Vwm | 94V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.9A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode features a 105 V minimum breakdown voltage and a maximum reverse stand-off voltage of 94 V.
- It has a clamping voltage of 152 V ensuring effective protection.
- This single-element diode supports a maximum peak pulse current of 9.9 A and ESD protection.
- Operating temperature ranges from -55°C to 175°C suitable for various industrial environments.
- The component measures 9.5 mm length and 5.3 mm diameter, ideal for through-hole mounting.
- Complies with AEC-Q101 automotive standard for reliability.
- Maximum reverse leakage current is minimal at 1 μA, enhancing stability.
Product Description
Vishay 1.5KE110A-E3/54 is a high-performance Uni-Directional Transient Voltage Suppressor (TVS) diode engineered to protect electronic circuits from voltage spikes by clamping excess transient voltages. Rated at a peak pulse power dissipation of 1500 W, this diode is designed for through-hole mounting with a 2-pin axial package, offering simplicity in PCB assembly.
With a minimum breakdown voltage of 105 V and a maximum reverse stand-off voltage of 94 V, it effectively safeguards sensitive electronics from electrostatic discharge (ESD) and inductive switching surges. Its clamping voltage of 152 V ensures that voltage spikes are limited promptly to prevent component damage.
Constructed as a single-element diode, it supports a maximum peak pulse current of 9.9 A and features a minimal maximum reverse leakage current of 1 μA for improved energy efficiency. The diode operates reliably across a broad temperature range from -55°C to 175°C, suitable for demanding industrial and automotive applications adhering to the AEC-Q101 standard.
Compact in size, the device measures 9.5 mm in length and 5.3 mm in diameter, making it feasible for various PCB layouts requiring through-hole components. It is manufactured in China, providing consistent quality and reliability.
The diode delivers 1500 W transient voltage suppression capacity. Uni-directional configuration protects circuits in one polarity. Compliant with automotive standard AEC-Q101. Operates efficiently from -55°C to 175°C ambient temperature.
Minimal reverse leakage current of 1 μA enhances stability. Compact axial package facilitates easy PCB mounting. Protects against voltage transients and ESD events.
This Vishay 1.5KE110A-E3/54 TVS diode is ideal for industrial electronics, automotive systems, power supplies, and communication equipment requiring robust transient voltage protection. Browse EnvMart for similar Semiconductors and TVS Diodes suitable for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 1.5KE110A-E3/54 TVS diode has a peak pulse power dissipation of 1500 W.
This model features a minimum breakdown voltage of 105 V.
The maximum reverse stand-off voltage for this diode is 94 V.
The clamping voltage of this diode is 152 V.
It supports a maximum peak pulse current of 9.9 A.
The operating temperature range for this unit is from -55°C to 175°C.
The maximum reverse leakage current is minimal at 1 μA.
This diode measures 9.5 mm in length and has a diameter of 5.3 mm.
It is designed for through-hole mounting.
This model complies with the AEC-Q101 automotive standard.
This diode is constructed as a single-element diode.
The diode features a uni-directional configuration.
