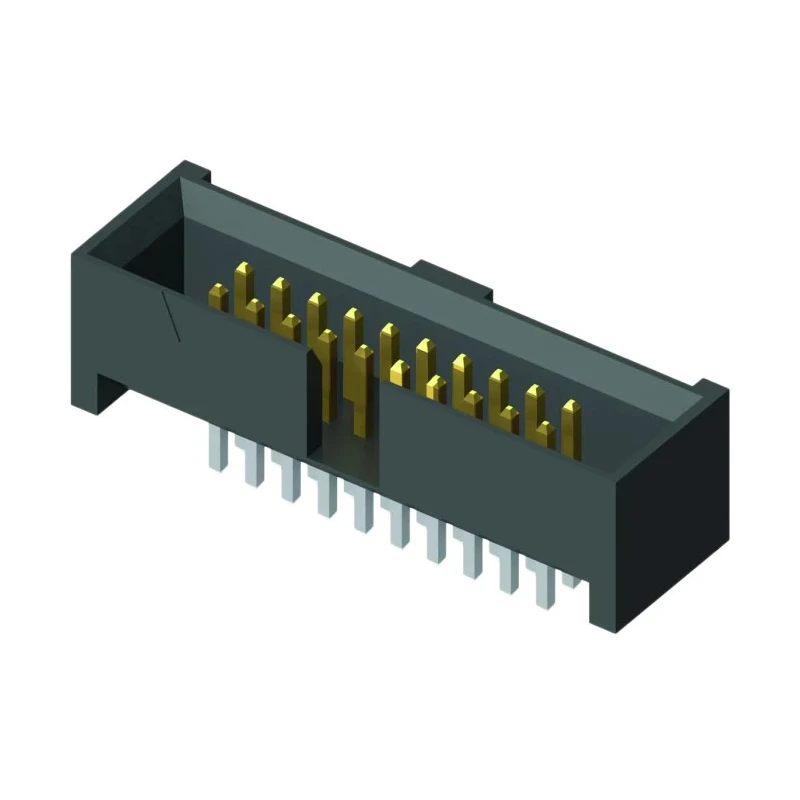

Samtec SHF Series Straight Through Hole Shrouded PCB Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Gold Plated SHF-120-01-L-D-TH

Free Delivery in India | Lowest Global Shipping Charges

Samtec SHF Series Straight Through Hole Shrouded PCB Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Gold Plated SHF-120-01-L-D-TH

Name: Samtec SHF Series Straight Through Hole Shrouded PCB Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Gold Plated SHF-120-01-L-D-TH
Brand: Samtec
SKU: 135989
Price: 6.21 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	3A
Model	SHF-120-01-L-D-TH
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	SHF
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	1.91mm
Mating Pin Length	3.05mm

Key Features

Constructed with a liquid crystal polymer housing for durability.
Phosphor bronze contacts plated with gold ensure reliable electrical performance.
Supports a continuous current rating of 3A.
Operates reliably in temperatures from -55°C to 125°C.
Designed for wire-to-board connections with solder termination.
Features a polarizing notch for accurate mating.
Tail pin length measures 1.91 mm and mating pin length 3.05 mm.
Ideal for industrial and electronic circuit applications requiring robust connector solutions.

Product Description

Samtec SHF-120-01-L-D-TH is a premium shrouded PCB header designed for through hole mounting with a pitch of 1.27 mm and 40 male contacts arranged in 2 rows. The housing is made of liquid crystal polymer, providing excellent mechanical strength and performance in demanding environments.

This connector features gold-plated phosphor bronze contacts to guarantee high conductivity and corrosion resistance, supporting a maximum current rating of 3 amperes. It is rated for operating temperatures from minus 55 degrees Celsius up to 125 degrees Celsius, making it suitable for a wide range of industrial electronics applications.

The design includes a polarizing notch to ensure correct alignment when mating with complementary connectors. With solder termination and a straight orientation, it is intended for reliable wire-to-board connections in commercial, industrial, and electronic equipment manufacturing.

The tail pin length is 1.91 mm and the mating pin length is 3.05 mm, offering secure physical and electrical contact. This board-to-wire connector is suitable for use in rigorous environments like automation systems, instrumentation, and telecommunications equipment.

Constructed with a durable liquid crystal polymer housing. Gold-plated phosphor bronze contacts for enhanced conductivity. Rated for 3A current carrying capacity. Wide operating temperature range from -55°C to 125°C. Straight through hole mount with solder termination.

Polarizing notch for accurate connector mating. Reliable solution for industrial and electronic applications.

Choose Samtec PCB Headers for precision, quality, and durability in your PCB connectivity requirements. Explore the collection of Samtec connectors and related components on EnvMart for enhanced electronics system design solutions.
