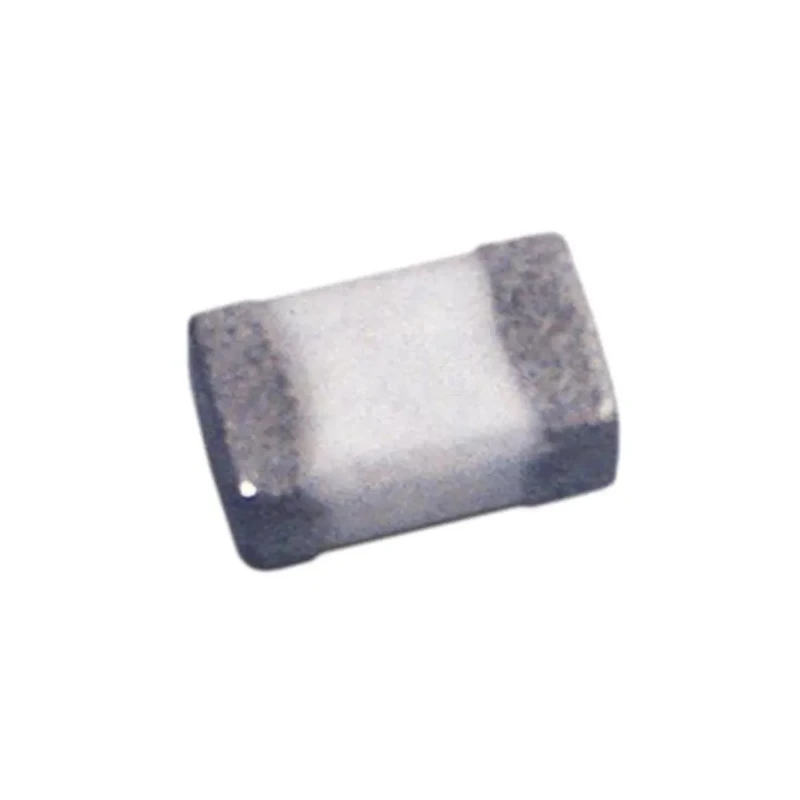

Wurth Elektronik 0603 Shielded Multilayer Surface Mount Inductor with Ceramic Core 2.7 nH ±0.05% 744786022

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 0603 Shielded Multilayer Surface Mount Inductor with Ceramic Core 2.7 nH ±0.05% 744786022

Name: Wurth Elektronik 0603 Shielded Multilayer Surface Mount Inductor with Ceramic Core 2.7 nH ±0.05% 744786022
Brand: Wurth Elektronik
SKU: 135540
Price: 0.07 USD
Availability: InStock



Category Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Height	0.8mm
Length	1.6mm
Depth	0.8mm
Packaging	Tape & Reel
Series	WE-MK
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Core Material	Ceramic
Inductance	2.7nH
Package/Case	0603
Maximum DC Current	600mA
Pin Count	2
Maximum DC Resistance	200mΩ
Inductance Tolerance	±0.05 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	8.6GHz
Minimum Quality Factor	8
Inductor Construction	Multilayer

Key Features

Compact 0603 package with 1.6 mm length, 0.8 mm height, and 0.8 mm depth dimensions.
Designed for high frequency applications including tuners, transponders, and HF amplifiers.
Maximum DC current rating of 600 mA and maximum DC resistance of 200 mΩ.
Shielded multilayer construction for stable performance and reduced EMI.
Operates reliably between -40°C and 120°C temperature range.
Maximum self-resonant frequency of 8.6 GHz supports wide frequency range use.
Minimum quality factor of 8 ensures efficient inductive properties.
Surface mount termination style with tape and reel packaging for automated assembly.

Product Description

Wurth Elektronik model 744786022 is a 0603 size shielded multilayer surface mount inductor with a ceramic core, offering an inductance of 2.7 nH with a tight tolerance of ±0.05% suitable for precise high-frequency circuit applications.

This multilayer ceramic inductor is optimized for high-frequency circuits such as tuners, transponders, HF amplifiers, pagers, oscillators, laptops, PCMCIA cards, Bluetooth, wireless LAN, and filter circuits where stable inductance and minimal EMI are critical.

The 0603 package measures 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, making it suitable for compact surface mount designs. It supports a maximum DC current of 600 mA and has a maximum DC resistance of 200 mΩ, ensuring reliable current handling and low losses.

Designed with shielding and multilayer construction on a ceramic substrate, this inductor ensures high stability and efficiency with a minimum quality factor of 8. It operates over a broad temperature range from -40°C to 120°C, enabling resilience in demanding environments.

The maximum self-resonant frequency is 8.6 GHz, supporting operation in advanced HF applications. The device comes packaged in tape and reel format for seamless integration with automated manufacturing processes.

Manufactured in Taiwan, Province Of China, this type is RoHS compliant and does not conform to automotive standards. It employs surface mount termination style and features a moulded multilayer inductor construction for durability and performance.

Compact 0603 size with exacting inductance and tolerance. High-frequency circuit compatibility and shielding built-in. Stable inductance over temperature with quality factor of at least 8. Low DC resistance and rated for 600 mA maximum current.

Ceramic core construction with multilayer design. Surface mount termination with tape and reel packaging. This inductor is widely applicable in industrial electronics, telecommunications, wireless communication devices, and advanced electronic modules engineering at EnvMart.
