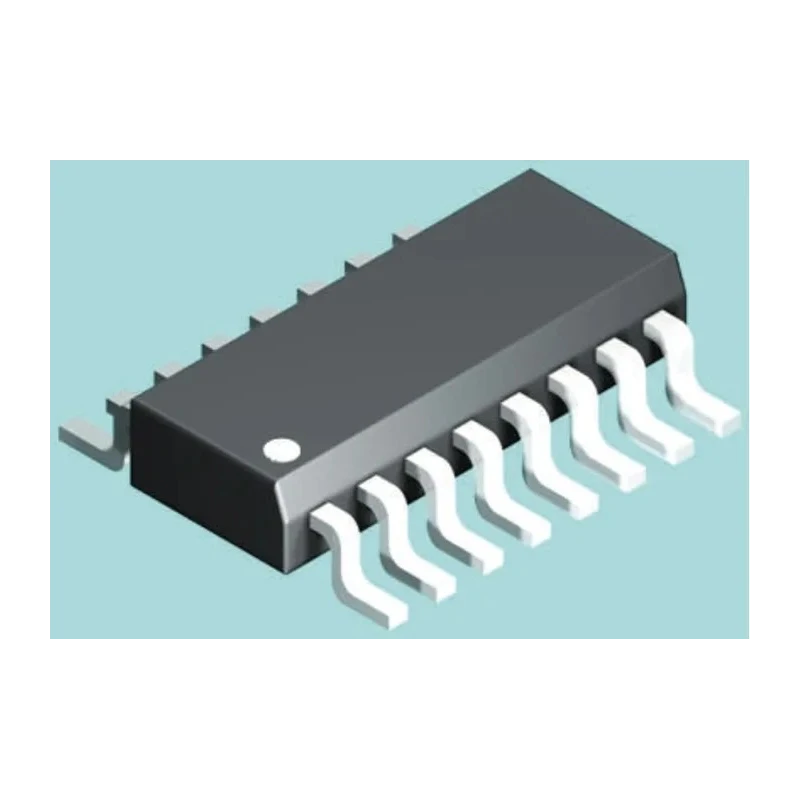

STMicroelectronics 16-Pin SOIC 2-Channel Voltage Mode PWM Controller, 300 kHz, 40V, 14mA Supply Current SG3524P

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 16-Pin SOIC 2-Channel Voltage Mode PWM Controller, 300 kHz, 40V, 14mA Supply Current SG3524P

Name: STMicroelectronics 16-Pin SOIC 2-Channel Voltage Mode PWM Controller, 300 kHz, 40V, 14mA Supply Current SG3524P
Brand: STMicroelectronics
SKU: 219360
Price: 2.54 USD
Availability: InStock



Category PWM Controller Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.65mm
Length	10mm
Model	SG3524P
Width	4mm
Mount Type	Surface
Maximum Duty Cycle	45%
Output Current	100mA
Topology	Push Pull
Maximum Operating Temperature	70°C
Package Type	SOIC
Minimum Operating Temperature	0°C
Number of outputs	2
Output Voltage	18V
Maximum Switching Frequency	300kHz
Pin Count	16
Maximum Supply Voltage	40V
Minimum Supply Voltage	8V
Supply Current	14mA
PWM Controller Type	Voltage Mode

Key Features

Operates with a supply current of 14mA ensuring low power consumption.
Supports a maximum supply voltage of 40V and minimum supply voltage of 8V.
Features 16 pins in a SOIC package suitable for surface mounting.
Designed with a push-pull topology and maximum duty cycle of 45% for efficient switching.
Operates within a temperature range of 0°C to 70°C.
Provides two output channels supporting up to 100mA output current each.
Well suited for isolated and non-isolated AC-DC and DC-DC switch mode power supplies.

Product Description

STMicroelectronics SG3524P is a 16-pin surface-mount PWM controller designed for voltage mode pulse width modulation applications. Operating at a maximum frequency of 300 kHz and output voltage of 18V, it supports efficient power management in isolated and non-isolated AC-DC and DC-DC converter topologies. This device is built with a push-pull topology delivering reliable switching performance, making it suitable for switch mode power supplies (SMPS).

Featuring a low 14mA supply current and capable of handling maximum supply voltages up to 40V, the SG3524P supports a minimum supply of 8V with two output channels that can each deliver up to 100mA output current. Its compact SOIC package measures 10mm in length, 4mm in width, and 1.65mm in height, making it ideal for surface mounting on modern PCBs.

The PWM controller operates within an ambient temperature range from 0°C up to 70°C, ensuring robust performance in various industrial and commercial environments. It incorporates built-in protections for enhanced reliability and supports popular SMPS topologies including fly-back, forward, and quasi-resonant configurations. The device is suitable for applications in power supplies, industrial machines, and electronic components requiring precise pulse width modulation control.

Supports isolated and non-isolated AC-DC and DC-DC power supplies. Voltage mode PWM controller with push-pull topology. Maximum switching frequency of 300kHz for high-speed operation. Low supply current of 14mA minimizes power loss.

Wide supply voltage range from 8V to 40V. Two output channels with up to 100mA current each. Compact 16-pin SOIC surface-mount package. Operating temperature range of 0°C to 70°C ensures versatility.

This STMicroelectronics SG3524P PWM Controller is ideal for use in industrial electronics, power management systems, and other commercial applications requiring precise control of power switching. Browse the Electronics & Electricals category at EnvMart for more power management integrated circuits and PWM Controllers.
