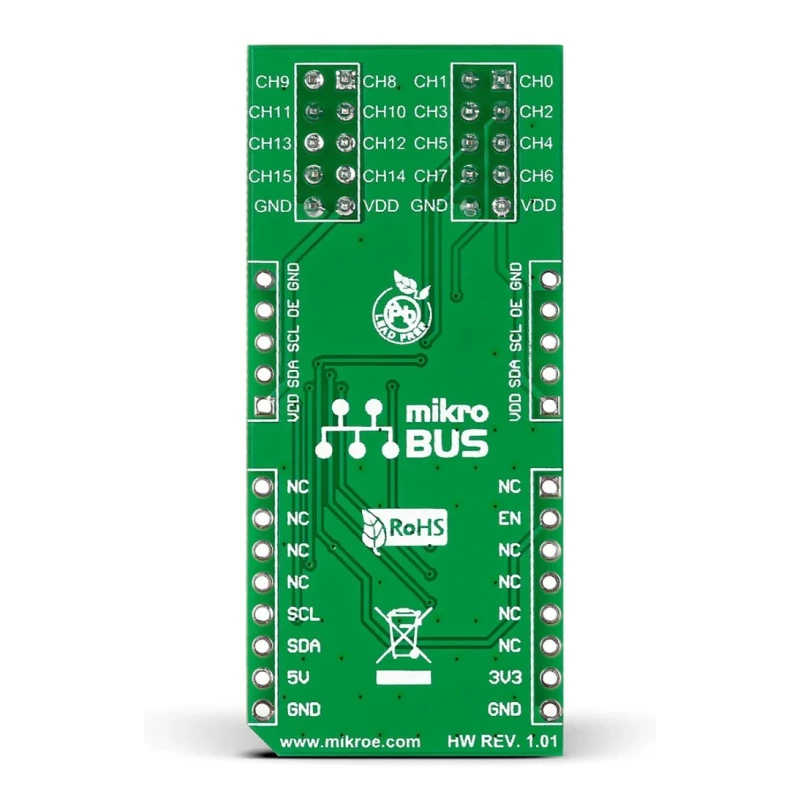

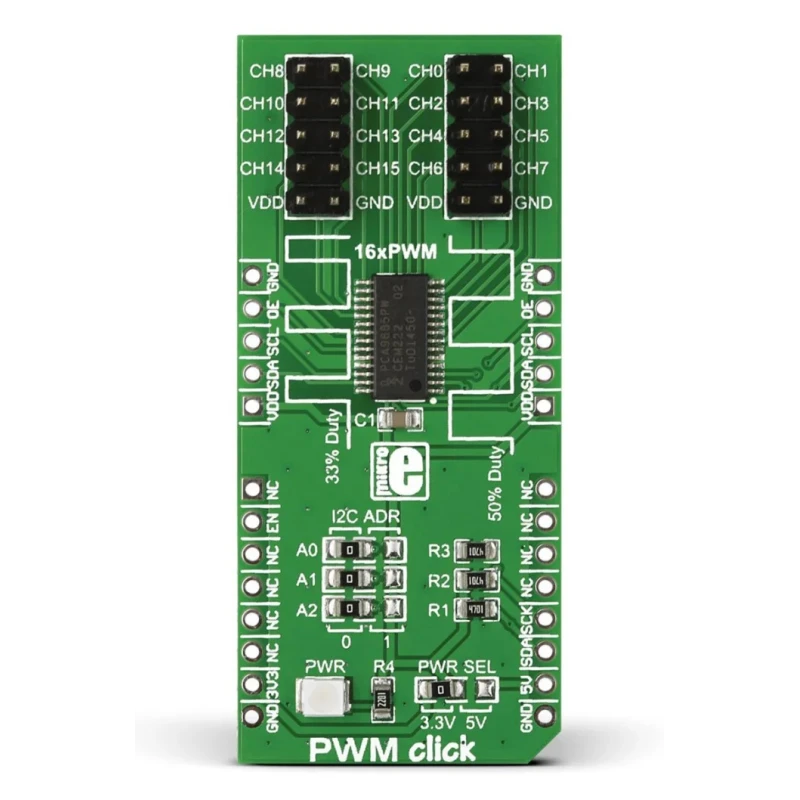

MikroElektronika Power Management Development Kit PWM Click PWM Controller for PCA9685PW, 16-Channel 12-bit MIKROE-1898

Free Delivery in India | Lowest Global Shipping Charges

MikroElektronika Power Management Development Kit PWM Click PWM Controller for PCA9685PW, 16-Channel 12-bit MIKROE-1898

Name: MikroElektronika Power Management Development Kit PWM Click PWM Controller for PCA9685PW, 16-Channel 12-bit MIKROE-1898
Brand: MikroElektronika
SKU: 204645
Price: 28.79 USD
Availability: InStock



Category PWM Controller Brand MikroElektronika Condition New

Specifications

Country of Origin	India
Brand	MikroElektronika
Model	MIKROE-1898
For Use With	Robots, Servo Motors, LED Drivers
Kit Classification	PWM Click
Featured Device	PCA9685PW
Kit Name	PWM Click

Key Features

Features the NXP PCA9685 16-channel, 12-bit PWM controller.
Supports Fm+ (Fast-mode Plus) I²C bus interface for high-speed communication.
Allows up to seven PWM Click boards on a single I²C bus with configurable hardware addresses.
Programmable frequency range from 24 Hz to 1526 Hz for versatile PWM applications.
Adjustable PWM duty cycle from 0% to 100% for precise motor and LED control.
Compatible with 3.3 V or 5 V power supply on mikroBUS socket for flexible integration.

Product Description

MikroElektronika MIKROE-1898 PWM Click is a Power Management Development Kit designed for controlling up to sixteen PWM outputs through a single I²C bus interface, ideal for use in robotics, servo motor control, and LED driver applications. It incorporates the NXP PCA9685, a 16-channel, 12-bit resolution PWM Fm+ I²C bus LED controller. This makes it highly suitable for precise and reliable power management tasks within embedded systems and development boards.

The board offers a programmable frequency range spanning 24 Hz to 1526 Hz, allowing developers to tailor PWM signal frequency for various load requirements including motors or LEDs. Duty cycles are adjustable from 0% to 100%, facilitating fine-grained performance control.

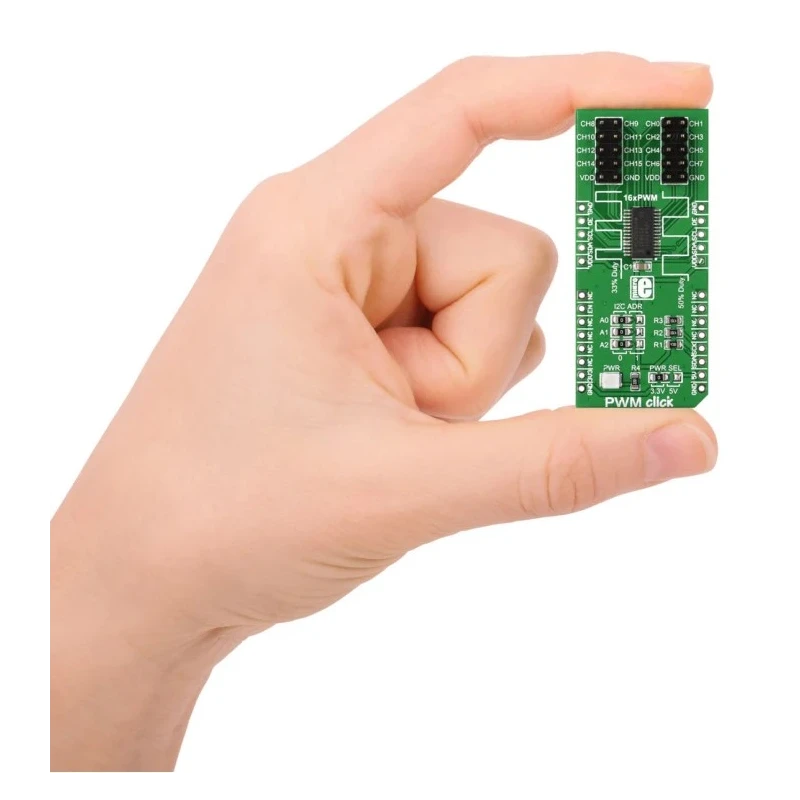

Powered by either 3.3 V or 5 V supplied via the mikroBUS socket, this board offers compatibility with a wide range of embedded controller platforms. With compact dimensions of 57.15 x 25.4 mm, the PWM Click easily integrates into compact robotic, automation, and industrial control setups.

Contains NXP PCA9685 16-channel 12-bit PWM Controller supporting Fm+ I²C communication. Supports up to seven PWM Click boards on a single I²C bus for expanded control. Wide programmable PWM frequency range from 24 Hz to 1526 Hz for versatile applications.

Adjustable PWM duty cycle between 0% and 100% for precise load control. Operates with 3.3 V or 5 V power supply compatible with mikroBUS standards. Small form factor dimension of 57.15 x 25.4 mm for easy embedding.

This product suits industrial automation, robotics, laboratory devices, and embedded development applications requiring multiple PWM channel management through a compact and efficient interface board. The PWM Click supports seamlessly programming and control of servo motors, LED drivers, and robotic actuators with high accuracy and flexibility.
