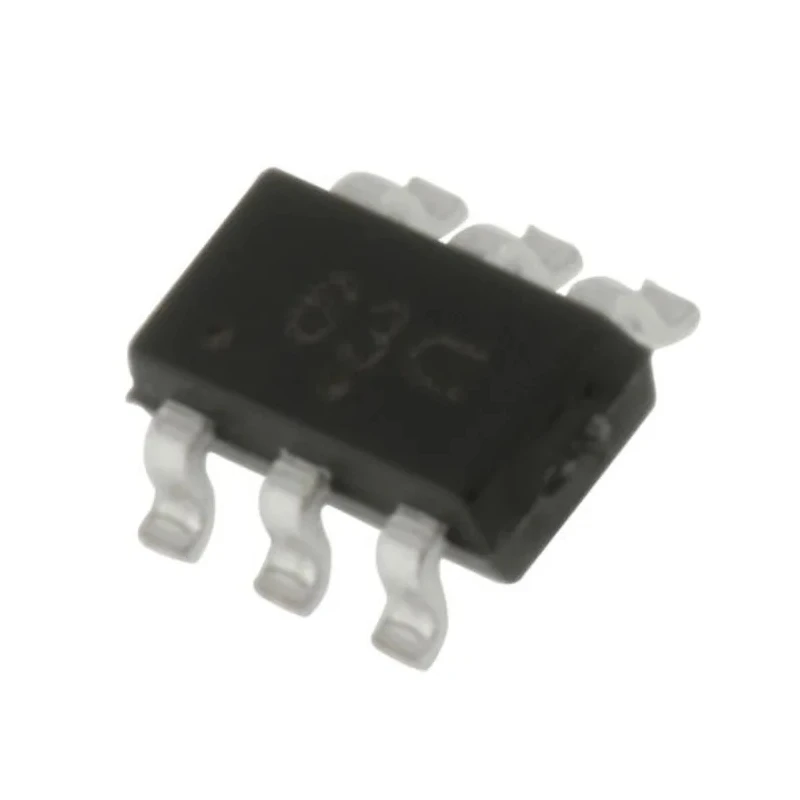

onsemi 5-Channel Current Mode PWM Controller 6-Pin TSOP, 65 kHz Switching Frequency, 8.9-18V Supply NCP12510ASN65T1G

The onsemi NCP12510ASN65T1G is a sophisticated 5-channel current mode PWM controller engineered for flyback power supply topologies. It operates at a fixed frequency of 65 kHz to deliver efficient and stable power conversion in electronic systems.

Featuring a low supply current of only 500 μA, this surface-mount device (TSOP package with 6 pins) minimizes power wastage while providing robust control over multiple output channels. The output voltage ranges around 14.8 V with output currents up to 300 mA per channel, making it suitable for various power management needs.

Designed with a temperature tolerance up to 150°C, the NCP12510ASN65T1G ensures reliability in demanding industrial and consumer electronic environments. The device supports a supply voltage range from 8.9V minimum to 18V maximum, with a maximum duty cycle of 84%, providing flexibility for power regulation in diverse applications.

Compact dimensions of 3.1 mm length, 1.7 mm width, and 1 mm height make it ideal for dense PCB layouts. It is commonly deployed in AC-DC off-line controllers and synchronous rectification controllers to enhance power supply efficiency and performance.

This PWM controller offers a maximum switching frequency of 65 kHz for efficient power management. The device features a low supply current of 500 μA, optimizing power consumption. It supports output currents up to 300 mA across its 5 outputs.

The package type is TSOP with 6 pins, suitable for surface mounting on PCBs. Designed to operate at temperatures up to 150°C, ensuring reliable performance under harsh conditions. The controller supports a maximum duty cycle of 84%, enhancing power regulation flexibility.

This current mode controller is ideal for AC-DC off-line and synchronous rectification control applications. Compact physical dimensions of 3.1 mm length, 1.7 mm width, and 1 mm height allow integration into space-constrained designs.

This PWM Controller is suitable for industrial, electronics manufacturing, power management, and embedded systems applications requiring precise and efficient power conversion. Explore more power management solutions in the Electronics & Electricals category at EnvMart.
