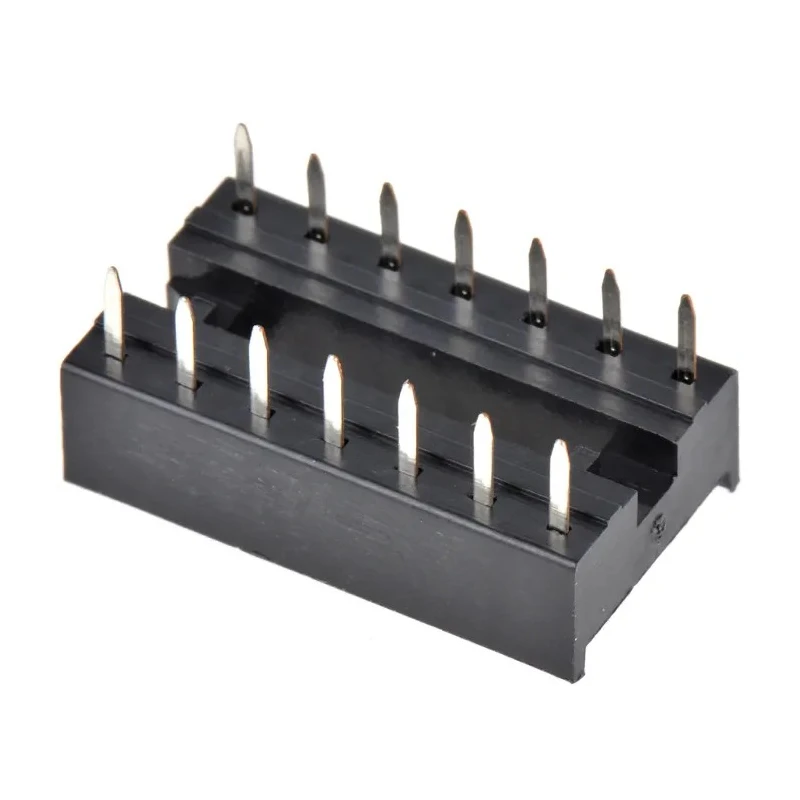

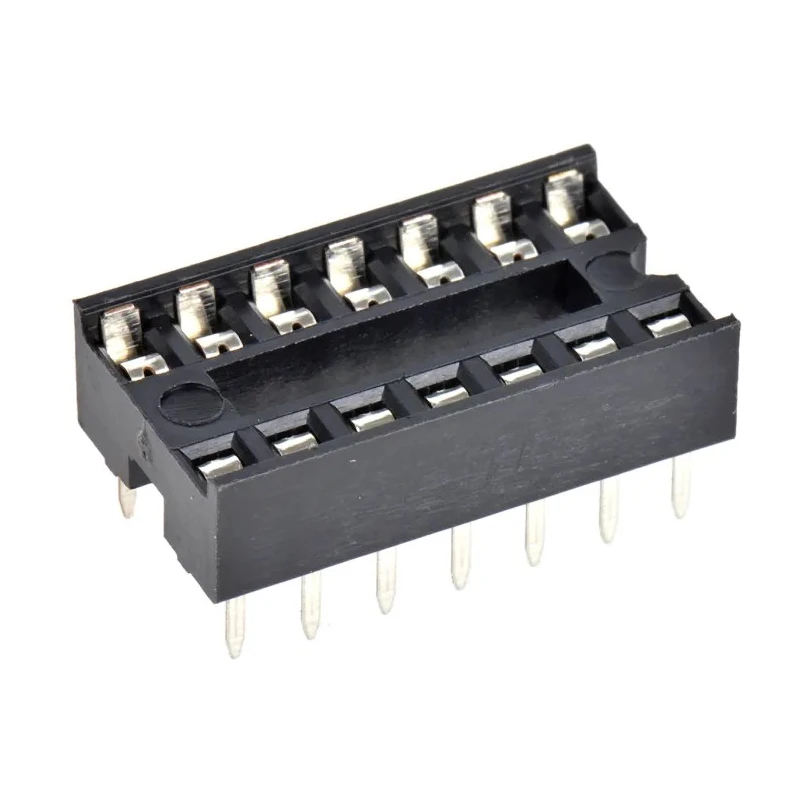

TE Connectivity 2.54 mm Pitch Straight 14 Way Through Hole Standard Pin Ladder DIL Socket 1A 1-2199298-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250, 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Frame Type | Ladder |
| Length | 17.78mm |
| Depth | 5.1mm |
| Width | 10mm |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polybutylene Terephthalate, Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Pin Type | Standard |
| Row Width | 7.62mm |
| IC,socket,DIL,stamped pin,low profile,14 way,14375Brand | TE Connectivity |
| TE Connectivity 2.54mm Pitch 14 Way, Through Hole IC Dip Socket, 1ABrand | TE Connectivity |
Key Features
- Features 14 contacts with 2.54 mm pitch for precise PCB mounting.
- Supports through hole mount type with a straight orientation.
- Current rating of 1 ampere suitable for low power applications.
- Constructed with phosphor bronze contacts plated with tin over nickel.
- Housing made of glass filled polybutylene terephthalate thermoplastic ensuring durability.
- Operational temperature range from -40°C to 105°C for versatility in environments.
- Frame type is ladder with a row width of 7.62 mm and length of 17.78 mm.
- Designed with a true closed bottom to prevent solder and flux penetration.
Product Description
TE Connectivity 1-2199298-3 is a high-quality 2.54 mm pitch straight 14 way, through hole standard pin ladder DIL socket rated at 1 ampere. Designed for use in printed circuit board assemblies, this connector features stamped and formed dual wiping contacts for dependable electrical performance.
The connector is made with phosphor bronze contact material plated with tin over nickel to ensure excellent conductivity and corrosion resistance, housed within a rugged black thermoplastic glass filled polybutylene terephthalate frame for structural integrity and heat resistance. It operates reliably in temperatures ranging from -40°C to 105°C.
The ladder frame style enables secure placement with a row width of 7.62 mm and an overall length of 17.78 mm, while the true closed bottom construction prevents solder or flux from wicking onto the PCB, facilitating easy cleaning and enhancing reliability in manufacturing conditions.
This standard pin ladder DIL Socket is ideal for applications in industrial electronics manufacturing, laboratory equipment, control devices, and other electronic assemblies requiring durable and precise connector solutions. It supports through hole solder termination ensuring stable mechanical and electrical connections.
Features 14 contacts with 2.54 mm pitch. Through hole mount type with straight orientation. Current rating: 1A. Contact plating: tin over nickel. Housing material: glass filled polybutylene terephthalate. Operating temperature: -40°C to 105°C.
Ladder frame type with true closed bottom design. Dimensions: width 10 mm, depth 5.1 mm, length 17.78 mm.
Country of origin is China. This product is sold new and authorized for professional industrial usage. Browse EnvMart’s wide selection of electronic components and connectors to find complementary parts and accessories for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This DIL socket has a current rating of 1 ampere, making it suitable for low power applications.
The contacts of this model are designed with a pitch size of 2.54 mm.
The contacts are made from phosphor bronze and are plated with tin over nickel for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
The dimensions of this model are 17.78 mm in length, 10 mm in width, and 5.1 mm in depth.
This socket supports through hole mounting, which ensures stable mechanical and electrical connections.
The frame type of this socket is ladder, which allows for secure placement on printed circuit boards.
This model features 14 contacts, allowing for multiple connections in electronic assemblies.
The housing is made of glass filled polybutylene terephthalate thermoplastic, providing structural integrity and heat resistance.
This socket uses solder termination, which is common for through hole connections in PCB assemblies.
Yes, this DIL socket is designed for use in industrial electronics manufacturing, laboratory equipment, and control devices.
The voltage rating for this model is 250V AC, suitable for various electronic applications.
