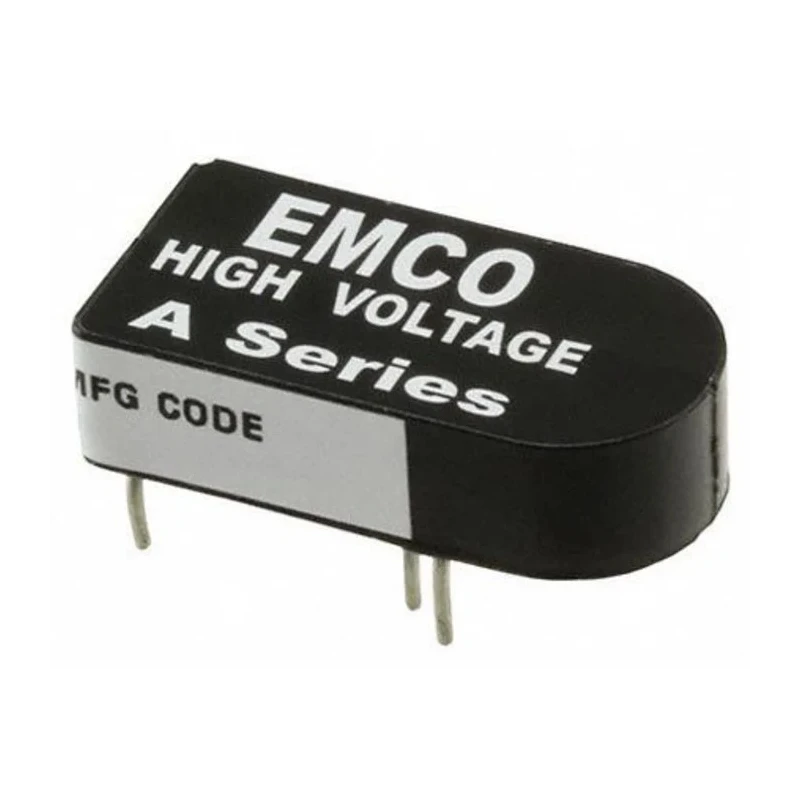

XP Power DC/DC Converter 600V DC Output, 1.67mA Output Current, 12V DC Input, Through Hole Mount, 1W Power, -25°C to A06N-12
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power A DC/DC Converter, 600V dc/ 1 |
| Brand | XP Power |
| Length | 23.37mm |
| Model | A06N-12 |
| Depth | 6.35mm |
| Gross Weight | 5.7g |
| Width | 11.43mm |
| Mount Type | Through Hole |
| Series | A |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 1862000h |
| Number of outputs | 1 |
| Ripple and Noise | 1% Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 12V dc |
| Minimum Input Voltage | 0V dc |
| Output Voltage 1 | 600V dc |
| Output Current 1 | 1.67mA |
| Isolation Voltage | 500V |
Key Features
- The converter operates with a 12V DC input and provides a 600V DC output with 1.67mA current.
- It features galvanic input to output isolation up to 500V for enhanced safety and interference reduction.
- The product supports a wide operating temperature range from -25°C to 75°C suitable for demanding environments.
- Its miniature design with dimensions 23.37mm length, 11.43mm width, and 6.35mm depth allows efficient PCB integration.
- No external components are required, ensuring simplified circuit design and reduced assembly time.
- It provides low output/input capacitance and low leakage current on the control pin for stable operation.
- Fault protection includes at least one minute of short circuit protection without damage.
- The unit is ideal for industrial and laboratory applications including avalanche photodiodes, capacitor charging, and photomultiplier tube systems.
Product Description
XP Power A06N-12 DC/DC Converter delivers a high voltage output of 600V DC at a low output current of 1.67mA from a 12V DC input source. This isolated converter is designed for ultra-miniature applications where space and weight constraints are critical, featuring a through-hole mounting style for easy PCB attachment.
With galvanic isolation up to 500V, the converter ensures electrical separation between input and output, suitable for sensitive instrumentation and measurement devices. Its quasi-sinewave oscillator design, along with input/output proportional control, offers reliable and efficient power conversion.
The unit operates within a temperature range of -25°C to 75°C and is rated for 1 watt maximum output power, making it ideal for low power industrial, scientific, and medical devices. The converter provides low output and input capacitance and features low leakage current on the control pin, enhancing system stability.
Built-in protection includes a minimum of one minute short circuit protection and no minimum load requirement, simplifying integration into diverse designs. The compact dimensions of 23.37mm length, 11.43mm width, and 6.35mm depth with a weight of 5.7 grams contribute to its suitability in space-limited assemblies.
Typical applications include powering avalanche photodiodes, capacitor charging circuits, electrophoresis setups, photomultiplier tubes, piezoelectric devices, mass spectrometry instruments, and sustaining ion pumps.
The converter is RoHS compliant and carries UL recognition, ensuring adherence to quality and safety standards. Its construction and performance specifications are optimized for use in industrial, laboratory, and medical equipment requiring isolated high voltage supplies.
The product is manufactured in the United States and supplied as new, ready for immediate use in various precision electrical and electronic power conversion applications. For more specialized industrial converters and power supplies from XP Power, customers can explore a broad range of DC/DC and AC/DC converter solutions available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The A06N-12 DC/DC converter provides an output voltage of 600V DC.
It requires a 12V DC input voltage for operation.
The maximum output power of this unit is 1 watt.
The output current rating for the A06N-12 is 1.67mA.
The converter features an isolation voltage of up to 500V.
This model has dimensions of 23.37mm in length, 11.43mm in width, and 6.35mm in depth.
The operating temperature range is from -25°C to 75°C.
No external components are required, simplifying circuit design and assembly.
It features a through-hole mounting style for easy PCB attachment.
It is suitable for applications such as powering avalanche photodiodes, capacitor charging circuits, and photomultiplier tubes.
It includes built-in short circuit protection for at least one minute without damage.
The weight of this converter is 5.7 grams.
