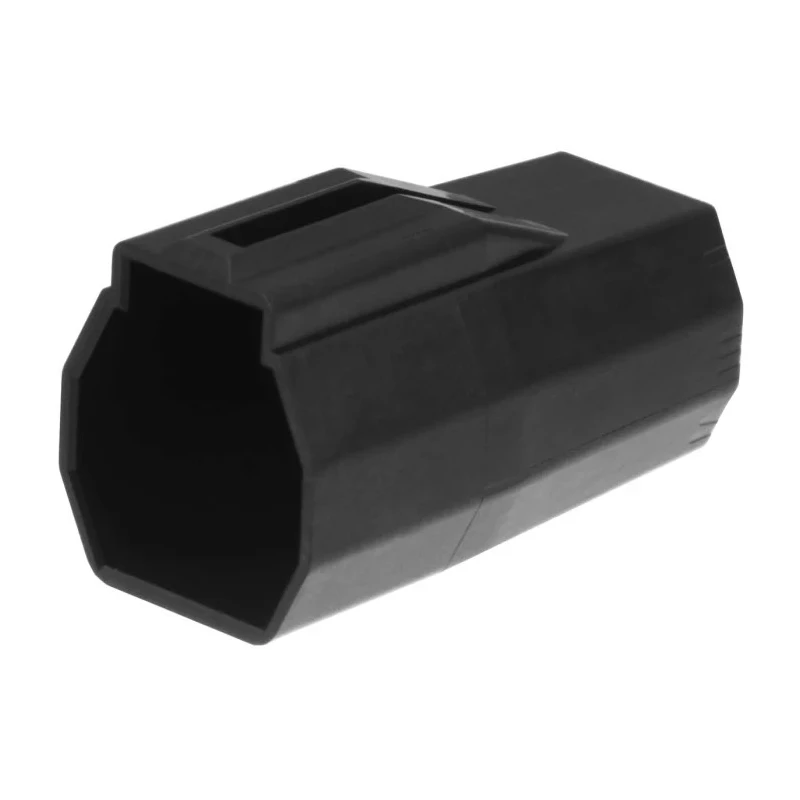

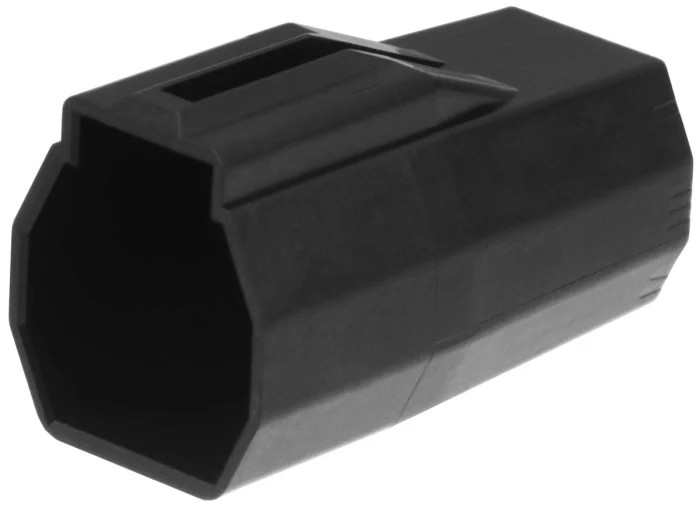

Hirose DF62 Male Connector Housing 2.2 mm Pitch 7 Way 3 Row Straight DF62
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 16.05mm |
| Model | DF62 |
| Width | 8.2mm |
| Mount Type | Panel |
| Housing Material | Polybutylene Terephthalate |
| Series | DF62 |
| Number of Rows | 3 |
| Pitch | 2.2mm |
| For Use With | DF62B Connector Housing |
| Number of Contacts | 7 |
| Connector Gender | Male |
Key Features
- This male connector housing has 7 contacts arranged in 3 rows for efficient wire management.
- The connector pitch of 2.2 mm supports fine wiring applications.
- Its panel mount type and straight orientation facilitate easy installation.
- Made of durable polybutylene terephthalate housing material ensuring electrical insulation and mechanical strength.
- The connector features a secure positive locking mechanism with tactile click and a check window for locking status.
- Suitable for medical devices, robotic machinery, consumer appliances, and office equipment.
- Manufactured in Japan maintaining high quality standards.
- Requires compatible DF62B Connector Housing and crimp plug contacts sold separately.
Product Description
Hirose DF62 Male Connector Housing DF62 model is a 7 way, 3 row straight connector housing with 2.2 mm pitch designed for wire-to-wire connections in compact and confined environments.
This connector housing is made from polybutylene terephthalate, providing excellent insulation and mechanical durability. It features a slim, smooth design that reduces tangling and clutter in wiring harnesses.
The housing incorporates a positive locking mechanism that includes a tactile click and a visual check window ensuring secure mating and preventing accidental disconnection. No exposed metal parts prevent electrical arcing risks within metal conduits.
The connector length is approximately 16.05 mm with a width of 8.2 mm, making it suitable for applications where space constraints exist.
The DF62 series connector housing is a panel mount type with a straight orientation designed to mate with DF62B connector housings and requires separate crimp plug contacts. The crimp plug contacts for use with this connector housing must be purchased separately.
Applications include use in advanced robotic machinery, medical devices requiring reliable and compact electrical connections, consumer electronic appliances, and office equipment where exact connection and mechanical reliability are critical.
This 7 contact male connector housing provides organized wire routing and maintenance ease. Polybutylene terephthalate construction ensures durability and electrical safety. Positive locking mechanism provides tactile and visual mating confirmation.
Compact dimensions allow use in small and space-challenged assembly designs. Manufactured in Japan to meet strict quality and reliability standards. Compatible with DF62B series connectors and requires separate crimp contacts.
Ideal for industrial, medical, consumer, and office electrical equipment wiring. For more connector housing and wire housing options, explore the Electronics Components category at EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.2 mm, designed for fine wiring applications.
This model features 7 contacts arranged in 3 rows for efficient wire management.
The connector housing has a length of approximately 16.05 mm and a width of 8.2 mm.
It is made from polybutylene terephthalate, which provides electrical insulation and mechanical strength.
This model is a panel mount type, facilitating easy installation in various applications.
Yes, it is designed to mate with DF62B connector housings and requires separate crimp plug contacts.
It is suitable for use in medical devices, robotic machinery, consumer appliances, and office equipment.
It includes a positive locking mechanism with a tactile click and a visual check window for locking status.
The orientation of this connector housing is straight, which aids in installation.
The design prevents electrical arcing risks by having no exposed metal parts, enhancing safety in metal conduits.
It is manufactured in Japan, adhering to high quality standards.
The 7 contact design and compact dimensions help organize wire routing and reduce clutter in wiring harnesses.
