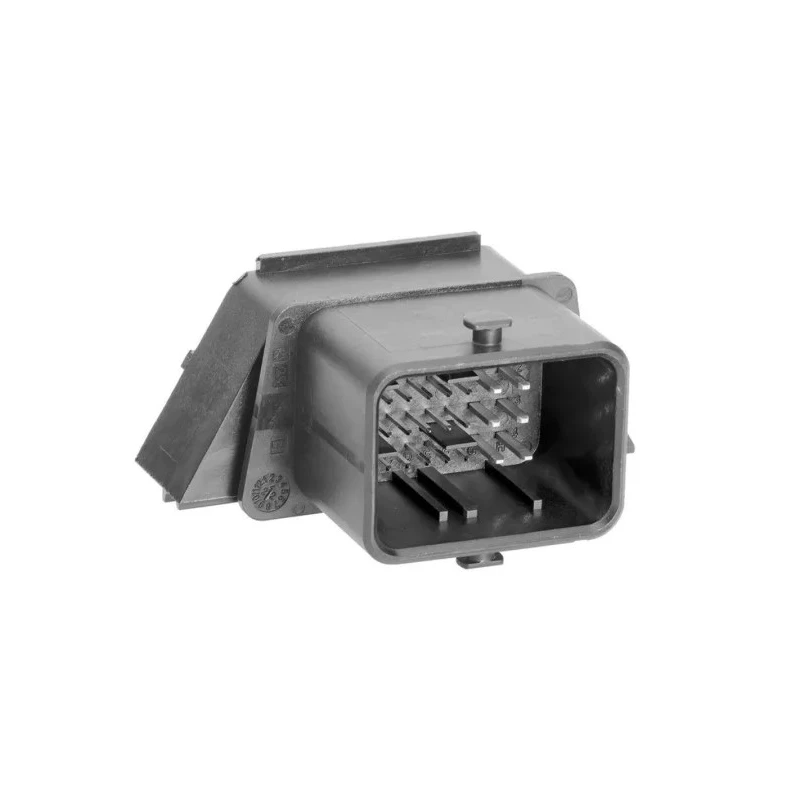

Molex CMC Automotive Connector Male Black Through Hole 32 Way Solder Termination 12A 14V DC 64334-0100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Colour | Black |
| Current | 12A |
| Height | 24.9mm |
| Depth | 49mm |
| Width | 59.91mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | CMC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Standards/Approvals | EU RoHS, REACH SVHC |
| Contact Plating | Tin |
| Number of Contacts | 32 |
Key Features
- Polarised design prevents mating with mismatched parts.
- Colour keying simplifies and speeds up installation process.
- Low-resistance, tin-plated copper alloy contacts ensure optimal conductivity.
- Nylon resin housing resists wear and tolerates temperatures from -40°C to 105°C.
- Supports 32 circuits for high packing density applications.
- Solder termination offers strong wire attachment, suitable for vibration-prone environments.
- Durable and reusable header compatible with up to 20 matings.
- Ideal for automotive manufacturing, marine industry, and agricultural equipment.
Product Description
Molex 64334-0100 is a high-quality CMC series automotive connector designed for reliable male connections with 32-way solder termination and through-hole mount.
The black polybutylene terephthalate housing offers excellent durability and resistance to harsh environmental conditions including temperatures ranging between -40°C and 105°C. It features four rows of tin-plated copper alloy contacts engineered for low electrical resistance and superior conductivity, supporting up to 12 amps of current at 14 volts DC.
The polarised, colour-keyed design ensures correct mating alignment and prevents installation errors, facilitating quick and reliable assembly in automotive, marine, and agricultural equipment manufacturing industries.
This connector's solder termination type assures firm wire attachment even under vibration and mechanical stress, making it suitable for engine control units and other critical automotive electrical systems.
The male header is designed for through-hole mounting on printed circuit boards with dimensions of approximately 24.9mm height, 49mm depth, and 59.91mm width, enabling seamless integration into existing assemblies.
Polarised mating prevents incorrect connector coupling. Colour keying aids fast and accurate installation. Tin-plated copper alloy contacts provide low resistance. Housing resists wear and extreme temperatures up to 105°C.
Supports 32 circuits for complex wiring harnesses. Solder termination secures wires effectively under vibration. Up to 20 mating cycles ensure reusability. Applicable in automotive manufacturing, marine and agriculture. This Molex CMC automotive connector is compliant with EU RoHS and REACH SVHC standards, assuring environmental safety and regulatory compliance.
Explore Molex products on EnvMart for reliable Automotive Connectors and electronic components suitable for demanding industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex CMC automotive connector has a maximum current rating of 12A at 14V DC.
This model has dimensions of approximately 24.9mm in height, 49mm in depth, and 59.91mm in width.
The nylon resin housing of this connector can tolerate temperatures ranging from -40°C to 105°C.
It supports 32 circuits, making it suitable for high packing density applications.
This connector features a solder termination type, which provides a strong wire attachment suitable for vibration-prone environments.
The contacts are made of tin-plated copper alloy, ensuring low electrical resistance and optimal conductivity.
Yes, it is compliant with EU RoHS and REACH SVHC standards, ensuring environmental safety and regulatory compliance.
This model is designed for through-hole mounting on printed circuit boards.
The male header is designed to be durable and can withstand up to 20 mating cycles.
This connector is a male type, designed for reliable male connections.
The housing is made from polybutylene terephthalate, which offers excellent durability and resistance to harsh conditions.
It is ideal for applications in automotive manufacturing, marine industry, and agricultural equipment.
