| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQW18AN3N6C00D |
| Depth | 0.8mm |
| Packaging | Paper Tape |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Non-Magnetic Core |
| Inductance | 3.6nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 850mA |
| Pin Count | 2 |
| Maximum DC Resistance | 59mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

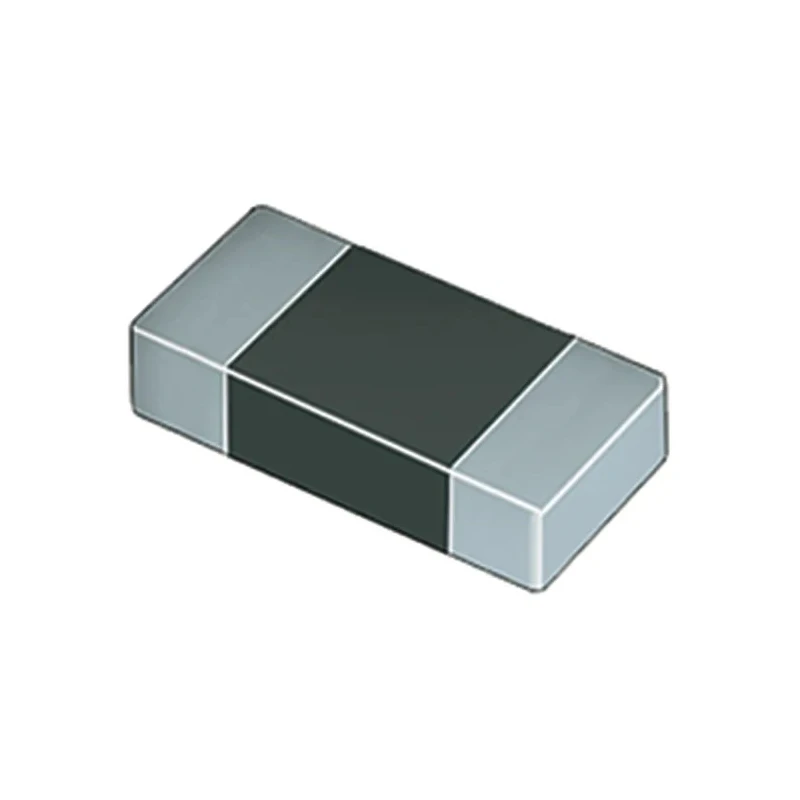

Murata LQW18AN3N6C00D is a high-quality 0603 wirewound surface mount inductor featuring a shielded design and a non-magnetic core. It provides a precise inductance of 3.6 nH with a tight tolerance of ±0.2 nH, ideal for high frequency applications including Bluetooth, GSM, and WLAN wireless telecommunications circuits.
The product's compact 0603 package measures 1.6 mm length, 0.8 mm height, and 0.8 mm depth, making it suitable for densely packed PCBs. Its wirewound construction yields a minimum quality factor of 25 and ensures low DC resistance of 59 mΩ, optimizing performance in VHF and UHF frequency ranges.
Designed to handle a maximum DC current of 850 mA, this inductor can reliably operate up to 125°C. The shielded casing helps reduce electromagnetic interference, enhancing circuit stability. Murata’s LQW Series inductors are molded and terminated with solder for secure surface mount assembly. The product is RoHS compliant and supplied in paper tape packaging for automated manufacturing processes.
Wirewound construction ensures high Q factor and low resistance. Shielded design minimizes electromagnetic interference. Compact 0603 package with precise dimensions. Tight inductance tolerance for high frequency accuracy.
High operating temperature capability for reliability. Suitable for Bluetooth, GSM, WLAN wireless circuits. RoHS compliant and lead-free for environmental safety. Packaging on paper tape facilitates automated insertion.
This surface mount inductor is tailored for demanding industrial, telecommunications, and electronic manufacturing applications requiring small size and high performance. Browse the Electronics Components category for more Surface Mount Inductors and wirewound solutions at EnvMart.
