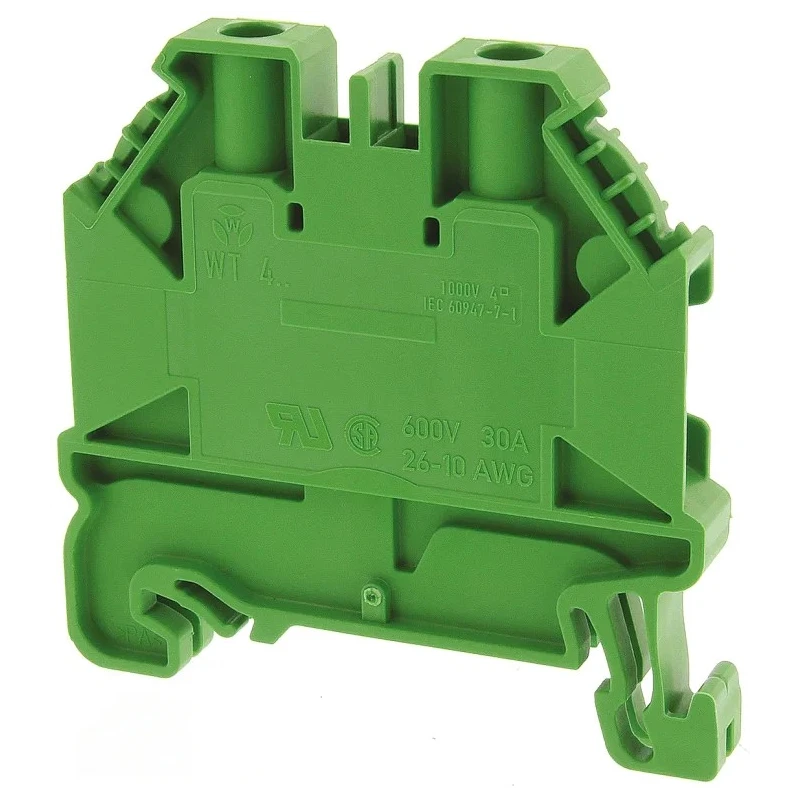

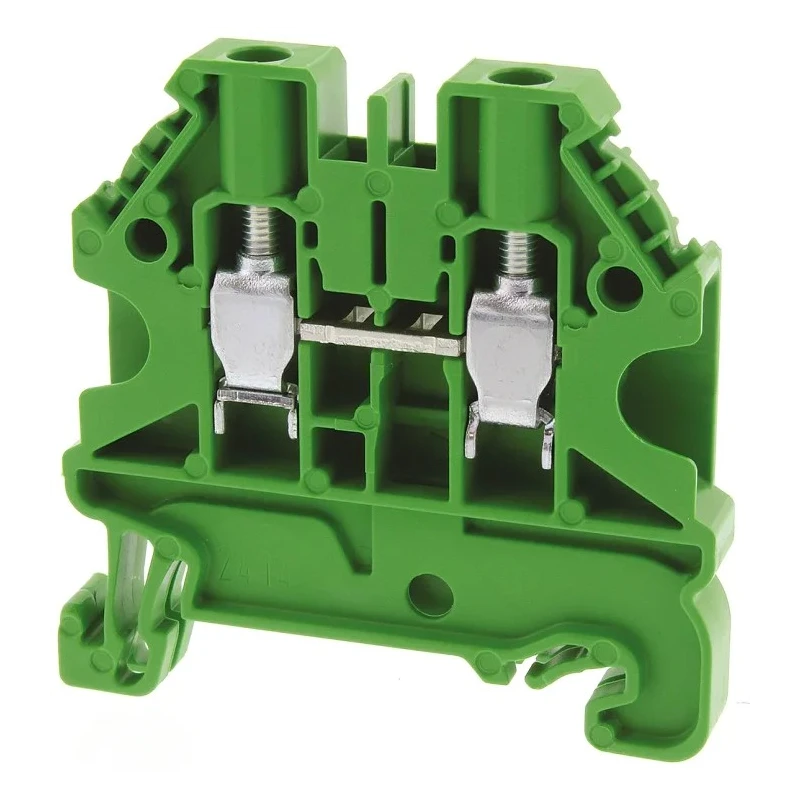

Wieland WT 4 Series Feed Through Terminal Block Green, 1-Level, 2 Positions, Screw Termination, 1kV, 32A ATEX 58.504.0055.7
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Wieland |
| Colour | Green |
| Series | WT 4 |
| Termination Type | Screw |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Minimum Operating Temperature | 120°C |
| Pitch | 6mm |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | VDE, GL, CSA |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 10, 26AWG |
| Terminal Block Current | 32A |
| Connection capacity | 2 wires, equal size, 0.14 - 2.5mm² |
Key Features
- The terminal block is designed for mounting on TS35 DIN Rail systems.
- It supports a nominal cross-section of 4mm² and wire sizes from 26 AWG to 10 AWG.
- The pitch between positions is 6mm, allowing compact wiring arrangements.
- Screw termination provides secure and reliable electrical connections.
- It is certified for hazardous areas with ATEX certification, under VDE, GL, and CSA standards.
- Operates safely within a temperature range up to 120°C.
- Supports connection capacity for 2 wires of equal size, between 0.14 mm² and 2.5 mm².
Product Description
Wieland 58.504.0055.7 WT 4 Series Feed Through Terminal Block is a high-quality green 1-level DIN Rail Terminal Block that supports 2-position screw connections. It operates at a rated voltage of 1kV and a terminal block current rating of 32A, making it suitable for robust electrical distribution systems.
This feed-through block is designed specifically for TS35 mounting rails and accommodates wire sizes ranging from 26 AWG to 10 AWG (0.14mm² to 2.5mm²). The 6mm pitch ensures a compact footprint for dense wiring applications. Screw termination type guarantees secure electrical contacts, suitable for industrial, chemical, and hazardous environments.
The terminal block supports connection of 2 wires of equal size per position, allowing efficient circuit configuration and simplifying wiring tasks. Operating temperatures up to 120°C make it suitable for use in demanding conditions. It complies with international approvals and standards including ATEX for hazardous areas, VDE, GL, and CSA certifications, ensuring safety and reliability for industrial applications.
Manufactured in Germany with precision engineering, this product is ideal for use in industrial control panels, power distribution, automation systems, and hazardous environment installations requiring reliable wire termination and feed-through capability.
The terminal block is designed for mounting on TS35 DIN Rail systems. It supports a nominal cross-section of 4mm² and wire sizes from 26 AWG to 10 AWG. The pitch between positions is 6mm, allowing compact wiring arrangements.
Screw termination provides secure and reliable electrical connections. It is certified for hazardous areas with ATEX certification, under VDE, GL, and CSA standards. Operates safely within a temperature range up to 120°C.
Supports connection capacity for 2 wires of equal size, between 0.14 mm² and 2.5 mm². Explore comprehensive solutions in DIN Rail Terminal Blocks and enhance your industrial electrical installations with Wieland quality products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 1kV, making it suitable for robust electrical distribution systems.
The terminal block has a current rating of 32A, allowing it to handle significant electrical loads.
It supports wire sizes ranging from 26 AWG to 10 AWG, accommodating various wiring needs.
The pitch between positions is 6mm, which allows for compact wiring arrangements.
It uses screw termination, ensuring secure and reliable electrical connections.
This terminal block operates safely within a temperature range up to 120°C, suitable for demanding conditions.
It supports the connection of 2 wires of equal size per position, enhancing circuit configuration efficiency.
It is certified for hazardous areas with ATEX certification and complies with VDE, GL, and CSA standards.
It is manufactured in Germany, ensuring precision engineering and quality standards.
This model is suitable for use in industrial control panels, power distribution, automation systems, and hazardous environments.
Yes, it is designed for hazardous areas and is ATEX certified, ensuring safety in such conditions.
