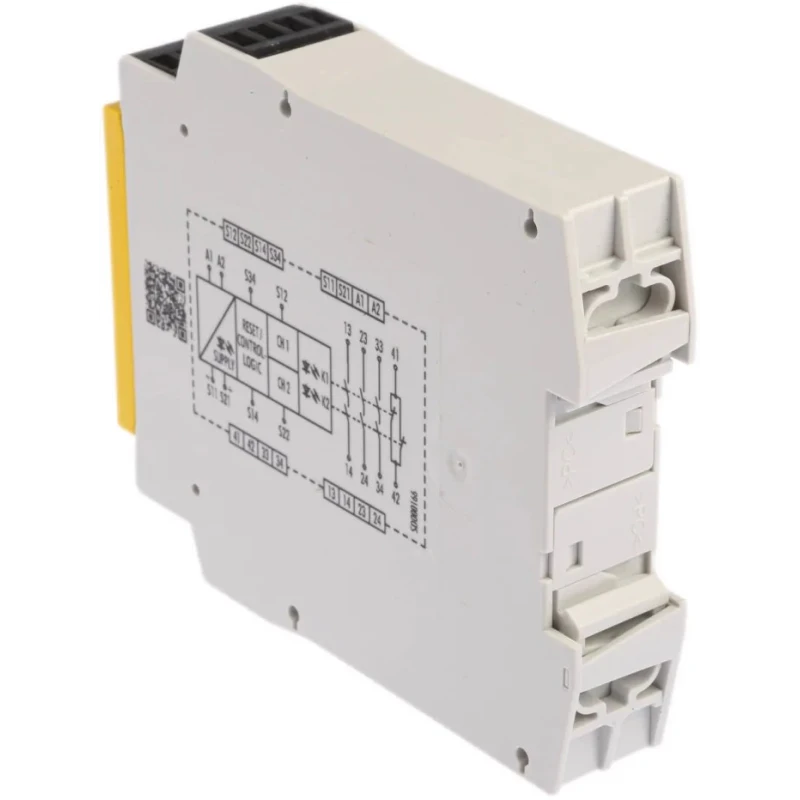

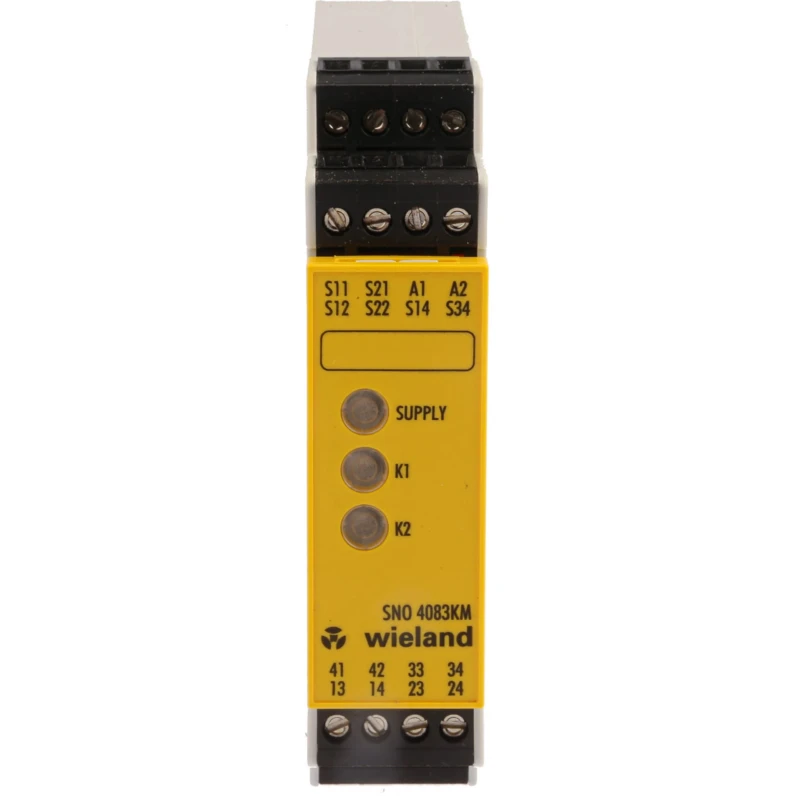

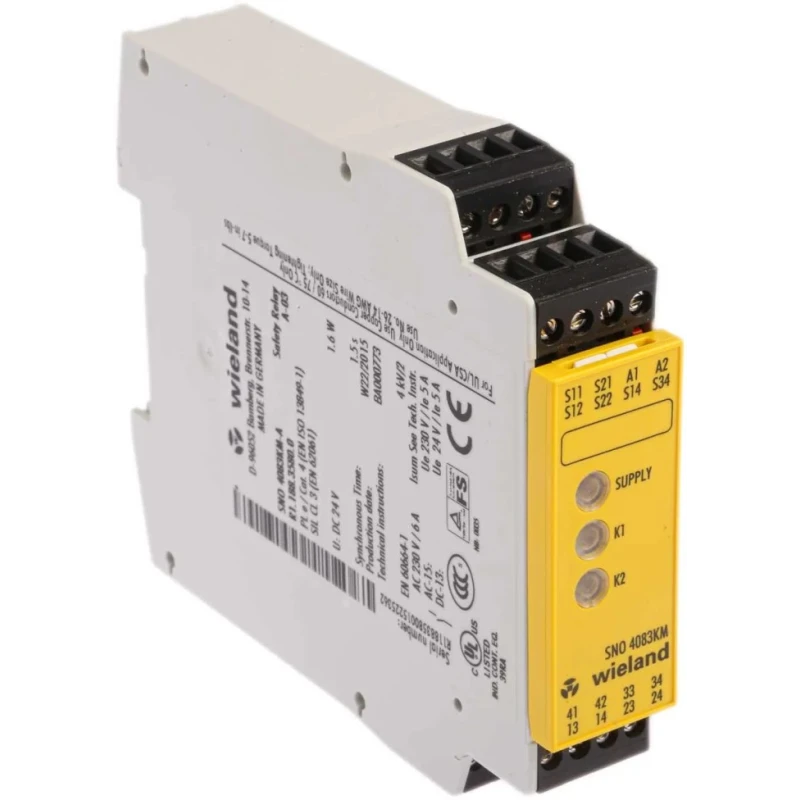

Wieland 24V DC Safety Relay with 3 Safety Contacts and 1 Auxiliary Contact R1.188.3580.0
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 1.6W |
| Brand | Wieland |
| Height | 114mm |
| Length | 96.5mm |
| Model | R1.188.3580.0 |
| IP Rating | IP40 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | SNO 4083 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | NOC |
| Time Delay | 1.5 s |
| Minimum Operating Temperature | -25°C |
| Safety Category | 4 |
| Terminal type | Screw |
| Reset Method | Manual |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 230V ac |
| Contact Current | 6A |
| Safety Contacts | 3 |
| Number of Auxiliary Contacts | 1 |
| Wieland Dual-Channel Emergency Stop Safety Relay, 24V dc, 3 Safety ContactsBrand | Wieland |
Key Features
- Features 3 enabling current (NO) contacts and 1 signalling current (NC) contact for safety control.
- Manual reset method with integrated SafeStart function for monitored manual start-up.
- DIN rail mountable with screw terminals for secure installation.
- Supports stop category 0 according to EN 60204-1 and up to Performance Level e and Category 4 safety standards.
- Compact design with dimensions 114mm height, 96.5mm length, and 22.5mm width for space-efficient panel integration.
- Operates at coil and switching DC voltage of 24V with power consumption of 1.6W.
- Time delay of 1.5 seconds and IP40 rated enclosure for protection against solid objects.
- Meets international standards including EN ISO 13849-1, EN 62061, and EN 81-1 for reliable safety relay performance.
Product Description
Wieland R1.188.3580.0 Safety Relay is a professional-grade 24V DC safety relay designed for diverse industrial automation and safety applications. Featuring 3 enabling current path (normally open) contacts and 1 signalling current path (normally closed) contact, it ensures optimal safety control functionality.
The relay is equipped with a manual reset method including a SafeStart function which enables monitored manual start up, preventing device interlocking via its integrated Monoflop function. It supports both single and two-channel control via NC/NC or NC/NO configurations, with synchronous time monitoring for precise safety management.
Designed for easy installation, this relay mounts on DIN rails and includes screw terminals that are pluggable, simplifying wiring processes. Its robust IP40 rated enclosure protects against solid intrusions, further enhancing durability.
Operating within a temperature range of -25°C to +65°C, it handles contact currents up to 6A and switching AC voltage to 230V, making it suitable for a wide range of industrial environments. The device complies with critical safety standards including EN ISO 13849-1 (up to PL e, Cat.4), EN 62061 (up to SILCL 3), EN 50156-1, and EN 81-1 ensuring high safety and reliability levels.
This safety relay is ideal for monitoring emergency stops, safety gates, and light barrier applications, fulfilling stop category 0 requirements per EN 60204-1. Its compact dimensions of 114mm height, 96.5mm length, and 22.5mm width make it suitable for space-constrained electrical panels.
Made in Germany, it assures premium quality and industrial-grade safety compliance. Wieland safety relays provide efficient safety monitoring solutions for manufacturing, automation systems, and electrical control panels.
Features 3 enabling current and 1 signalling contact for safety control. Manual reset with SafeStart and monitored manual start-up. Mounts on DIN Rail with screw-pluggable terminals. Compatible with safety standards EN ISO 13849-1, EN 62061, EN 50156-1, EN 81-1.
Operates at 24V DC coil voltage with 1.6W power consumption. Time delay of 1.5 seconds and IP40 rated protection. Suitable for emergency stops, safety gates, and light barrier monitoring. Contact current rated at 6A; temperature range -25°C to +65°C.
Compact design measures 114mm x 96.5mm x 22.5mm. Explore more Safety Relay solutions and industrial automation products on EnvMart for enhanced operational safety and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This safety relay operates at a coil voltage of 24V DC.
The relay has dimensions of 114mm in height, 96.5mm in length, and 22.5mm in width.
It features 3 enabling current (NO) contacts for safety control.
The relay can handle a maximum contact current of 6A.
The power consumption of this model is 1.6W.
It has a time delay of 1.5 seconds.
This relay is designed for DIN rail mounting and features screw terminals for secure installation.
It complies with safety standards including EN ISO 13849-1, EN 62061, and EN 81-1.
The operating temperature range is from -25°C to +65°C.
It uses a manual reset method with an integrated SafeStart function.
The relay has an IP40 rating, providing protection against solid objects.
This safety relay is suitable for monitoring emergency stops, safety gates, and light barrier applications.
