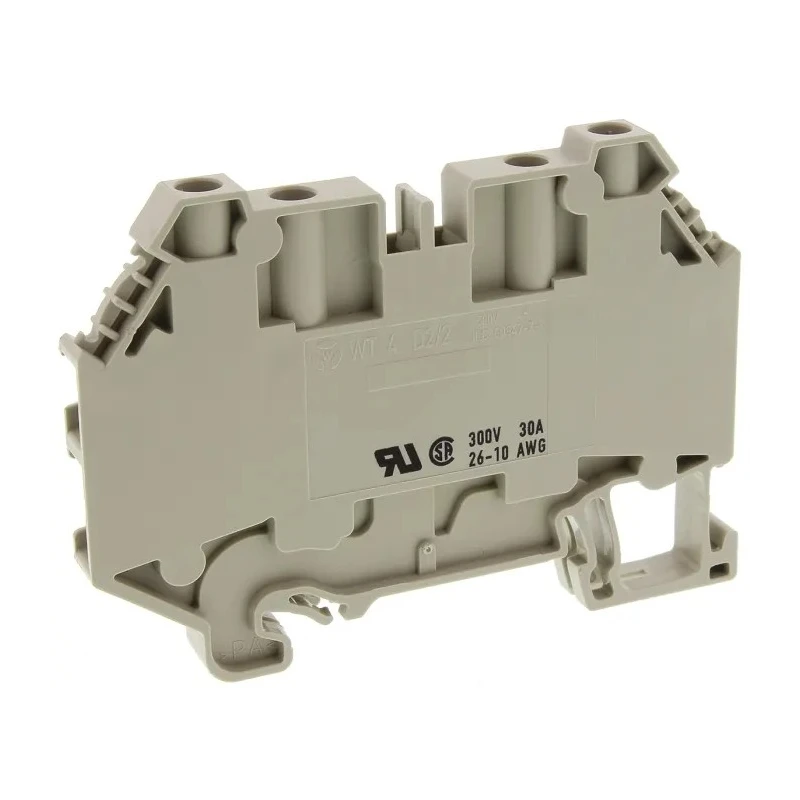

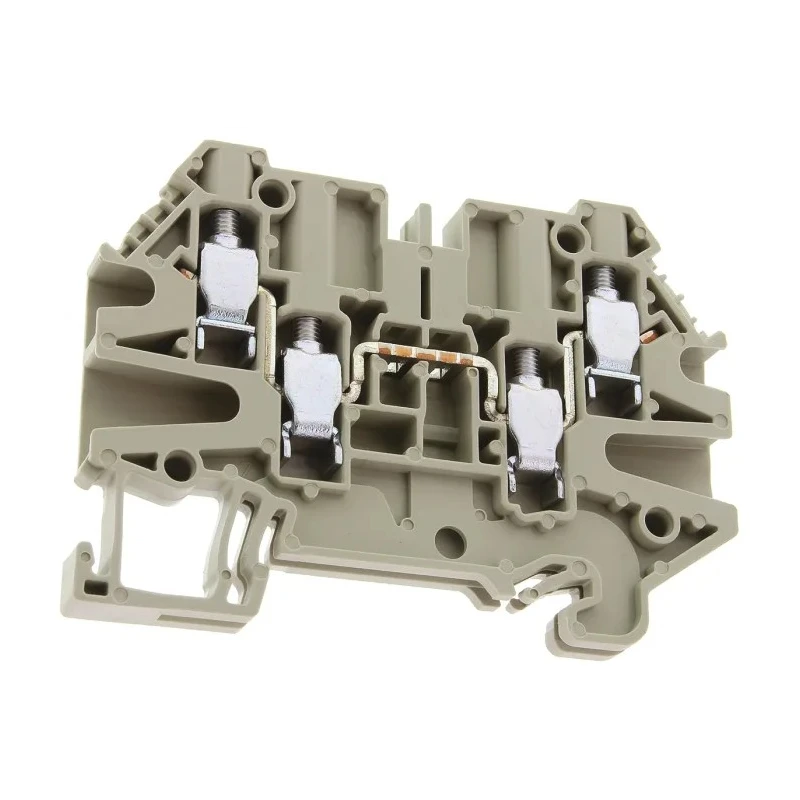

Wieland 2 Series WT 4 D2/2 Feed Through Terminal Block Grey, 10AWG to 26AWG, 1-Level, Screw Termination, 500V 58.504.5155.0
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Wieland |
| Colour | Grey |
| Series | WT 4 D2/2 |
| Termination Type | Screw |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Sub Type | Feed Through Terminal Block |
| Minimum Operating Temperature | 120°C |
| Pitch | 6mm |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | VDE, CSA, GL |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 10, 26AWG |
| Terminal Block Current | 32A |
| Max electrical current | 41A/6mm² |
| Connecti0on capacity | 2 wires, equal size 0.14 - 2.5 mm² |
Key Features
- Supports wire sizes ranging from 10 AWG to 26 AWG.
- Rated for 500 volts and a maximum terminal block current of 32 amperes.
- Features a pitch of 6 mm and 4 terminal positions for efficient wiring.
- Designed with screw-type termination for secure and reliable connections.
- Certified for hazardous environments with ATEX approval.
- Operates safely at temperatures up to 120°C, meeting VDE, CSA, and GL standards.
- Nominal cross section of 4 mm² with connection capacity accommodating 2 wires of equal size from 0.14 to 2.5 mm².
- Constructed in Germany ensuring high quality and compliance.
Product Description
Wieland 58.504.5155.0 2 Series WT 4 D2/2 Feed Through Terminal Block is a high-quality industrial electrical component designed for secure and efficient wiring in industrial and commercial applications. This grey-colored feed-through terminal block features a 1-level configuration with four positions, making it suitable for compact installations on TS35 DIN rails.
It supports wiring from 10 AWG to 26 AWG, providing versatile connection options suitable for various cable sizes. The terminal block is designed with a screw termination type for robust and reliable connections under demanding conditions. Rated for 500 volts and up to 32 amperes of terminal block current, it ensures safe electrical performance.
The terminal block offers a pitch of 6 mm and a nominal cross section of 4 mm². It supports a connection capacity of two wires of equal size ranging from 0.14 to 2.5 mm², which optimizes wiring density and installation efficiency.
Safety and quality are ensured by certifications such as ATEX for hazardous areas and compliance with VDE, CSA, and GL standards. The block is rated for operation at temperatures up to 120°C, making it suitable for demanding industrial environments.
Manufactured in Germany, this terminal block is built to high standards of durability and reliability. For earth (ground) connection, a compatible Duo earth block with screw connection is available separately.
Supports wire sizes 10 AWG to 26 AWG. Voltage rating of 500V and terminal current of 32A. 6 mm pitch with 4 positions for DIN rail mounting. Screw type termination for secure connections. ATEX certification for hazardous environments.
Complies with VDE, CSA, and GL standards. Operating temperature up to 120°C. Nominal cross section 4 mm². Connection capacity for 2 wires, equal size 0.14 - 2.5 mm².
This feed-through terminal block is ideal for industrial automation, control panels, electrical distribution, and building wiring applications. Explore similar DIN Rail Terminal Blocks in the Electronics Components category for diverse connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this terminal block is 500 volts.
It has a maximum terminal block current capacity of 32 amperes.
This model supports wire sizes ranging from 10 AWG to 26 AWG.
It features four terminal positions for efficient wiring.
The terminal block utilizes a screw-type termination for secure connections.
The pitch of the Wieland WT 4 D2/2 is 6 mm.
The nominal cross section is 4 mm².
It can accommodate two wires of equal size ranging from 0.14 to 2.5 mm².
This model is certified for hazardous areas with ATEX approval and complies with VDE, CSA, and GL standards.
It operates safely at temperatures up to 120°C.
This terminal block is constructed in Germany, ensuring high quality and compliance.
It is suitable for industrial automation, control panels, electrical distribution, and building wiring applications.
