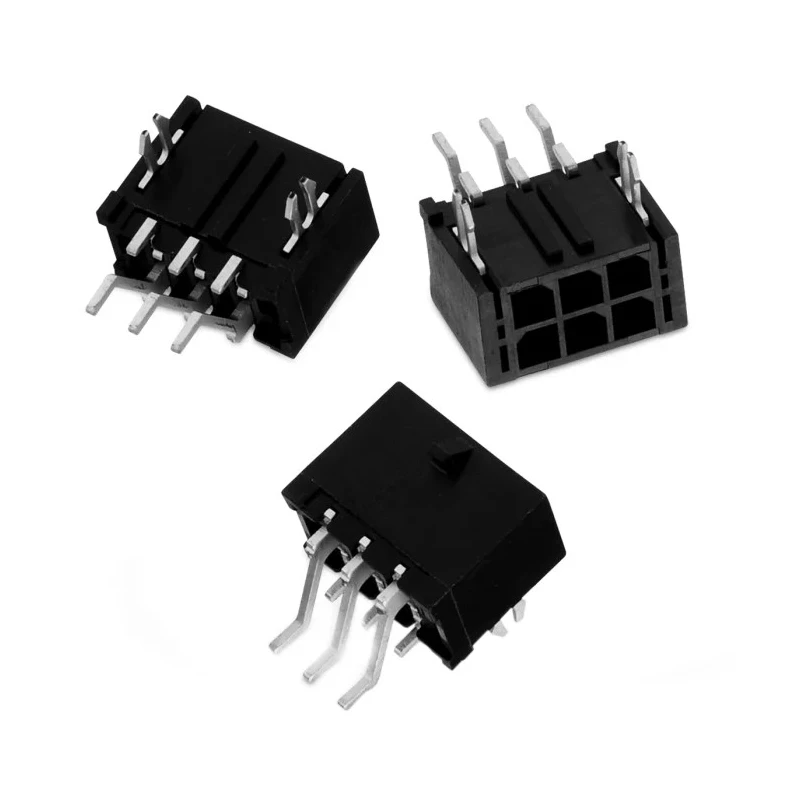

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole Shrouded Male PCB Header, 6 Contacts, 3 mm Pitch, 2 Row MPC3

Wurth Elektronik MPC3 series right angle through hole shrouded male PCB header connector offers a robust and reliable connection solution for electronic circuits. This connector features 6 contacts arranged in a dual row with a precise 3 mm pitch, enabling secure wire-to-board connections in compact PCB layouts.

The housing is made from black UL94-V0 PA9T liquid crystal polymer, ensuring excellent flame retardant properties and mechanical stability. Contacts are manufactured from copper alloy with tin plating that ensures high conductivity and corrosion resistance. The connector is designed for through hole mounting and employs solder termination type for firm and durable installation on printed circuit boards.

Operating temperature ranges from -40°C to 105°C allow this connector to withstand harsh industrial and commercial environments. The connector supports a current rating of 5A and a voltage rating of 250V, making it suitable for a wide range of electronic and electrical applications including industrial control systems, communication devices, and instrumentation.

This shrouded male header with right angle orientation includes board locks that enhance the connector’s mechanical retention ensuring consistent electrical contact. The connector mates with WR-MPC3 female dual row receptacle style housings, providing a secure and reliable connection interface.

Supports up to 5A current capacity for reliable signal transmission. Features a dual row configuration with 2 rows of contacts. Constructed with a black UL94-V0 PA9T liquid crystal polymer housing. Contacts made of copper alloy with tin plating for corrosion resistance.

Solder termination type compatible with standard through hole mounting. Designed with shrouded housing and right angle orientation for PCB assembly. Operates within temperature range of -40°C to 105°C for durability in various environments.

Rated for voltage up to 250V suitable for various electronic applications. Connector system is wire-to-board type with male contact gender.

Wurth Elektronik products are valued in industrial manufacturing, electronic design, and assembly for their quality and performance. Explore the broader range of PCB Headers and electronic components available to support your projects with reliable connectivity solutions.
