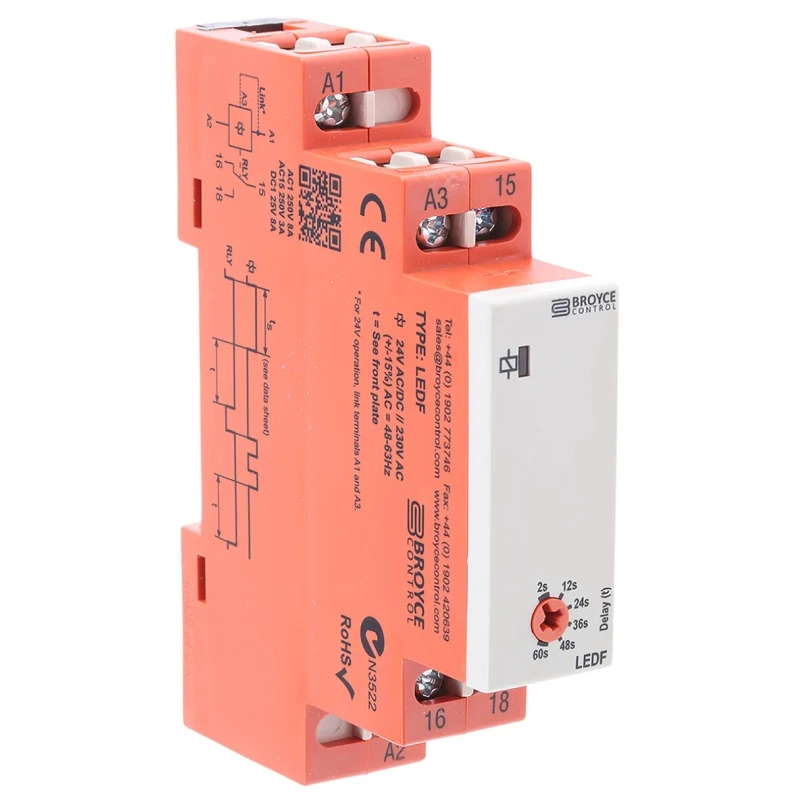

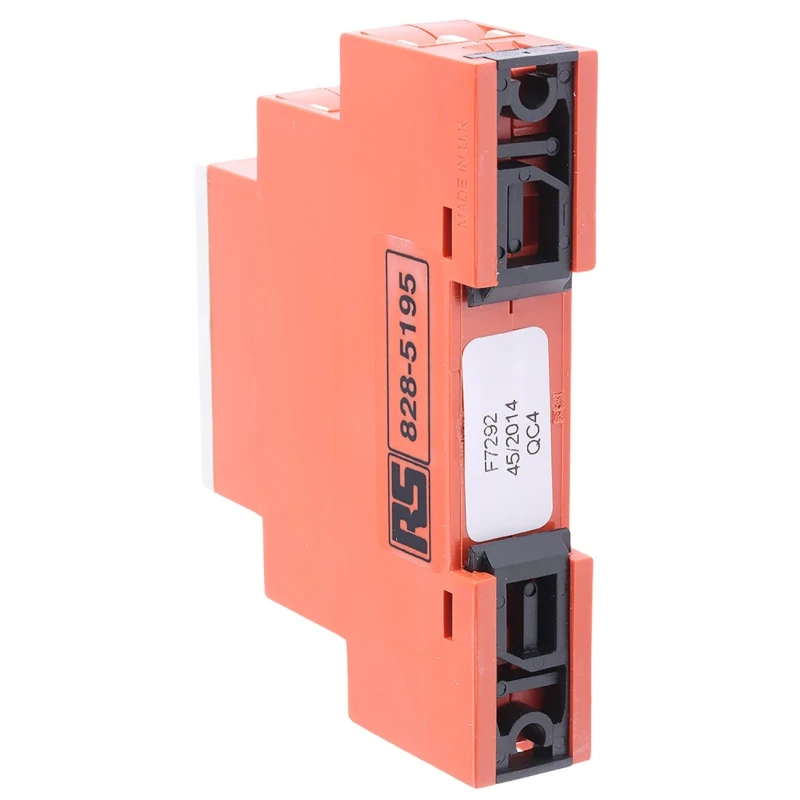

Broyce Control LEDF Series DIN Rail Timer Relay, 1-Contact, 24 V dc 230 V ac, 24 V ac, 2 to LEDF 24VAC/DC/230VAC. 2-60 Sec

Broyce Control LEDF Series DIN Rail Timer Relay model LEDF 24VAC/DC/230VAC. 2-60 Sec is a precision timing relay designed for industrial and automation applications requiring delay on power-off control. It features a 1-contact SPDT configuration housed in a slim 17.5 mm DIN rail mount enclosure measuring 89 mm length, 66.5 mm height, and 17.5 mm width, making it suitable for compact panel installations.

This timer relay supports dual-voltage input with DC 24 V and AC 230 or 24 V supply voltages, providing flexible use in various electrical systems. The time delay is adjustable from 2 to 60 seconds through an easy-to-access screwdriver slot, ensuring precise timing for control processes. The relay operates as a power-off delay type, commonly used in industrial control panels where functions need to be delayed for safety or process requirements.

It has a contact current rating of 8 A and employs a single-pole double-throw (SPDT) contact configuration for versatile switching capability. The relay withstands ambient operating temperatures from -20°C up to 60°C, making it reliable across varied industrial environments.

Additional practical features include a green LED that indicates supply status for immediate operational feedback. The product complies with UL, CE, and IEC safety standards, ensuring adherence to industrial safety and quality benchmarks. Manufactured in the United Kingdom, it provides a robust solution for automation, electrical control, HVAC, manufacturing, and process control applications.

Equipped with one SPDT contact for versatile switching. Supports dual-voltage input of 24 V dc and 230 or 24 V ac supply. Time delay adjustable from 2 to 60 seconds via screwdriver slot. Compact 17.5 mm DIN rail mount housing designed for easy installation.

Rated contact current of 8 A suitable for industrial applications. Operates reliably within temperature range of -20°C to 60°C. Includes green LED indicator for supply status monitoring. Constructed in the United Kingdom with UL, CE, and IEC approvals.

Power-off delay mode ensures accurate timing on power interruption.

This DIN rail timer relay is ideal for industrial automation, electrical control systems, HVAC installations, manufacturing processes, and other commercial applications requiring reliable timing control.
