Broyce Control LEDK Series DIN Rail Timer Relay, 2-Contact, 230 V dc 12V ac, 230 V ac, 0.1 s to 100 h LEDK 12-230V AC/DC

Broyce Control LEDK 12-230V AC/DC Timer Relay is a high precision, solid-state single-function timer relay mounted on DIN rail, providing time delay from 0.1 seconds to 100 hours with instantaneous contact switching. It is designed for use in demanding industrial and process control applications requiring reliable timing and switching operations.

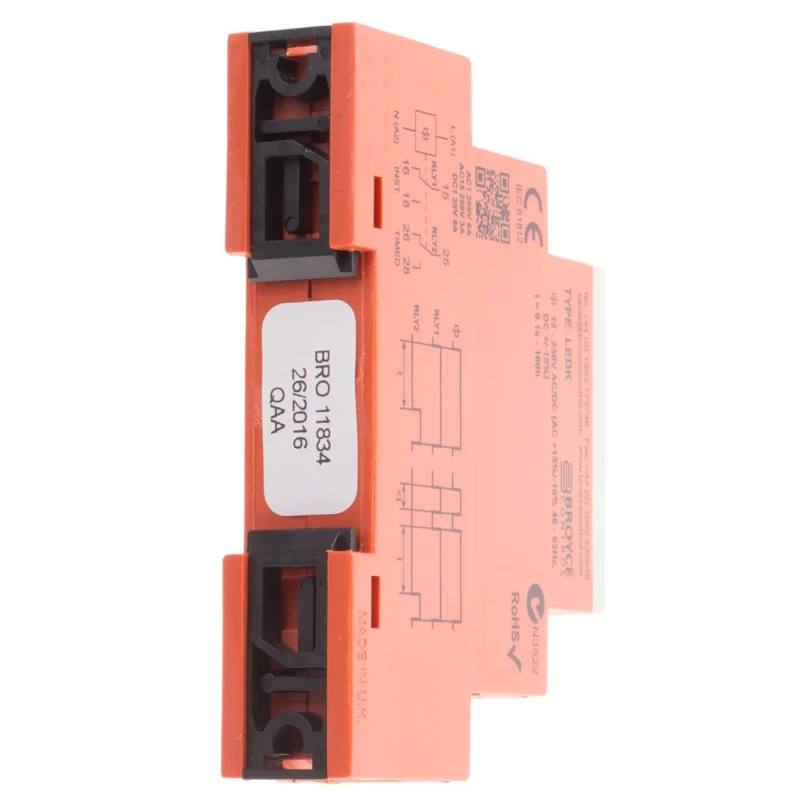

The compact design with a 17.5 mm wide housing and screw-type terminals ensures easy and secure installation on standard DIN rails. This relay features two SPDT contacts rated at 8 A each, with the capability to handle supply voltages from 12 V AC/DC up to 230 V AC/DC, making it versatile for various electrical systems.

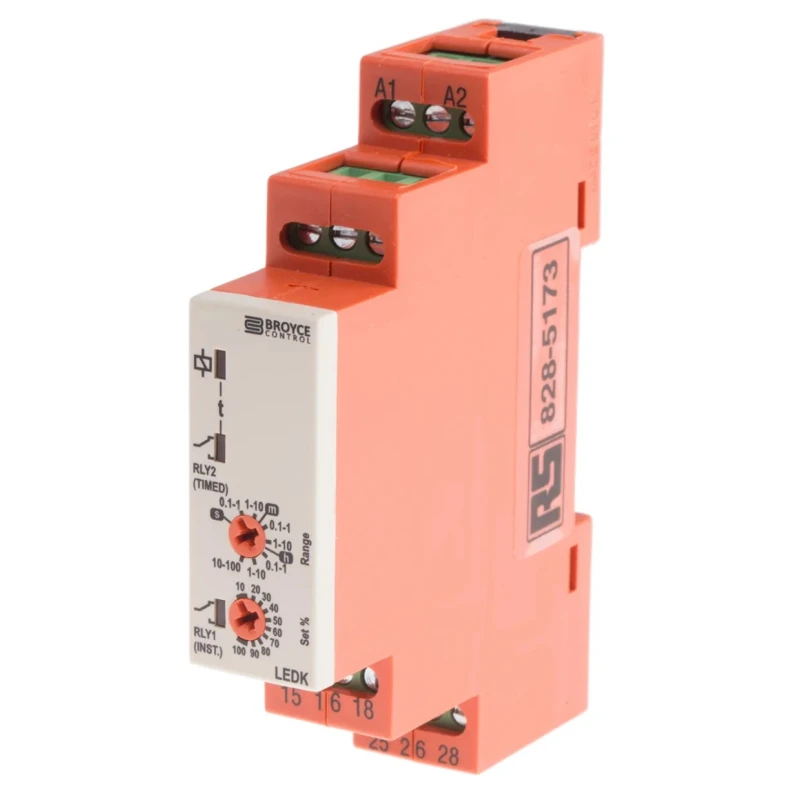

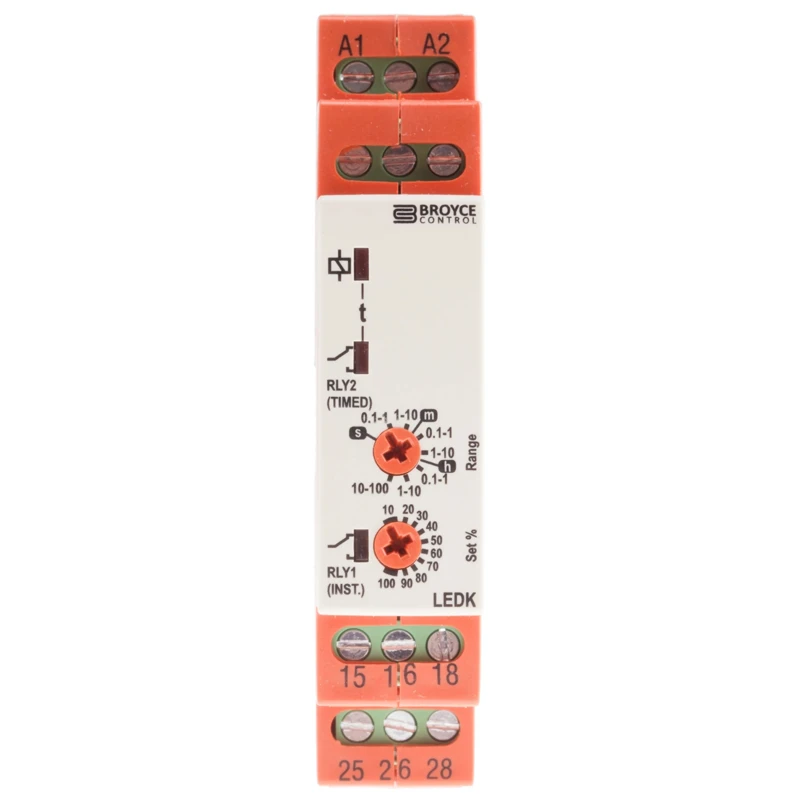

Programming the timer is straightforward with two rotary switches allowing selection among seven time ranges, including 0.1 s to 1 s, 1 s to 10 s, 0.1 min to 1 min, 1 min to 10 min, 0.1 h to 1 h, 1 h to 10 h, and 10 h to 100 h. The delay on operate function activates one relay with an instantaneous contact action, suitable for timed switching tasks.

The relay includes clear visual indicators: a green LED for supply and timing status and a red LED indicating relay operation, enhancing ease of troubleshooting and monitoring. This product operates safely within environmental temperatures from -20°C to 60°C and carries approvals from IEC, UL, and CE standards, ensuring compliance with global safety and performance requirements. The terminal protection is rated IP20.

This timer relay is ideally applied in industrial automation contexts such as textile machinery, chemical processing, mining equipment control, irrigation systems, raw material handling, food and beverage production, and wider industrial process control environments. Its solid-state technology guarantees reliable and repeatable timing performance with minimal maintenance.

This timer relay supports supply voltages from 12 V AC to 230 V AC and 12 V DC to 230 V DC. Equipped with 2 SPDT contact configuration rated at 8 A. Features a single timing function: delay on operate, with instantaneous relay switching.

Compact 17.5 mm DIN rail mount housing for easy installation. Seven selectable time ranges covering 0.1 seconds to 100 hours. Green LED for supply and timing status, red LED for relay status indication. Operation temperature range from -20°C to 60°C suitable for harsh environments.

Constructed to meet IEC, UL, and CE certification standards. Manufactured in the United Kingdom under stringent quality controls. Ideal for automation and process control applications across various industries. Explore more industrial Timer Relays and control solutions at EnvMart for reliable and efficient automation products.
