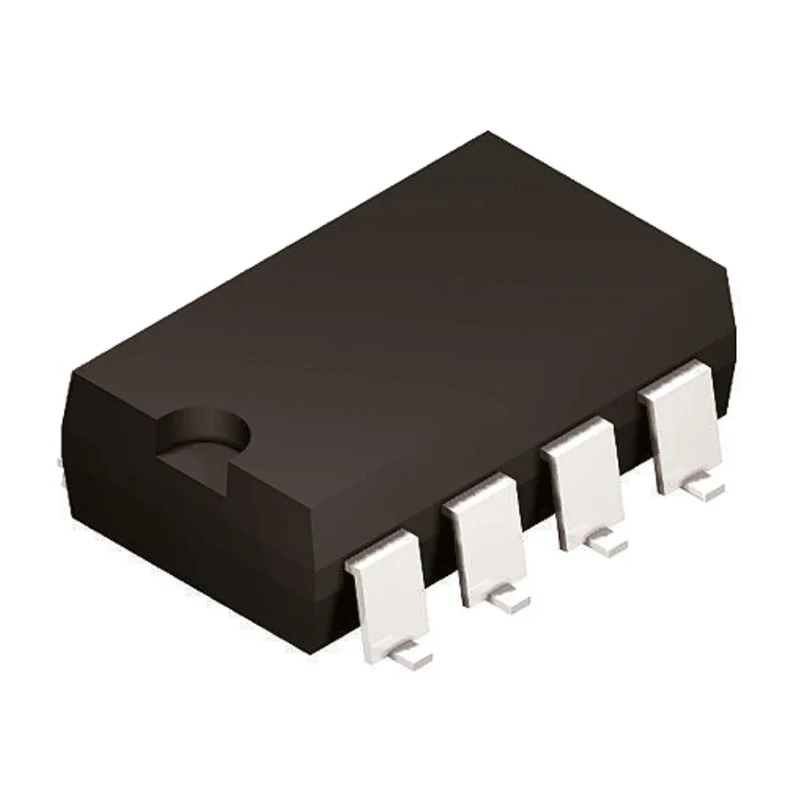

Broadcom DC Input Optocoupler Surface Mount 8-Pin DIP HCPL-2200-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2200-300E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 1.8mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2, UL1577, CSA Component Acceptance Notice 5 |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 55ns |
| Typical Fall Time | 7ns |
Key Features
- Designed for single channel DC input applications.
- Maximum forward voltage is 1.85 volts.
- Typical rise time is 55 nanoseconds ensuring fast response.
- Supports maximum input current up to 1.8 milliamps.
- Operates reliably between -40 to 85 degrees Celsius.
- Provides logic output suitable for digital interfacing.
- Isolation voltage rated at 3750 Vrms for high noise immunity.
- Complies with IEC, UL, and CSA safety standards.
Product Description
Broadcom HCPL-2200-300E is a DC input optocoupler designed with a surface mount 8-pin DIP package, engineered to provide electrical isolation between input and output in industrial, electronics manufacturing, and automation applications.
It supplies a single channel with a maximum forward voltage of 1.85V and maximum input current of 1.8mA, enabling low-power input signals to control output logic levels effectively.
This device features a fast typical rise time of 55 nanoseconds and a fall time of 7 nanoseconds, ensuring quick switching performance suitable for high-speed digital circuits.
Engineered for robust operation, the optocoupler functions efficiently across a minimum temperature of -40°C up to a maximum of 85°C, making it suitable for harsh industrial environments.
With an isolation voltage rating of 3750 Vrms, it offers exceptional noise immunity and protects sensitive circuits from high voltages and transients. The package type is standard DIP with surface mount compatibility, supplied in tape and reel packaging to streamline manufacturing and assembly processes.
The HCPL-2200-300E adheres to international standards including IEC/EN/DIN EN 60747-5-2, UL1577, and CSA Component Acceptance Notice 5, ensuring reliable compliance and safety in application.
Designed for single channel DC input applications. Maximum forward voltage is 1.85 volts. Typical rise time is 55 nanoseconds ensuring fast response. Supports maximum input current up to 1.8 milliamps. Operates reliably between -40 to 85 degrees Celsius.
Provides logic output suitable for digital interfacing. Isolation voltage rated at 3750 Vrms for high noise immunity. Complies with IEC, UL, and CSA safety standards. Packaged in tape and reel format for assembly efficiency.
Uses HCPL series Avago Technologies optocoupler design.
This optocoupler is extensively used in electronic components, power connectors, displays, and optoelectronics equipment in industrial automation, power supply isolation, signal transfer, and safety circuitry.
Explore more Optocoupler components and related devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 1.8 milliamps.
It has an isolation voltage rating of 3750 Vrms, providing high noise immunity.
This unit operates reliably between -40°C and 85°C, making it suitable for harsh environments.
The typical rise time is 55 nanoseconds, ensuring fast response for high-speed digital circuits.
It provides a logic output suitable for digital interfacing, allowing for effective control of output logic levels.
This model is packaged in tape and reel format, which streamlines manufacturing and assembly processes.
This optocoupler supports a single channel DC input application.
The maximum forward voltage is 1.85 volts.
It complies with IEC/EN/DIN EN 60747-5-2, UL1577, and CSA Component Acceptance Notice 5.
The typical fall time is 7 nanoseconds, contributing to its quick switching performance.
This model features a surface mount type, designed for easy integration into electronic circuits.
The country of origin for this optocoupler is India.
