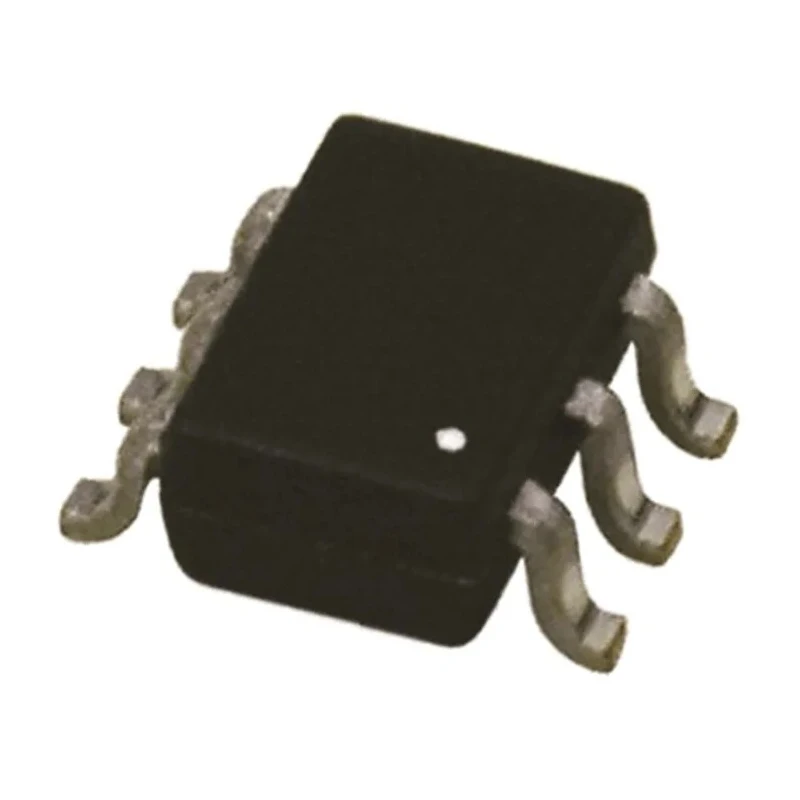

Nexperia 2-Channel Non-Inverting Schmitt Trigger Input Single Ended Buffer 6-Pin SC-88 74LVC2G17GW,125

Nexperia 74LVC2G17GW,125 model 2-Channel Non-Inverting Schmitt Trigger Input Single Ended Buffer is a low-voltage CMOS logic buffer designed for compact and efficient electronic circuit designs. It operates within a supply voltage range of 1.65 V to 5.5 V, making it suitable for diverse power environments.

Housed in a 6-pin SC-88 surface mount package measuring 2.2 mm in length and 1 mm in height, this buffer integrates 2 channels with non-inverting outputs. The Schmitt trigger input enhances noise immunity and signal integrity for robust circuit performance.

The device supports a maximum ambient operating temperature up to 125°C and a minimum of -40°C, ensuring reliability under harsh thermal conditions. It offers a maximum propagation delay of 13.1 nanoseconds under load, suitable for timing-critical applications.

The buffer draws a low supply current of 4 μA, contributing to energy-efficient circuit designs. It is compatible with input LVTTL/TTL signaling standards and outputs standard LVCMOS logic levels, facilitating easy integration with other digital components.

Featuring a maximum high-level output current of -32 mA and a maximum low-level output current of 32 mA, the buffer is effective in driving a variety of loads. This makes it suitable for use in automotive electronics, industrial control, consumer electronics, and communication equipment.

Operates over a voltage range of 1.65 to 5.5 volts. 6-pin SC-88 surface mount package for compact PCB designs. Schmitt trigger input for improved noise immunity. Non-inverting single-ended buffer output with 2 channels. Supports operating temperature from -40°C to 125°C.

Maximum propagation delay of 13.1 ns at specified load. Low supply current of 4 μA for energy efficiency. Compatible with LVTTL/TTL inputs and LVCMOS outputs. Maximum output currents: -32 mA high-level, 32 mA low-level.

This Nexperia buffer IC is ideal for applications in industrial electronics, automotive systems, and consumer electronics where reliable, low-voltage buffering of digital signals is critical. Its compact size and robust operating range make it an excellent choice for integration into printed circuit boards requiring durable logic gating solutions.
