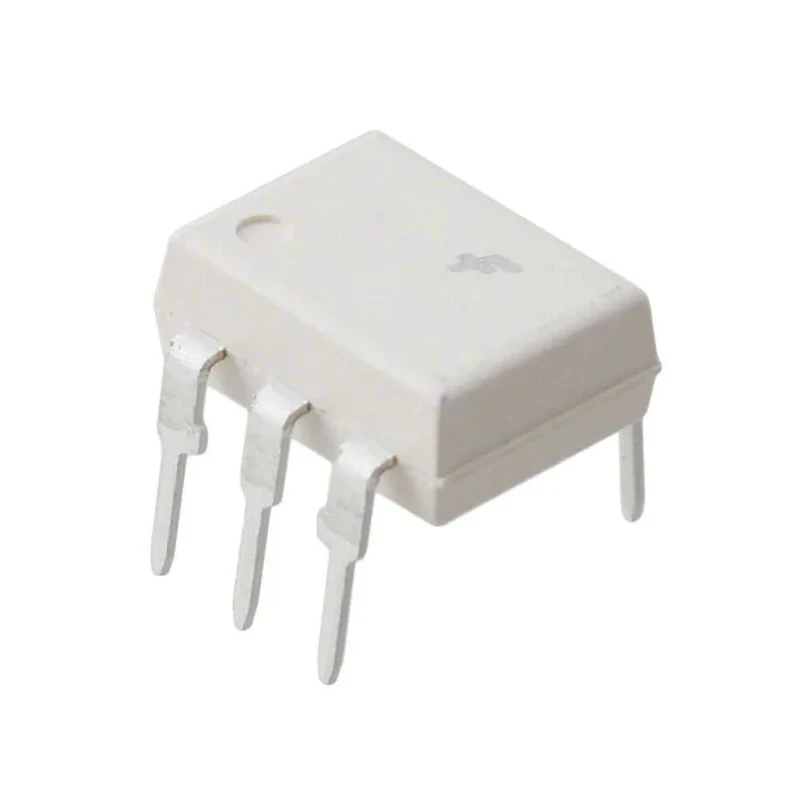

onsemi Optocoupler Through Hole 6-Pin DIP, 1 Channel, 60mA Input Current, 1.5V Forward Voltage MOC3011M
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | onsemi |
| Model | MOC3011M |
| Mount Type | Through Hole |
| Series | MOC30 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577, DIN EN/IEC60747-5-5 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| onsemi MOC3011M Optocoupler, Through Hole, 6-Pin DIPBrand | onsemi |
Key Features
- The device features a GaAs infrared emitting diode for optical isolation.
- It includes a light-activated silicon bilateral switch functioning as a triac.
- Designed for control of resistive and inductive loads at 115 VAC.
- Peak blocking voltage of 250 V ensures high voltage tolerance.
- Operating temperature ranges from -40°C to 85°C for wide environmental use.
- Complies with UL1577 and DIN EN/IEC60747-5-5 safety standards.
- Package type is a 6-pin DIP suitable for through hole PCB mounting.
- Ideal for consumer appliances and industrial motor control applications.
Product Description
onsemi MOC3011M is a high-quality optocoupler with a through hole 6-pin DIP package designed to provide electrical isolation and drive triacs effectively. It incorporates a GaAs infrared emitting diode coupled with a light-activated silicon bilateral switch that behaves like a triac. This device is suited for interfacing electronic control systems with power triacs to manage both resistive and inductive loads on 115 VAC operations.
The MOC3011M offers excellent infrared emitting diode stability with low degradation, ensuring reliable long-term performance. It features a peak blocking voltage of 250 V, allowing it to handle typical power electronics applications safely. Its maximum forward voltage is 1.5 V, and the maximum input current is rated at 60 mA.
Operating temperature ranges from -40°C to 85°C, making it suitable for diverse industrial and consumer environments. The product complies with stringent safety standards including UL1577 and DIN EN/IEC60747-5-5 certifications, underscoring its reliability and safety for use in demanding applications.
The compact 6-pin DIP package facilitates easy mounting on through-hole PCBs and integration into electronic circuits. Typical applications include consumer appliances and industrial motor controls where optically isolated triac drivers are required.
The optocoupler provides galvanic isolation between control and power circuits. Designed to optimize stability and minimize degradation of the infrared diode. Ensures safe operation with a peak blocking voltage of 250 V.
Supports wide operating temperature ranges for diverse environments. Compact 6-pin DIP package is ideal for through-hole PCB mounting. Compliance with recognized international safety standards. Suitable for controlling resistive and inductive loads efficiently.
Manufactured in Thailand ensuring consistent quality and reliability. Widely applicable in consumer appliances and industrial motor applications.
This onsemi optocoupler offers dependable performance for industrial, consumer electronics, and manufacturing automation applications requiring electrical isolation and TRIAC drive functionality. Browse the Electronics Components category on EnvMart for related optoelectronic devices and Optocouplers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the MOC3011M is rated at 60 mA.
This optocoupler has a peak blocking voltage of 250 V, allowing it to handle typical power electronics applications safely.
The operating temperature range for this unit is from -40°C to 85°C, making it suitable for diverse environments.
It comes in a 6-pin DIP package, designed for through-hole PCB mounting.
The device complies with UL1577 and DIN EN/IEC60747-5-5 safety standards.
This optocoupler is designed for controlling both resistive and inductive loads at 115 VAC.
It provides galvanic isolation between control and power circuits through its optical coupling mechanism.
The maximum forward voltage for this model is 1.5 V.
The MOC3011M features a single channel design.
The MOC3011M is manufactured in Thailand.
This model supports through-hole mounting, suitable for PCB integration.
It belongs to the MOC30 series of optocouplers.
