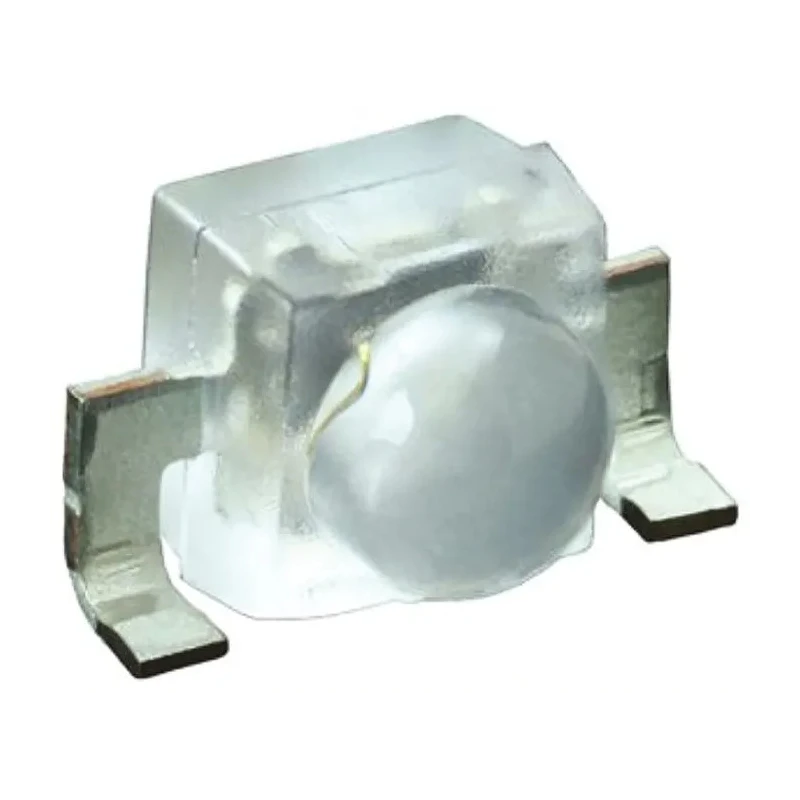

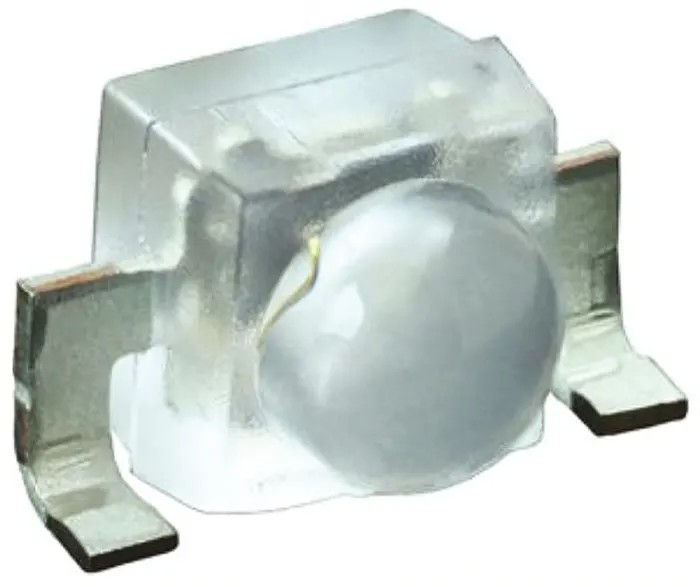

Vishay 960 nm Infrared Emitting Diode Subminiature SL Surface Mount GaAlAs Dome Lens VSMB2948SL
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Dimensions | 2.3 x 2.55 x 2.3 mm |
| Model | VSMB2948SL |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Beam angle | 50° |
| Number Of Leds | 1 |
| Package Type | Subminiature SL |
| Standards/Approvals | JEDEC |
| Number of Pins | 2 |
| Lens Shape | Dome |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 960nm |
| Radiant Flux | 40mW |
| LED Material | GaAlAs |
| Angle of half intensity | 25° |
| Radiant Intensity | 90mW/sr |
Key Features
- The diode uses GaAlAs multi quantum well (MQW) technology for high radiant power.
- It features a dome-shaped lens and a compact size of 2.3 x 2.55 x 2.3 mm.
- The device has a radiant flux of 40 mW and radiant intensity of 90 mW/sr.
- The beam angle is 50° with a half intensity angle of 25° for focused IR emission.
- It has 2 pins and 1 LED in a side-looking surface mount package.
- Designed with SurfLight™ technology for higher light intensity through the top of the chip.
- Suitable for remote control systems, IR touch panels, automotive, industrial, and CCTV illumination applications.
- Complies with JEDEC and AEC-Q101 automotive standards, ensuring reliability.
Product Description
Vishay VSMB2948SL Infrared Emitting Diode Subminiature SL is a high speed infrared emitting diode featuring a subminiature surface mount package with a dome lens. It utilizes GaAlAs multi quantum well technology to provide high radiant power with a peak wavelength of 960 nm. The diode dimensions are compact, measuring 2.3 x 2.55 x 2.3 mm, suitable for space-constrained applications.
The device exhibits a radiant flux of 40 mW and radiant intensity of 90 mW/sr, with a beam angle of 50° and half intensity angle of 25°, providing focused infrared emission. It includes 1 LED and 2 pins in a side-looking surface mount configuration.
VSMB2948SL employs Vishay’s proprietary SurfLight™ technology, allowing the majority of light and power to be emitted through the top of the chip. This increases intensity output and can reduce the number of emitters required in a design. Its low forward voltage and high-speed operation make it ideal for applications such as remote control, IR data transmission, IR touch panels, automotive sensor systems, industrial automation, and IR illumination for CCTV cameras.
The diode meets JEDEC and automotive AEC-Q101 standards, ensuring high reliability in demanding environments. Its tape and reel packaging supports automated pick-and-place assembly processes for efficient production.
The diode uses GaAlAs MQW technology for high radiant power and reliability. Compact subminiature SL package with 2.3 x 2.55 x 2.3 mm dimensions. High radiant flux of 40 mW and intensity of 90 mW/sr for strong IR emission.
Beam angle of 50° and half intensity angle of 25° for focused IR beam. Side-looking surface mount package with dome lens shape. Compliant with JEDEC and AEC-Q101 automotive standards. SurfLight™ technology enhances top-side light emission intensity.
Tape and reel packaging ideal for industrial assembly processes.
This Vishay VSMB2948SL infrared emitting diode is widely used in industrial, automotive, consumer electronics, and security applications requiring reliable, high intensity IR sources.
Discover more products in the Infrared LED category at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared emitting diode is 960 nm.
This model has compact dimensions of 2.3 x 2.55 x 2.3 mm.
The radiant flux of the VSMB2948SL is 40 mW.
The radiant intensity is 90 mW/sr.
The beam angle is 50° with a half intensity angle of 25°.
This model includes 1 LED in its configuration.
It features a dome-shaped lens.
This infrared emitting diode is designed for surface mounting.
The diode is packaged in tape and reel format, suitable for automated assembly processes.
It complies with JEDEC and AEC-Q101 automotive standards, ensuring reliability in automotive applications.
It employs SurfLight™ technology, which enhances light intensity emitted through the top of the chip.
This infrared emitting diode is suitable for remote control systems, IR touch panels, automotive sensors, industrial automation, and CCTV illumination.
