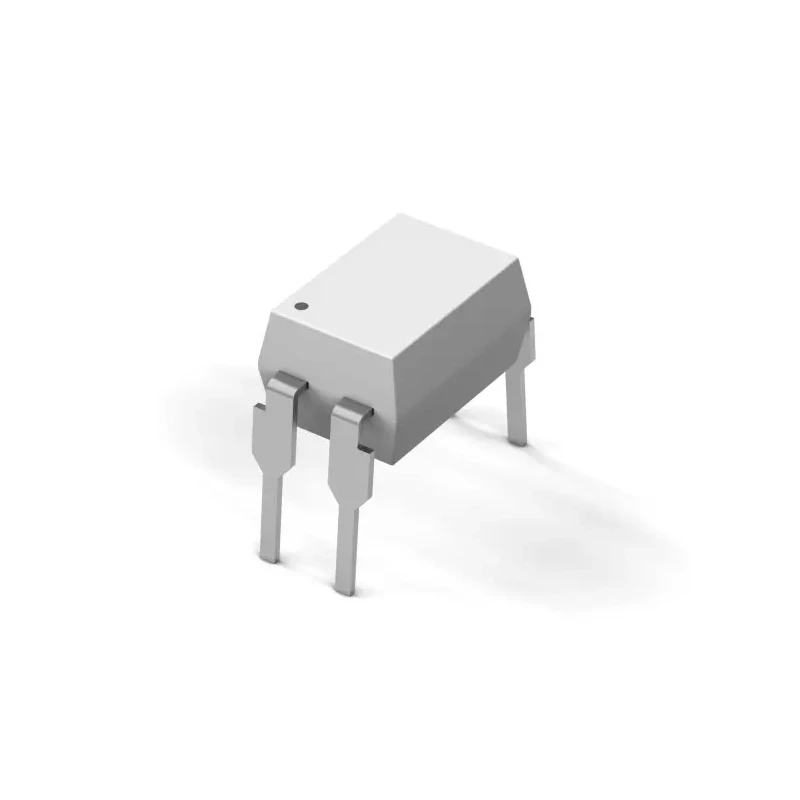

Wurth Elektronik DC Input 4-Channel Optocoupler Through Hole 4-Pin DIP 140816140310
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tube |
| Mount Type | Through Hole |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 4 |
| Standards/Approvals | JEDEC JS709B, CoC, IEC 61249-2-21, REACH, RoHS, VDE |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 400% |
| Typical Fall Time | 4μs |
| Minimum Current Transfer Ratio | 200% |
Key Features
- This optocoupler features 4 input channels for versatile control.
- It employs a phototransistor output in a 4-pin DIP package for standardization and easy mounting.
- The device supports a maximum forward voltage of 1.4V and maximum input current of 60mA.
- Designed for robust operation with a wide temperature range from -55°C to 110°C.
- Typical rise and fall times are 3μs and 4μs respectively, enabling fast switching.
- Effective isolation voltage of 5000Vrms ensures safety and noise immunity in harsh environments.
- The optocoupler offers a current transfer ratio between 200% and 400%, maintaining signal fidelity.
- Packaging provided in tubes facilitates batch handling during assembly.
Product Description
Wurth Elektronik 140816140310 DC Input 4-Channel Optocoupler is a through hole mount optocoupler designed for industrial and electronic control applications. It features a 4-channel phototransistor output encapsulated in a 4-pin Dual Inline Package (DIP) measuring 6.5mm x 4.58mm x 3.5mm (L x W x H). The device supports a maximum forward voltage of 1.4V and can handle a maximum input current of 60mA with a typical power dissipation of 200mW.
This optocoupler achieves an isolation voltage of 5000Vrms, enhancing safety and noise immunity in demanding environments. It operates reliably across a wide temperature range from -55°C to 110°C, making it suitable for harsh conditions.
The current transfer ratio (CTR) ranges from 200% to 400%, ensuring efficient signal transmission. Fast switching characteristics with typical rise and fall times of 3μs and 4μs respectively permit high-speed signal processing.
Compliant with industry standards including JEDEC JS709B, CoC, IEC 61249-2-21, REACH, RoHS, and VDE, this product meets stringent regulatory requirements.
Applications for this optocoupler include the control of various load types in test and measurement equipment, data communications gear, power supplies, and sensor systems. Its robust construction and reliable electrical characteristics make it a vital component in electronic and industrial automation setups.
This optocoupler supports 4 DC input channels for multi-signal isolation. The through hole DIP package allows for easy PCB mounting and replacement. Maximum 1.4V forward voltage minimizes power loss. 60mA maximum input current ensures strong signal drive capability.
Operational temperature spans from -55°C to 110°C for durability. Current transfer ratio varies from 200% to 400%, providing signal amplification. Isolation voltage rating of 5000Vrms enhances operational safety. Compliance with key standards guarantees reliability and environmental safety.
Typical rise/fall times of 3μs/4μs enable fast switching responses. Ideal for use in industrial control, data communication, and measurement systems. Explore more from Wurth Elektronik and the Optocoupler category on EnvMart for your industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60mA.
It has an effective isolation voltage rating of 5000Vrms, ensuring safety and noise immunity.
This optocoupler operates reliably across a temperature range from -55°C to 110°C.
The maximum forward voltage supported by this unit is 1.4V.
This model features 4 input channels for versatile control.
The typical rise time is 3μs and the typical fall time is 4μs, enabling fast switching.
The current transfer ratio (CTR) for this optocoupler ranges from 200% to 400%.
It is designed for through hole mounting, encapsulated in a 4-pin DIP package.
The optocoupler is packaged in tubes for batch handling during assembly.
It complies with several standards including JEDEC JS709B, CoC, IEC 61249-2-21, REACH, RoHS, and VDE.
The typical power dissipation for this optocoupler is 200mW.
It is suitable for applications in industrial control, data communications, and measurement systems.
