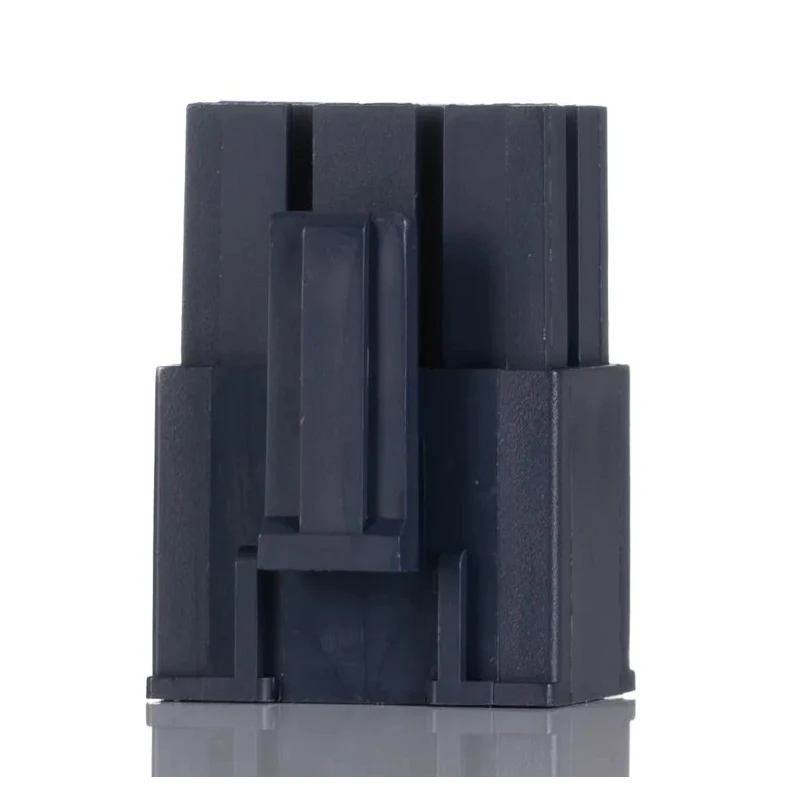

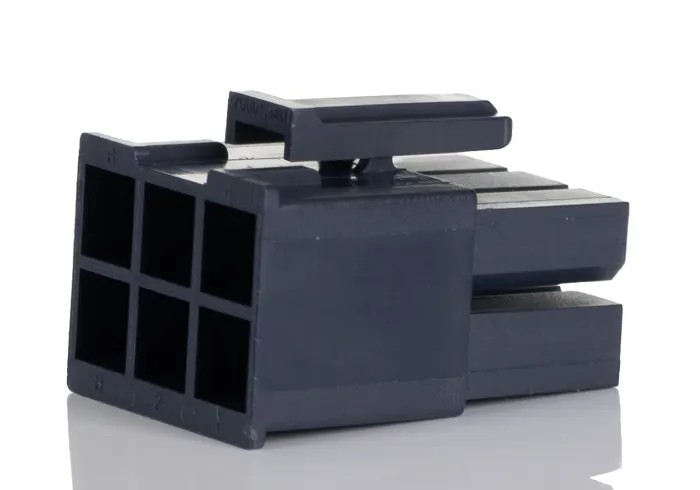

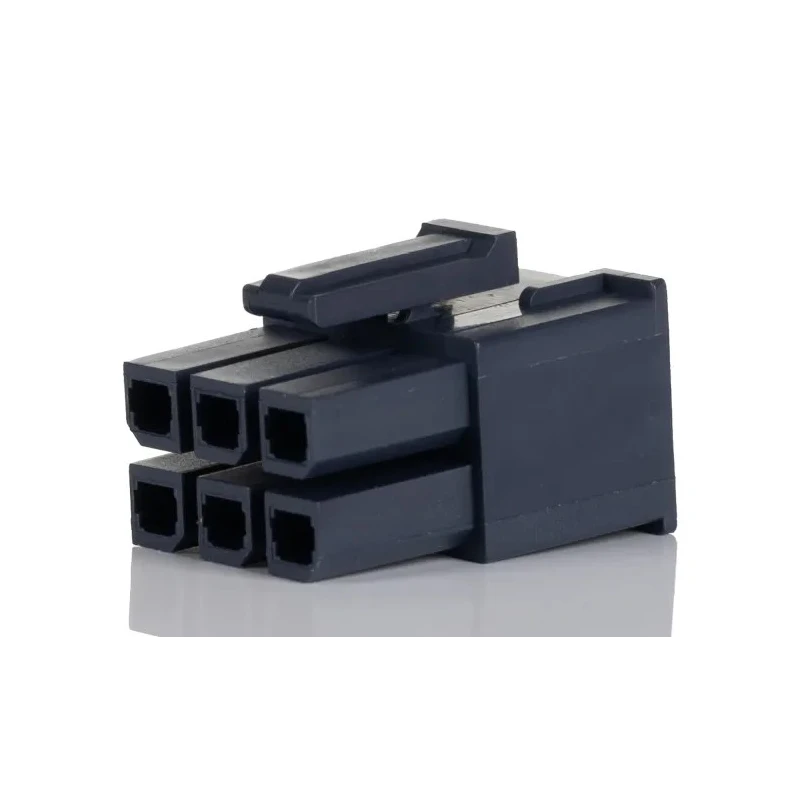

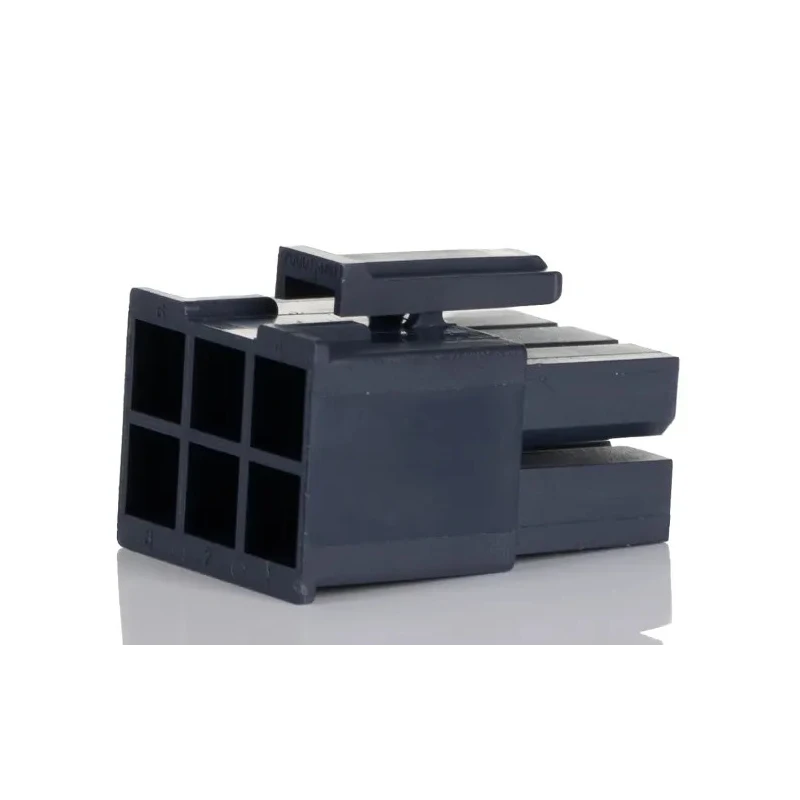

Molex Mega-Fit Male Connector Housing 5.7 mm Pitch 6 Way 2 Row Straight 170001-0106
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 17.75mm |
| Width | 14.26mm |
| Mount Type | PCB |
| Housing Material | Nylon |
| Series | Mega-Fit |
| Number of Rows | 2 |
| Pitch | 5.7mm |
| Number of Contacts | 6 |
| Connector Gender | Male |
Key Features
- Designed for a high current rating of up to 23A per contact.
- Offers a tight 5.7 mm pitch to optimize board packing density.
- Constructed from flame-retardant nylon for safety and durability.
- Features six independent contact points for robust electrical connections.
- Provides fully isolated terminals for protection during handling and connection.
- Includes a positive locking feature with an audible click when mated.
- Compatible with Mega Fit Header series and Mega Fit Crimp Terminals.
- Electrical durability of up to 30 mating cycles allows for multiple connections.
Product Description
Molex 170001-0106 Mega-Fit Male Connector Housing is a 6 way, 2 row straight male connector housing with a pitch of 5.7 mm specifically designed for PCB mounting. This connector is engineered to handle a current rating of 23A per contact, making it ideal for high-power density applications in automotive manufacturing, industrial lighting, telecommunication centres, and commercial appliances.
Constructed using durable flame-retardant nylon material, the housing ensures safety and protection, preventing ignition in the event of a fire. Its design includes six independent contact points fully isolated within the housing for enhanced electrical safety and reliability. The connector also features a positive locking mechanism with an audible click to provide secure mating with compatible headers.
This product supports multiple electrical connections thanks to its 6-way contact arrangement and maximizes board packing density due to its tight 5.7 mm pitch. It is compatible with various Mega Fit Header models such as 172064, 76829, 76825, 172065, and Mega Fit Crimp Terminals 172063, allowing versatile integration in electronic assemblies.
The Connector Housing is rated for electrical durability up to 30 mating cycles, enabling repeated connections without performance degradation. Its straight orientation and PCB mount make it suitable for compact and space-optimized circuit board assemblies across various industrial sectors.
High current rating of 23A per contact supports demanding applications. Flame-retardant nylon housing enhances safety and durability. Positive locking with audible click ensures secure connections. Fully isolated contacts provide electrical protection.
Compatible with multiple Mega Fit headers and crimp terminals. Compact 5.7 mm pitch optimizes PCB layout density. Supports up to 30 mating cycles for long-term reliability. Ideal for automotive, industrial, telecom, and commercial uses.
Explore more high-quality connectors and housing solutions in the Electronics Components category at EnvMart, your reliable partner for industrial and electronic component supplies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex Mega-Fit Male Connector Housing has a current rating of up to 23A per contact, making it suitable for high-power applications.
This model features a tight pitch of 5.7 mm, which helps optimize board packing density.
The connector housing includes six independent contact points, allowing for robust electrical connections.
The housing is constructed from flame-retardant nylon, enhancing safety and durability.
This connector housing is designed with a straight orientation for PCB mounting.
It is rated for electrical durability of up to 30 mating cycles, allowing for repeated connections without performance degradation.
Yes, it is compatible with various Mega Fit Header models and Mega Fit Crimp Terminals, allowing versatile integration in electronic assemblies.
The dimensions of the housing are 17.75 mm in length and 14.26 mm in width.
This model supports PCB mounting, making it suitable for compact circuit board assemblies.
The connector housing features 2 rows, accommodating a compact design.
The connector includes fully isolated terminals and a positive locking feature with an audible click, providing protection during handling and connection.
The country of origin for this connector housing is China.
