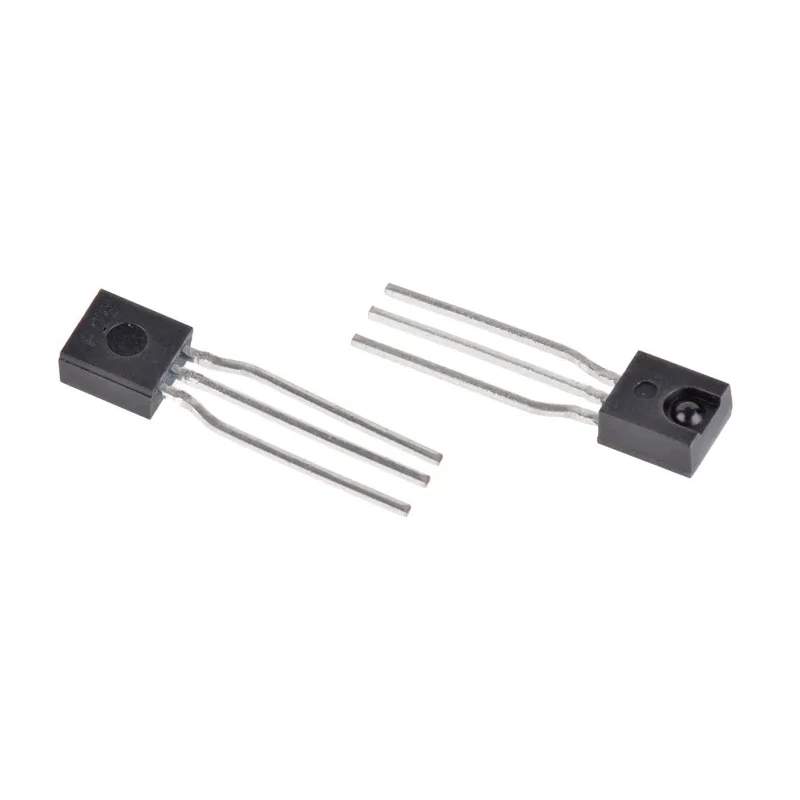

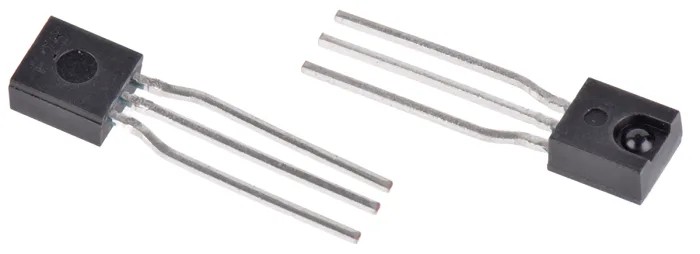

onsemi Infrared Photodetector Amplifier Unit Through Hole Side Looker QSE159
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 5.13mm |
| Length | 4.49mm |
| Model | QSE159 |
| Packaging | Tape & Reel |
| Width | 2.59mm |
| Mount Type | Through Hole |
| Series | QSE |
| Maximum Operating Temperature | 85°C |
| Package Type | Side Looker |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Output Signal Type | HTL Inverted |
| Wavelength of Peak Sensitivity | 880nm |
| Spectrums Detected | Infrared |
| QSE159 | Open-Collector, Inverter output |
| Package material and color | black epoxy |
Key Features
- Detects infrared spectrums with a peak wavelength sensitivity at 880nm.
- Features a side looker package with through hole mount type for easy installation.
- Equipped with three pins and a black epoxy package material.
- Operates reliably between -40°C to 85°C, RoHS compliant for environmental safety.
- Outputs HTL inverted signal type compatible with TTL/LSTTL logic levels.
- Medium wide reception angle of 50° for effective sensing coverage.
- Open-collector inverter output design ensures versatility in signal processing.
- Ideal for use in medical, industrial, and electronic component applications.
Product Description
onsemi QSE159 Infrared Photodetector Amplifier Unit is a highly sensitive bipolar silicon OPTLOGIC® photosensor designed for infrared detection applications. This through hole side looker device features black epoxy packaging that ensures durability and stable operation in various industrial environments.
The unit detects infrared spectrums with a peak sensitivity wavelength of 880nm and outputs an HTL inverted signal type, allowing direct TTL/LSTTL interface compatibility. It offers a medium wide reception angle of 50°, making it suitable for precise sensing needs in medical instrumentation and other electronic applications.
Engineered for robust performance, the QSE159 operates in a temperature range from -40°C to 85°C, maintaining functionality under varied environmental conditions. Its compact size with dimensions of 4.49mm length, 5.13mm height, and 2.59mm width facilitates integration into tight circuit layouts.
The photodetector’s open-collector inverter output improves its versatility across multiple circuits, accommodating various design requirements. Furthermore, compliance with RoHS regulations guarantees the product meets environmental and safety standards.
This product supports industrial, laboratory, medical instrumentation, and electronic component manufacturing contexts where reliable infrared detection is required. Detects infrared spectrums with peak sensitivity at 880nm.
Side looker via through hole pins for straightforward PCB mounting. Black epoxy package for enhanced durability and environmental resistance. Wide operating temperature range from -40°C to 85°C for diverse applications. HTL inverted output with open collector inverter for flexible signal interfacing.
Medium wide 50° reception angle for broad detection coverage. Compact form factor suitable for constrained board spaces. RoHS compliant ensuring environmentally responsible manufacturing. Applicable in medical instrumentation and electronic sensing applications.
Explore more photodiode and optoelectronics components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodetector has a peak wavelength sensitivity of 880nm, allowing it to effectively detect infrared spectrums.
This model operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
It outputs an HTL inverted signal type, which is compatible with TTL/LSTTL logic levels, enhancing its versatility in signal processing.
The dimensions of this photodetector are 4.49mm in length, 5.13mm in height, and 2.59mm in width, allowing for compact integration into circuit layouts.
This model features three pins, facilitating its connection in various circuit designs.
The QSE159 is designed for through hole mounting, which simplifies installation on printed circuit boards (PCBs).
It has a medium wide reception angle of 50°, providing effective sensing coverage.
Yes, this model is RoHS compliant, ensuring it meets environmental and safety standards.
The QSE159 features a black epoxy package material, which enhances its durability and environmental resistance.
This photodetector is applicable in medical instrumentation, industrial settings, and electronic component manufacturing where reliable infrared detection is required.
It has an open-collector inverter output design, which allows for flexibility in various circuit configurations.
This model is part of the QSE series, which is designed for infrared detection applications.
