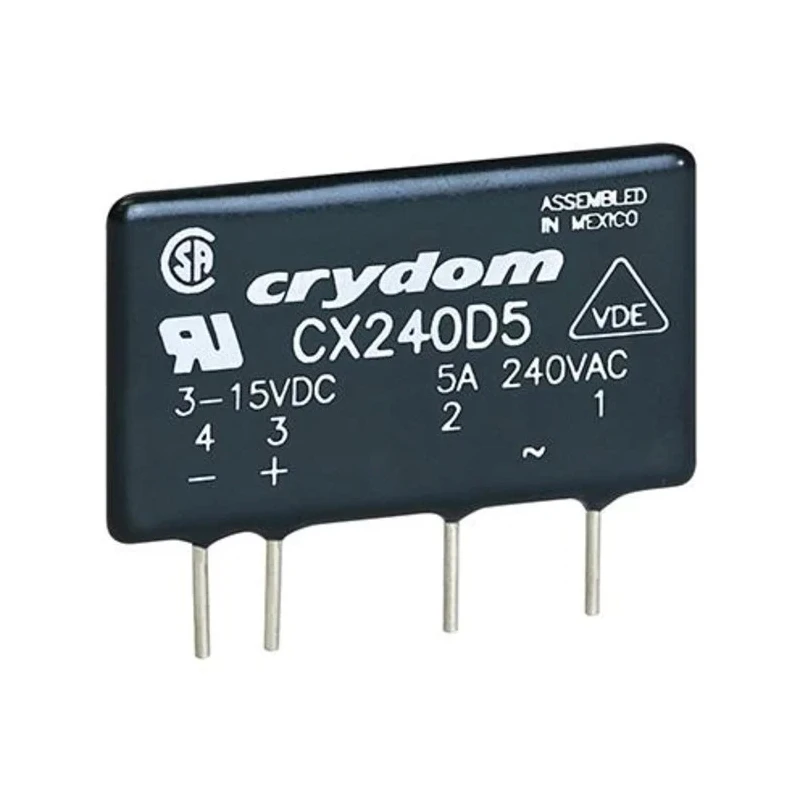

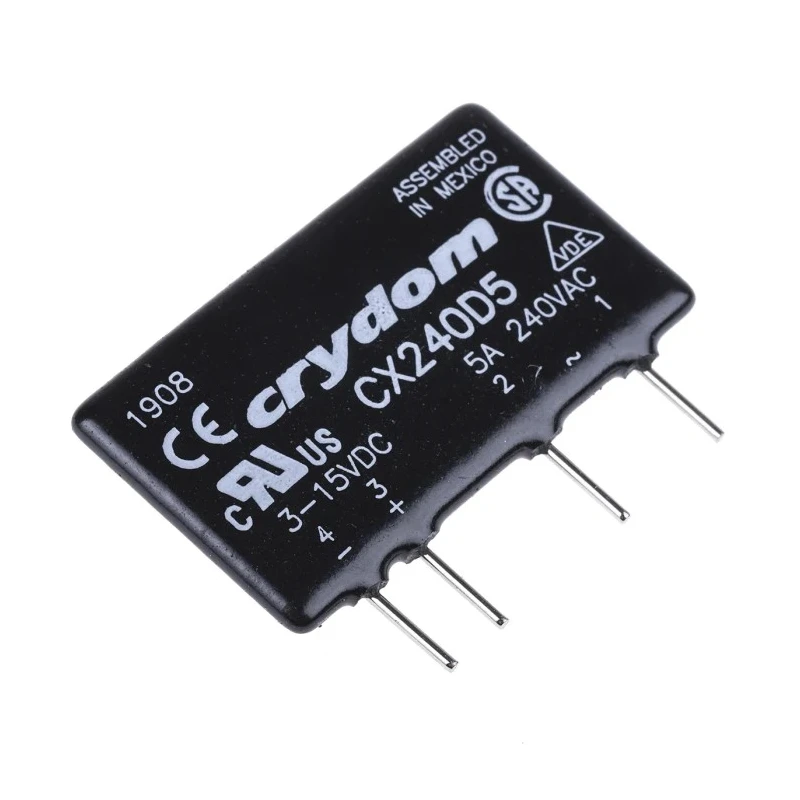

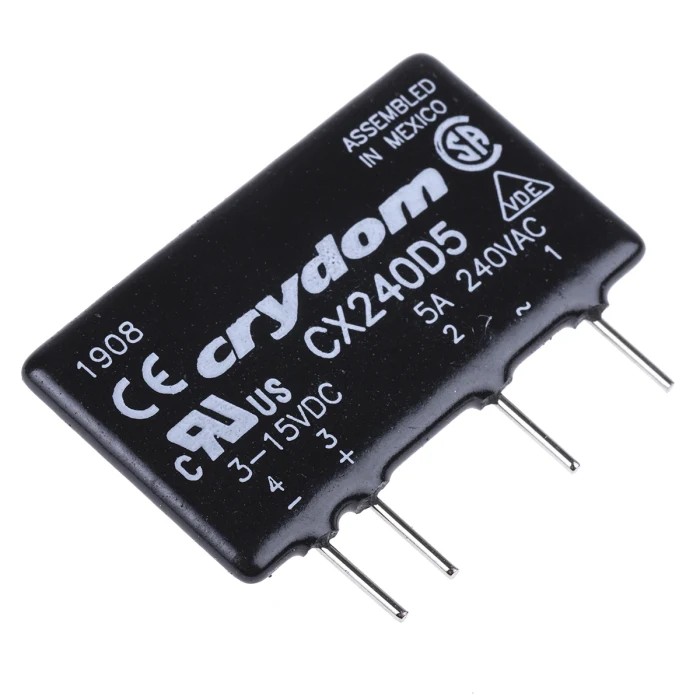

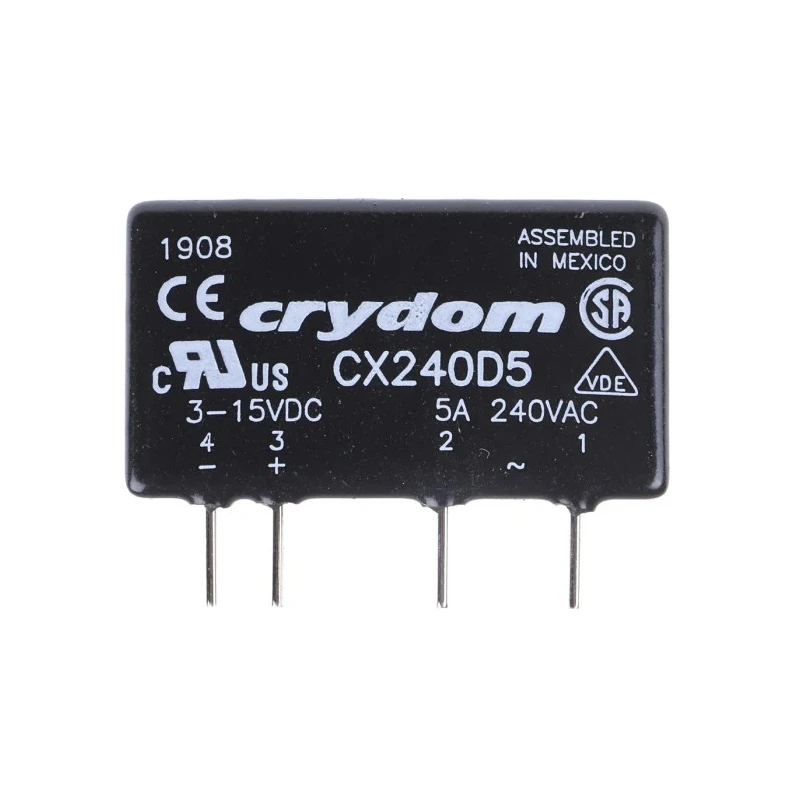

Crydom Crydom CX Series Solid State Relay 5 A Load PCB Mount 280 V AC Load 15V DC Control CX240D5

Crydom CX240D5 Solid State Relay offers reliable switching for a wide range of industrial, automation, and electronics applications. This relay efficiently handles load currents up to 5 A with a wide operating AC load voltage range of 12 to 280 V. The control voltage range of 3 to 15 V DC makes it compatible with various control systems.

The zero voltage turn-on switching function minimizes electrical noise and prolongs system life by avoiding switching transients. The relay utilizes a Silicon Controlled Rectifier (SCR) output type to provide fast and silent switching without mechanical parts, offering high durability and low maintenance compared to electromechanical relays.

This device operates reliably within a temperature range of -30°C to 80°C, making it suitable for use in rugged environments including industrial controls, medical devices, consumer electronics, and aerospace systems. Low off-state leakage current of 0.1 mA RMS ensures energy-efficient operation.

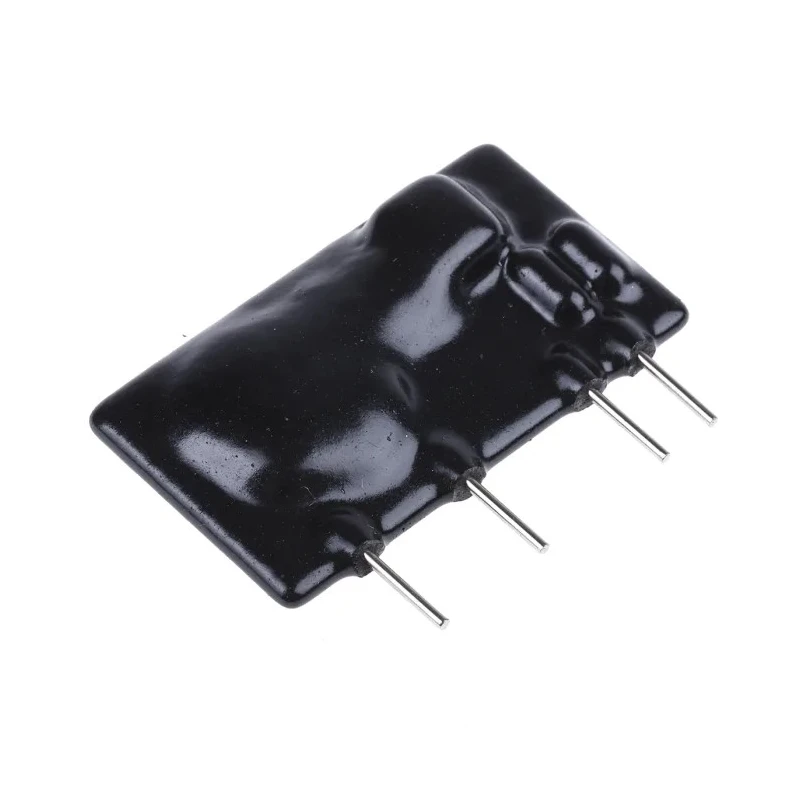

The relay’s housing is made of a thermally conductive epoxy material to insulate and protect the live components, improving safety and reliability in critical applications. The solder-free PCB terminal pins simplify installation by allowing direct press-fit onto PCBs, streamlining manufacturing processes.

The relay supports a maximum load current of 5 amperes for effective low-power system control. Compact design conserves PCB space while maintaining full functionality. Wide load voltage range supports diverse AC operating voltages from 12 V AC to 280 V AC.

Robust control voltage operation between 3 V DC and 15 V DC. Zero voltage turn on minimizes switching noise and stress on circuit components. Wide operating temperature range from -30°C to 80°C allows use in harsh conditions.

Low off-state leakage current reduces power waste when relay is off. SCR output ensures stable and fast switching without mechanical wear. Thermally conductive epoxy housing insulates and protects components. Solder-free PCB terminal pins facilitate easy installation.

This Crydom CX Series Solid State Relay is ideal for use across industrial automation, laboratory equipment, HVAC machines, consumer electronics, aerospace engineering, and medical device control systems. Its durable solid-state design ensures long service life and reliable performance in critical control applications. Explore the comprehensive range of Crydom relays and components at EnvMart for your technical and industrial requirements.
