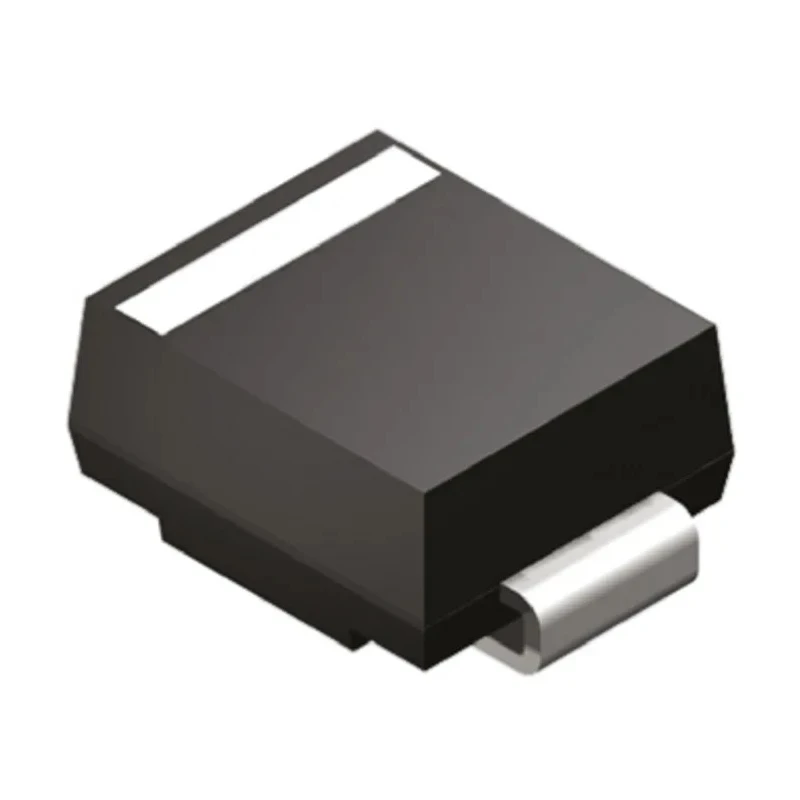

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ26CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.45mm |
| Length | 4.75mm |
| Model | SMBJ26CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 42.1V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28.9V |
| Maximum Reverse Stand-off Voltage Vwm | 26V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 14.3A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This diode provides excellent clamping capability for voltage transient protection.
- Operates bi-directionally, suitable for protecting sensitive electronics from voltage surges.
- Features a minimum breakdown voltage of 28.9 V and a maximum reverse stand-off voltage of 26 V.
- Compact surface mount DO-214 package with dimensions approximately 4.75 mm length, 3.95 mm width, and 2.45 mm height.
- Functions reliably across a wide temperature range from -55°C to 150°C operating temperature.
- Maximum peak pulse current rating of 14.3 A ensures robust transient suppression performance.
- Low maximum reverse leakage current of 5 μA minimizes power loss in circuits.
- Glass-passivated junction construction for durability and stability.
Product Description
Taiwan Semiconductor SMBJ26CA is a high-performance 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode providing 600 W peak pulse power dissipation. Packaged in a compact 2-pin DO-214 surface mount package, this diode is specifically engineered to protect sensitive electronic circuits from voltage spikes and transient surges.
The device features a minimum breakdown voltage of 28.9 V and a maximum reverse stand-off voltage of 26 V, optimized for low incremental surge resistance and fast response time. Its glass-passivated junction technology provides stable and reliable protection under harsh conditions.
Operating temperature range extends from -55°C to 150°C, making it suitable for industrial, automotive, and commercial electronic applications. The diode is rated with a peak pulse current of 14.3 A and a maximum reverse leakage current of just 5 μA, minimizing power loss and ensuring efficiency.
Physical dimensions of 4.75 mm length, 3.95 mm width, and 2.45 mm height in a DO-214 package enable easy integration on printed circuit boards using surface mount technology. Excellent voltage clamping capability for transient suppression.
Bi-directional operation for comprehensive surge protection. Glass-passivated junction for reliable long-term performance. Compact and standardized DO-214 surface mount package. Wide operating temperature range to suit demanding environments.
High peak pulse power and current ratings. Low reverse leakage current reduces power wastage. Meets industry standards including FBI and UL94V-0 ratings. Ideal for electronics manufacturing, transient suppression, and power supply protection sectors.
Compatible with automated surface mount assembly processes.
Explore a broad range of TVS Diodes and related semiconductor components within the EnvMart Electronics & Electricals category to find optimal solutions for your electronic protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode is 600 W.
The minimum breakdown voltage is 28.9 V.
The maximum reverse stand-off voltage is 26 V.
The maximum peak pulse current rating is 14.3 A.
The dimensions of the DO-214 package are approximately 4.75 mm in length, 3.95 mm in width, and 2.45 mm in height.
The operating temperature range extends from -55°C to 150°C.
The maximum reverse leakage current is 5 μA.
This model supports surface mounting.
This diode meets FBI standards.
This model uses a single diode configuration.
The clamping voltage is 42.1 V.
Yes, this diode operates bi-directionally, providing comprehensive surge protection.
