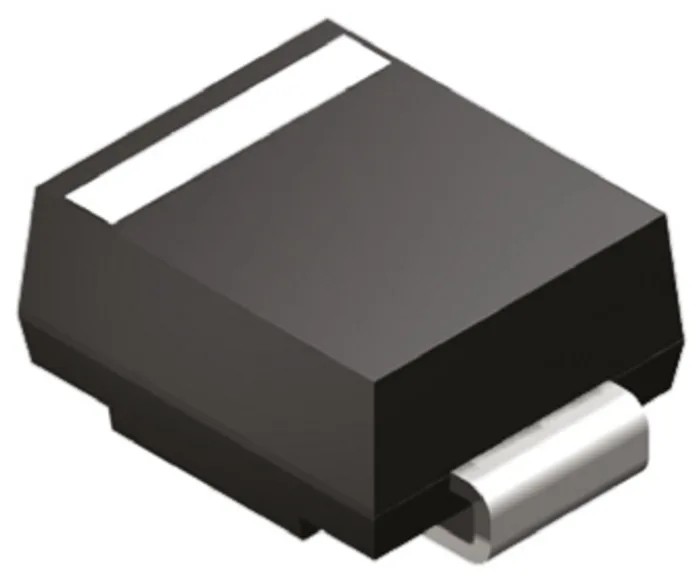

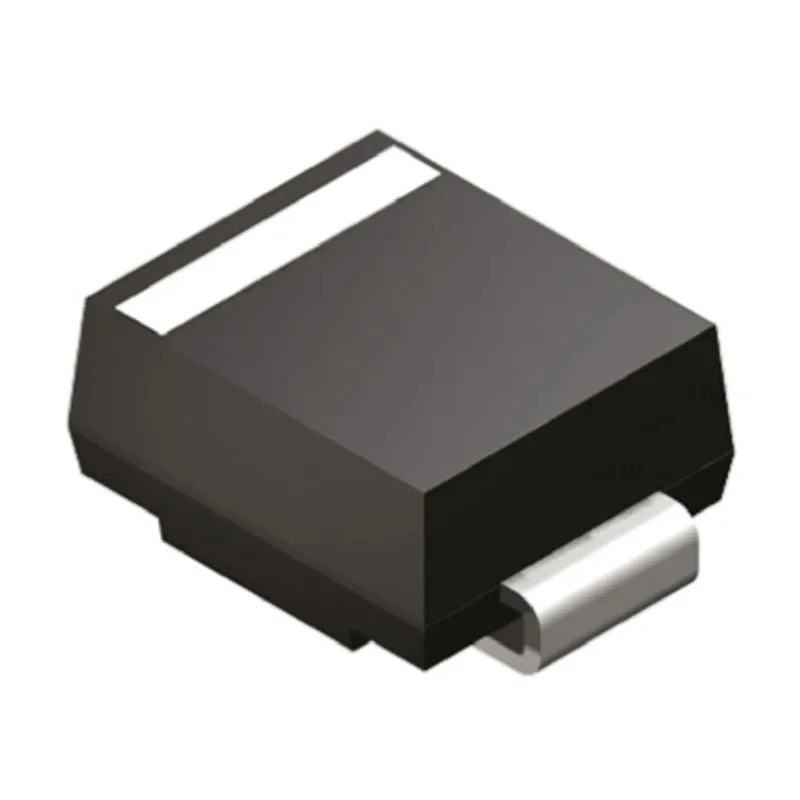

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode, 600 W Peak Pulse Power Dissipation, 2-Pin DO-214 SMBJ40A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.237mm |
| Length | 4.57mm |
| Model | SMBJ40A |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 64.5V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 44.4V |
| Maximum Reverse Stand-off Voltage Vwm | 40V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.3A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Offers uni-directional diode configuration for surge protection.
- Features a minimum breakdown voltage of 44.4 V and maximum reverse stand-off voltage of 40 V.
- Supports a peak pulse current of 9.3 A with fast response time.
- Compact surface mount design with package dimensions optimized for PCB integration.
- Operates reliably from -55°C to 150°C ensuring robust performance.
- Clamping voltage rating of 64.5 V guarantees protection against voltage spikes.
- Low reverse leakage current of 5 μA to minimize power loss during operation.
- Single element per chip design with glass-passivated junction technology.
Product Description
Taiwan Semiconductor SMBJ40A is a 1-element uni-directional transient voltage suppressor (TVS) diode built for high reliability in protecting sensitive electronic circuits from voltage spikes. This device features a peak pulse power dissipation capability of 600 W, enabling it to absorb high transient energy events effectively. Packaged in a compact 2-pin DO-214 surface mount format, it supports straightforward PCB assembly and space-saving installations.
The SMBJ40A offers excellent clamping voltage performance at 64.5 V and a minimum breakdown voltage of 44.4 V, with a maximum reverse stand-off voltage of 40 V. It can handle peak pulse currents up to 9.3 A, thus providing strong surge current handling capability in demanding environments.
With a wide operating temperature range from -55°C to 150°C and a low maximum reverse leakage current of only 5 microamperes, this diode is suitable for robust industrial and automotive systems where reliability is critical. Its single element glass-passivated junction design ensures fast response times and protects electronic circuits from Electrostatic Discharge (ESD) and other transient voltage events.
The small form factor with a length of 4.57 mm, width of 3.94 mm, and height of 2.237 mm makes this diode ideal for use in compact electronic assemblies requiring protection against surges and spikes.
This TVS diode complies with FBI standards and carries a UL94V-0 flammability classification for enhanced safety. It is an excellent choice for power supply lines, industrial controls, communication devices, and general electronic surge protection applications.
Uni-directional TVS diode providing surge and ESD protection. 600 W peak pulse power dissipation for high energy transient absorption. Surface mount DO-214 package for efficient PCB mounting. Wide operating temperature range from -55°C to 150°C.
Low reverse leakage current minimizes power dissipation. Single element per chip with glass-passivated junction for fast response. Compact physical dimensions optimized for space-constrained designs. Compliance with FBI and UL94V-0 flame resistance standards.
Applicable for industrial, automotive, and consumer electronics protection. Explore more semiconductor components and TVS Diodes in the Electronics & Electricals category on EnvMart for enhanced circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMBJ40A has a peak pulse power dissipation capability of 600 W, allowing it to effectively absorb high transient energy events.
The clamping voltage rating for the SMBJ40A is 64.5 V, which helps protect against voltage spikes.
The maximum reverse stand-off voltage for this model is 40 V, ensuring it operates safely under specified conditions.
This diode operates reliably within a temperature range of -55°C to 150°C, making it suitable for various environments.
The SMBJ40A can handle a maximum peak pulse current of 9.3 A, providing strong surge current handling capability.
The SMBJ40A has dimensions of 4.57 mm in length, 3.94 mm in width, and 2.237 mm in height, suitable for compact designs.
This model features a uni-directional diode configuration, designed for surge protection applications.
The minimum breakdown voltage for the SMBJ40A is 44.4 V, which is critical for its surge protection functionality.
The maximum reverse leakage current for this diode is 5 μA, minimizing power loss during operation.
The SMBJ40A is packaged in a compact 2-pin DO-214 surface mount format, facilitating efficient PCB assembly.
This diode complies with FBI standards and carries a UL94V-0 flammability classification for enhanced safety.
The SMBJ40A is suitable for applications in power supply lines, industrial controls, communication devices, and general electronic surge protection.
