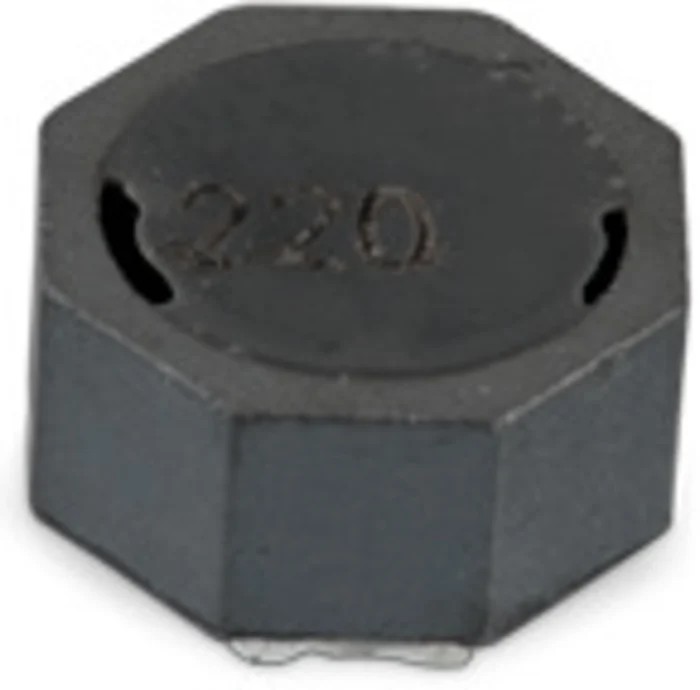

Wurth Elektronik WE-TPC 0804 Shielded Surface Mount Inductor with Ferrite Core 220 μH ±30% 720 mA Max DC Current 744071221
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 8mm |
| Length | 8mm |
| Depth | 4.3mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 220μH |
| Package/Case | 0804 |
| Maximum DC Current | 720mA |
| Maximum DC Resistance | 610mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsRoHS, IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH |
Key Features
- The 0804 package size supports compact PCB designs.
- Magnetically shielded construction minimizes leakage fields for sensitive circuits.
- Core material is ferrite suitable for high-frequency applications.
- Operating temperature range from -40°C to 125°C ensures industrial reliability.
- Maximum DC resistance is 610 mΩ enhancing efficiency at rated current.
- Complies with automotive standard AEC-Q200 for robust performance.
- Supports a maximum self-resonant frequency of 5 MHz for broad applications.
- Termination style is surface mount ensuring compatibility with SMT assembly.
Product Description
Wurth Elektronik 744071221 is a shielded surface mount inductor with a ferrite core featuring 220 μH inductance and ±30% tolerance, capable of handling a maximum DC current of 720 mA.
This 0804 package size inductor is part of the WE-TPC series, designed for extremely flat profiles and high current capability. The magnetic shielding effectively reduces leakage fields, making it suitable for sensitive electronic environments.
The operating temperature ranges from -40°C to 125°C, enabling reliable performance in demanding industrial and automotive conditions. Its maximum DC resistance is 610 mΩ which contributes to efficient current handling.
The inductor complies with the AEC-Q200 automotive standard and international standards including RoHS, IEC 60286-3, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, and REACH, ensuring regulatory compliance and safety.
The core material is ferrite, and the device supports a maximum self-resonant frequency of 5 MHz suitable for a wide range of applications such as portable power devices (PDAs, digital cameras), DC/DC converters, embedded PCs, and mobile telemetric data gathering.
The 0804 package allows compact, low-profile surface mounting on printed circuit boards. Magnetically shielded construction limits interference and ensures circuit integrity. Wide temperature tolerance ensures application in harsh environments.
SMD termination style facilitates modern automated PCB assembly. Tape and reel packaging supports high-volume manufacturing. This component is sourced from China and is offered new for industrial and commercial electronic manufacturing needs.
For more products in the Surface Mount Inductor category and technical solutions from Wurth Elektronik, please explore EnvMart’s extensive electronics components range.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 220 μH with a tolerance of ±30%.
It can handle a maximum DC current of 720 mA.
The operating temperature range is from -40°C to +125°C.
The maximum self-resonant frequency is 5 MHz.
This inductor is in an 0804 package size.
The maximum DC resistance is 610 mΩ.
The core material is ferrite, which is suitable for high-frequency applications.
Yes, it complies with the AEC-Q200 automotive standard.
The termination style is surface mount, which ensures compatibility with SMT assembly.
It is packaged in tape and reel, which supports high-volume manufacturing.
It complies with several standards including RoHS, IEC 60286-3, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, and REACH.
This inductor is suitable for applications such as portable power devices, DC/DC converters, embedded PCs, and mobile telemetric data gathering.
