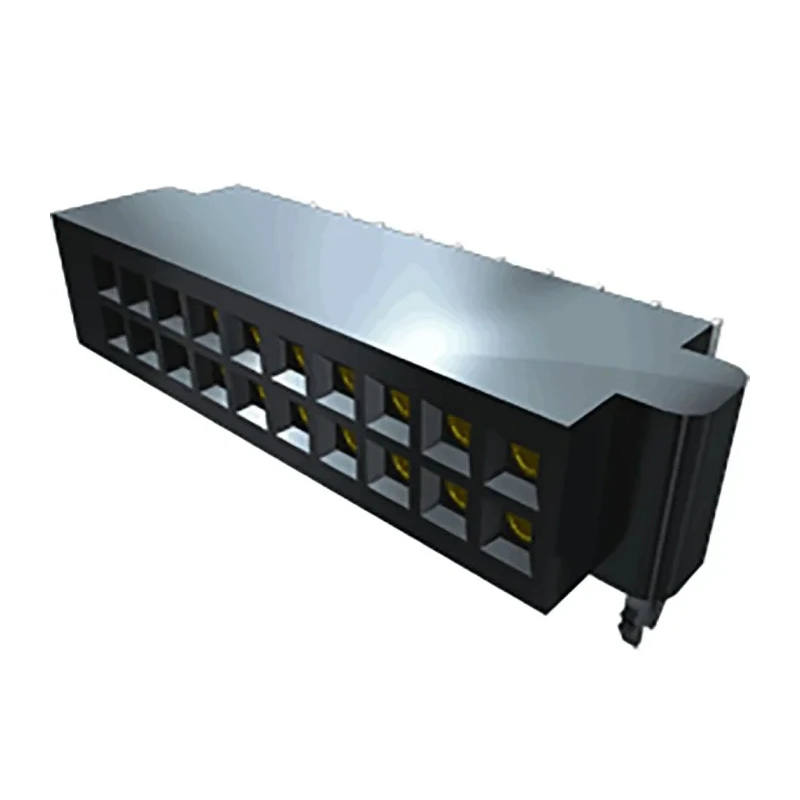

Samtec Straight Surface PCB Socket, 10-Contact, 2 Row, 1.27 mm Pitch, Solder Termination SFMH-105-02-L-D-LC

Samtec SFMH-105-02-L-D-LC is a high-quality straight surface mount PCB socket featuring 10 contacts arranged in 2 rows with a 1.27 mm pitch. It is engineered for reliable board-to-board interconnection in electronic assemblies.

This socket utilizes a durable Liquid Crystal Polymer housing material, which provides excellent mechanical strength and thermal resistance. The phosphor bronze contacts with gold plating ensure superior electrical conductivity and resistance to corrosion.

Rated to handle a current of 2.6 A, the connector supports a wide operating temperature range from -55°C to 125°C, making it suitable for various industrial, electronic, and commercial applications.

The termination type employs solder, allowing secure mounting on PCBs with straight orientation and surface mount horizontal tails. The socket includes options for weld tab and locking clips to enhance stability and mechanical retention during operation.

Compliant with RoHS standards, this product supports environmental and safety requirements. It mates efficiently with FSH terminal strips, facilitating seamless integration into existing PCB connector systems.

Reliable 10-contact, 2-row configuration with 1.27 mm pitch. Phosphor bronze gold-plated contacts yield excellent conductivity. Durable Liquid Crystal Polymer housing withstands harsh conditions. Solder termination for solid mechanical and electrical connection.

Wide operating temperature range from -55°C to 125°C. Compatible with standard FSH terminal strips. Includes optional weld tab and locking clip for secure mounting. Complies with RoHS environmental standards. Ideal for use in electronic components manufacturing and assembly.

This Samtec PCB socket is a robust component choice for electronic designers seeking reliable, board-to-board connections. Browse EnvMart for more Samtec connectors and PCB Socket options suited to your industrial or commercial needs.
