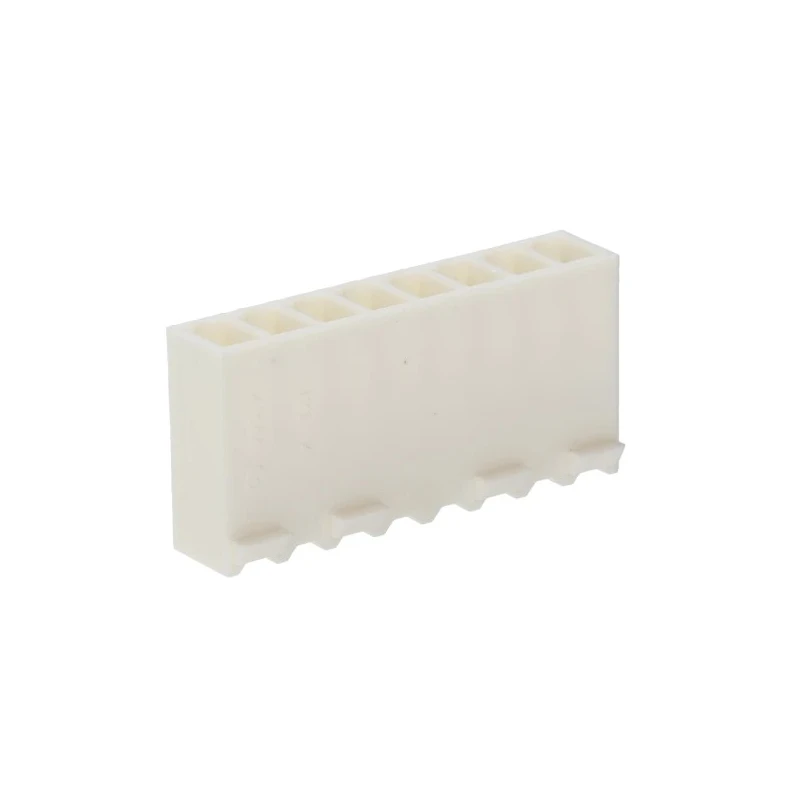

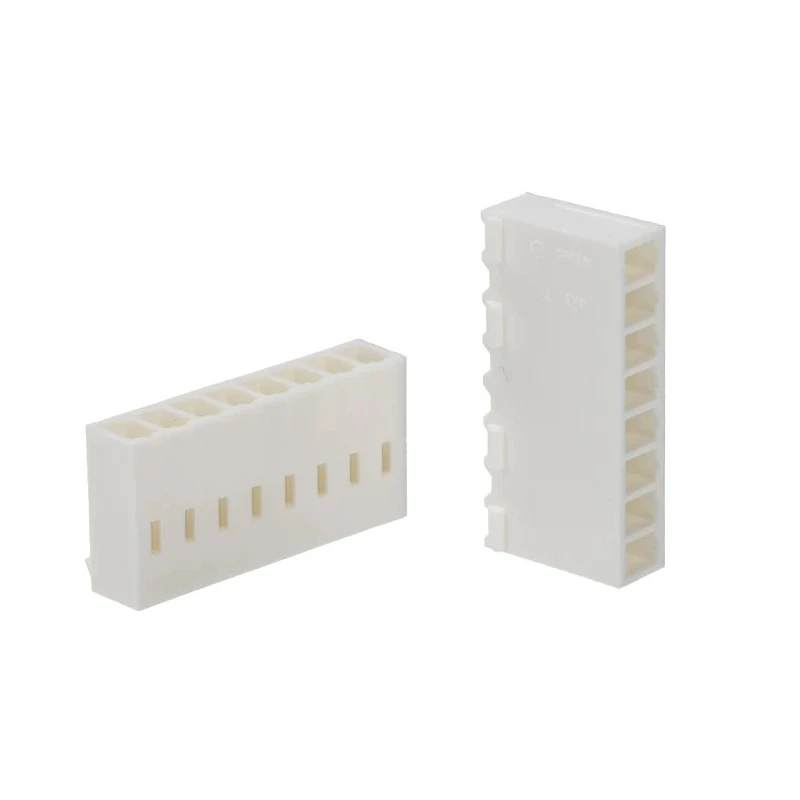

Molex KK 396 Female Connector Housing 3.96 mm Pitch 8 Way 1 Row Straight 09-50-8081
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 32.56mm |
| Width | 8.07mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Number of Contacts | 8 |
| Connector Gender | Female |
Key Features
- The connector housing is made from durable polyethylene terephthalate (PET) material for longevity.
- It supports cable mount use with a straight body orientation, facilitating easy and secure installation.
- The 3.96 mm pitch ensures compact, reliable connections with KK 396 series crimp terminals.
- Compatible with multiple KK 396 crimp terminal models for versatile connectivity options.
- Its dimensions are 32.56 mm in length and 8.07 mm in width, suitable for various electrical and electronic applications.
- The housing is ideal for signal transmission and electrical connections in automation and mechanical assemblies.
- Operating temperature range is -40°C to +105°C, making it reliable for diverse environmental conditions.
- This connector housing provides secure female contacts in an 8 position, single row layout.
Product Description
Molex 09-50-8081 KK 396 Female Connector Housing is a specialized cable mount connector housing engineered for precise and reliable electrical connections. With a pitch of 3.96 mm and a configuration of 8 contacts in a single straight row, it accommodates KK 396 series crimp terminals efficiently.
Constructed from polyethylene terephthalate (PET), the housing offers durability and resistance to environmental stress, ensuring longevity in industrial, automation, and electronic manufacturing environments. Its straight orientation facilitates straightforward installation in cable harnesses and wiring assemblies.
The compact 3.96 mm pitch allows for dense wiring layouts without sacrificing connection security. This housing supports multiple KK 396 crimp terminals, enhancing versatility in wire-to-wire and wire-to-board applications.
Typical uses include signal transmission in automation systems, electrical circuitry in industrial equipment, and mechanical assembly of electronic modules. The connector reliably withstands temperatures from -40°C to +105°C, providing consistent performance across varying operational conditions.
The connector housing is made from durable polyethylene terephthalate (PET) material for longevity. Supports cable mount applications with straight body orientation. 3.96 mm pitch ensures compact, secure connections. Compatible with various KK 396 crimp terminal models.
Measures 32.56 mm length and 8.07 mm width for versatile integration. Operates reliably between -40°C and +105°C. Provides secure female contacts in an 8 way, 1 row layout.
This Molex KK 396 series female connector housing is essential for professionals working in electrical, electronic, and automation fields seeking dependable wire connection solutions. It offers technical excellence and durability required for modern manufacturing and assembly processes.
Explore more Connector Housings and electronic components at EnvMart for your precise application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm, allowing for compact and reliable connections with KK 396 series crimp terminals.
It features 8 contacts arranged in a single row configuration, providing secure female connections.
The housing measures 32.56 mm in length and 8.07 mm in width, making it suitable for various applications.
The housing is constructed from polyethylene terephthalate (PET), which offers durability and resistance to environmental stress.
It operates reliably within a temperature range of -40°C to +105°C, suitable for diverse environmental conditions.
Yes, it supports cable mount applications with a straight body orientation, facilitating easy installation.
It is compatible with multiple KK 396 series crimp terminal models, enhancing its versatility in connectivity.
This model has a straight orientation, which aids in straightforward installation in cable harnesses and wiring assemblies.
It is designed for signal transmission in automation systems and electrical circuitry in industrial equipment and mechanical assemblies.
The connector gender is female, providing secure connections for the corresponding crimp terminals.
The country of origin for this connector housing is India.
The compact 3.96 mm pitch allows for dense wiring layouts without sacrificing connection security, making it suitable for various applications.
