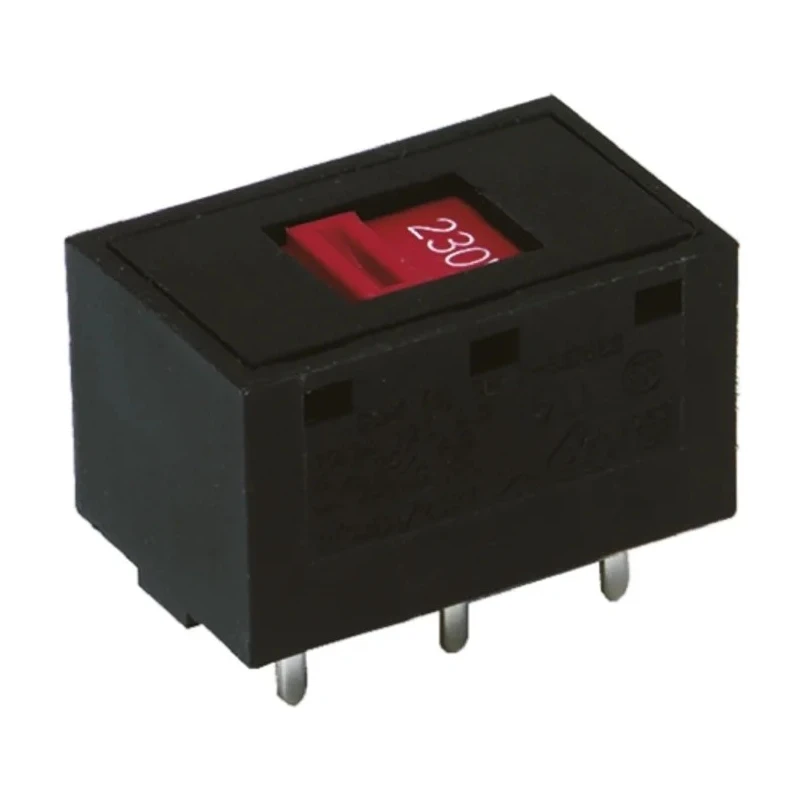

C & K Through Hole Slide Switch DPDT 5A Fibreglass Reinforced Polyethylene Terephthalate V80212MS02Q
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Operating Temperature Range | -30 to +85°C |
| Length | 26.19mm |
| Model | V80212MS02Q |
| Depth | 15.75mm |
| Width | 16.5mm |
| Mount Type | Through Hole |
| Series | V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | PC Terminal |
| Standards/Approvals | RoHS, UL |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 10000Cycles |
| Contact AC Voltage | 250V ac |
| Electrical Life | 10000 cycles at full load |
| Actuator Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Nylon 6/6 top plate and housing (UL94V-2) Actuator | glass filled polyester |
Key Features
- DPDT contact configuration enabling dual pole, double throw switching.
- Through hole mount type for secure PCB integration.
- Rated for switch contact current of 5 amperes.
- Actuator made from fibreglass reinforced polyethylene terephthalate for high strength.
- Compatible with contact AC voltage up to 250V and DC voltage up to 28V.
- Mechanical life rated at 10,000 cycles ensuring lasting operation.
- Operating temperature range from -30°C to +85°C suitable for various environments.
- Non-illuminated switch with PC terminal type for connection.
Product Description
C & K V80212MS02Q Through Hole Slide Switch DPDT 5A is designed for electrical and automation applications requiring a robust and reliable switching solution. Featuring a dual pole double throw (DPDT) contact configuration, it supports a switch contact current of 5A with contact voltages up to 250V AC and 28V DC.
The switch mounts through hole on PCBs and uses PC terminal connectors for stable and secure integration. The actuator and housing are constructed from fibreglass reinforced polyethylene terephthalate and glass filled polyester materials, offering excellent durability and resistance in demanding environments.
This Slide Switch is rated for a mechanical life of 10,000 cycles, providing long-term reliability for industrial, laboratory, HVAC, manufacturing, and electrical automation systems. It operates within a temperature range of -30°C to +85°C, making it suitable for a wide range of ambient conditions.
The switch configuration is On-On without illumination, and compact dimensions of 26.19 mm length, 16.5 mm width, and 15.75 mm depth ensure ease of installation on densely packed circuits. Compliance with RoHS and UL standards guarantees safety and regulatory adherence.
DPDT contact configuration for dual pole switching applications. Through hole mount suitable for printed circuit boards. Rated for 5A switch contact current capacity. Fibreglass reinforced polyethylene terephthalate actuator material for enhanced durability.
Supports contact voltages of 250V AC and 28V DC. Mechanical life of 10,000 cycles ensures extended usage. Operating temperature range from -30°C to 85°C suitable for diverse environments. Non-illuminated with reliable PC terminals.
Compact dimensions for easy PCB integration. RoHS and UL approved for compliance and safety.
This product is ideal for use in industrial controls, electronic devices, automation panels, and other equipment requiring precise switching control. EnvMart customers can explore additional C & K switch products for comprehensive solutions in the electrical and electronics domain.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a dual pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
It is rated for a switch contact current of 5 amperes, suitable for various electrical applications.
This model supports contact AC voltage up to 250V and DC voltage up to 28V.
The mechanical life of the switch is rated at 10,000 cycles, ensuring long-term reliability in operation.
It operates within a temperature range of -30°C to +85°C, making it suitable for various environments.
This switch is designed for through hole mounting, allowing for secure integration onto printed circuit boards (PCBs).
The actuator is made from fibreglass reinforced polyethylene terephthalate, providing enhanced strength and durability.
The dimensions of the switch are 26.19 mm in length, 16.5 mm in width, and 15.75 mm in depth.
It uses PC terminal connectors for stable and secure connections during installation.
No, this model is non-illuminated, featuring an On-On switch configuration.
It complies with RoHS and UL standards, ensuring safety and regulatory adherence.
This slide switch is suitable for industrial controls, electronic devices, automation panels, and other equipment requiring precise switching control.
