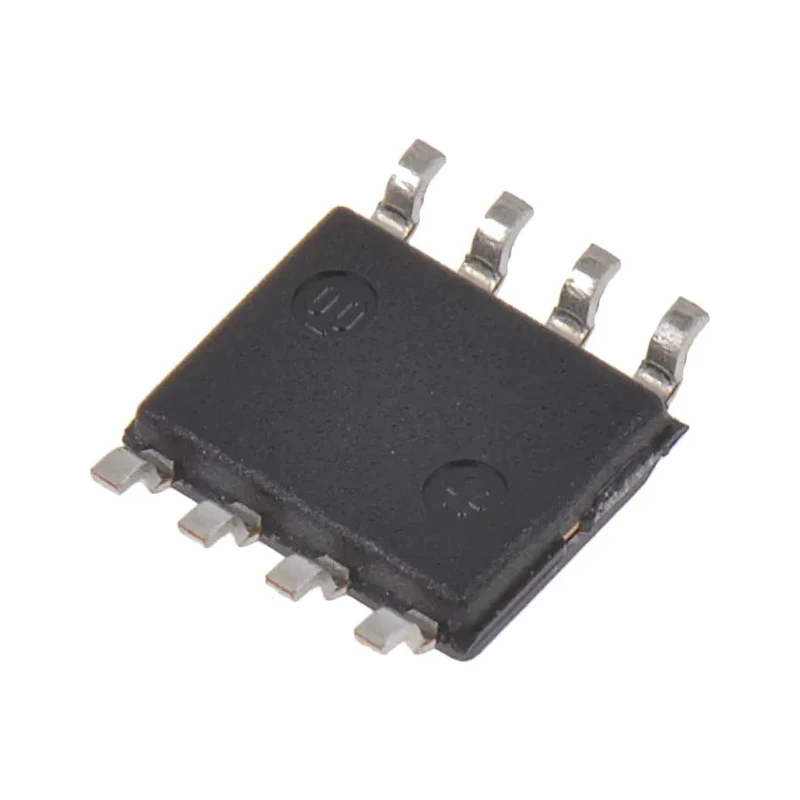

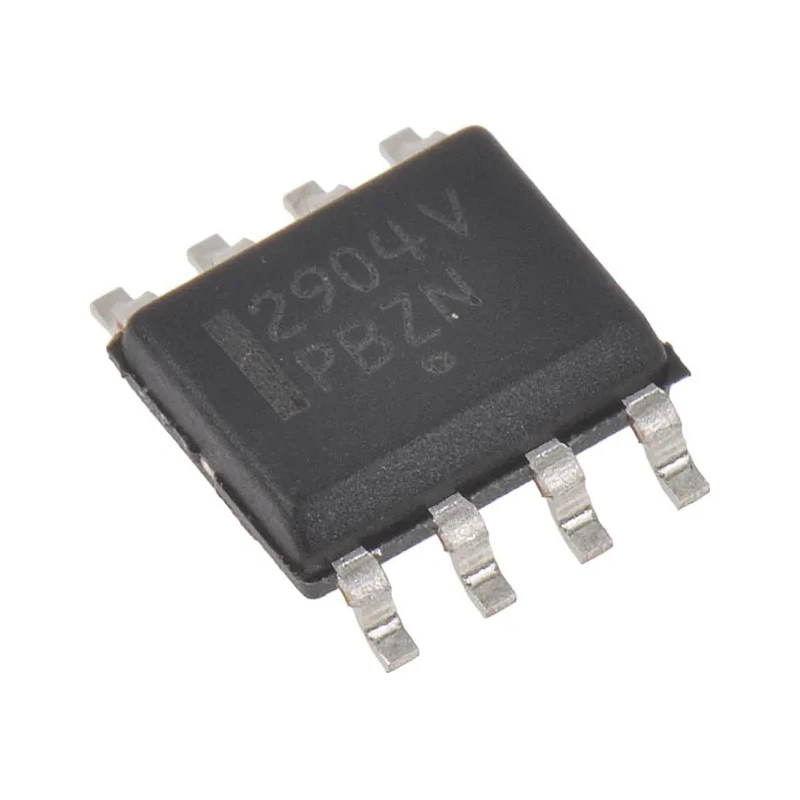

onsemi Operational Amplifier Dual Channel 8-Pin SOIC 3V to 32V LM2904VDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 5mm |
| Model | LM2904VDR2G |
| Width | 4mm |
| Mount Type | Surface |
| Series | LM2904 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 3V |
| Input Bias Current | -250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Input Offset Current | 200 nA |
| Single Supply Operation | 3V - 32V |
Key Features
- Low input bias currents enhance precision performance.
- Single supply operation simplifies integration in diverse circuits.
- Internally compensated for stability and reliability.
- Output current capability up to 40 mA enables driving various loads.
- Wide operating temperature range from -40°C to 125°C ensures robust use.
- Includes ESD clamps on inputs to protect against electrostatic discharge.
- Common mode input range extends to negative supply eliminating offset bias requirements.
- AEC-Q100 automotive standard qualified for high reliability.
Product Description
The onsemi LM2904VDR2G operational amplifier is a dual channel device housed in a compact 8-pin SOIC package. Designed for versatility, it operates on single supply voltages ranging from 3V to 32V, making it suitable for numerous industrial and automotive applications.
This device features low input bias currents and an internally compensated true differential input stage, delivering precise and stable amplification. The input stage includes ESD clamps, enhancing device robustness by protecting against electrostatic discharge events.
The LM2904VDR2G provides an output current capacity of 40 mA, facilitating the drive of a variety of output loads. Its common mode input voltage range extends to the negative supply, which eliminates the need for additional biasing components, simplifying circuit designs.
With a wide operating temperature range from -40°C to 125°C and compliance with the AEC-Q100 automotive standard, this amplifier is well-suited for demanding automotive and industrial environments.
Low input bias currents for enhanced precision. Single supply operation from 3V to 32V. Internally compensated for stable operation. ESD protection clamps on all inputs. Output current up to 40 mA supporting diverse loads.
Common mode input voltage includes negative supply range. Compact 8-pin SOIC package dimensions. Automotive grade AEC-Q100 certified. Robust operation across -40°C to 125°C. Applicable in integrators, comparators, and voltage regulators.
This operational amplifier is widely used in electronics manufacturing, automotive systems, industrial control, and instrumentation applications. It combines performance with reliability to meet complex design needs.
Explore more onsemi products within the Operational Amplifier category on EnvMart for complementary solutions and related semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on single supply voltages ranging from 3V to 32V.
It has an output current capability of up to 40 mA, allowing it to drive various loads.
The operational amplifier operates within a wide temperature range of -40°C to 125°C.
The LM2904VDR2G is housed in a compact 8-pin SOIC package.
This operational amplifier is AEC-Q100 automotive standard qualified, ensuring high reliability for automotive applications.
The input bias current is specified at -250 nA, which enhances precision performance.
The dimensions of this model are 5mm in length, 4mm in width, and 1.5mm in height.
It includes ESD clamps on all inputs to protect against electrostatic discharge, enhancing its robustness.
The common mode input voltage range extends to the negative supply, eliminating the need for additional biasing components.
The input offset voltage is specified at 7 mV, contributing to its precision performance.
This operational amplifier features an 8-pin configuration.
