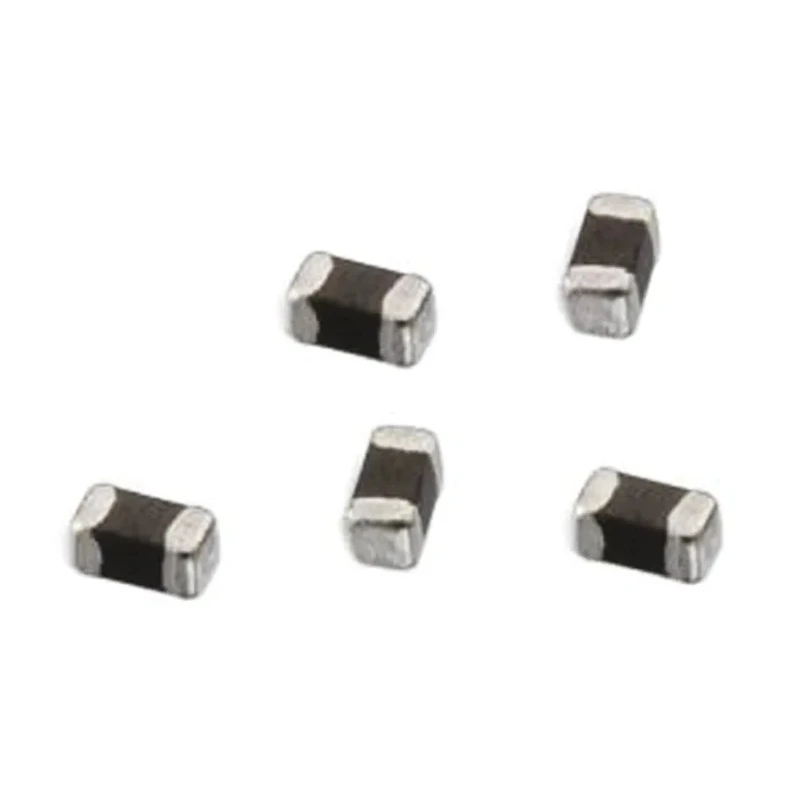

Wurth Elektronik WE-TM SB 0201 Unshielded Multilayer Surface Mount Inductor with Ferrite Core 200 mA DC Current 742692003
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -55°C to +125°C |
| Height | 0.3mm |
| Length | 0.6mm |
| Depth | 0.3mm |
| Packaging | Tape & Reel |
| Series | WE-TM SB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Package/Case | 0201 |
| Maximum DC Current | 200mA |
| Maximum DC Resistance | 450mΩ |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100MHz |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
Key Features
- Miniature 0201 package with dimensions 0.6mm x 0.3mm x 0.3mm.
- Maximum direct current rating of 200 mA ensures efficient performance.
- Multilayer inductor construction offers stable inductance and low resistance.
- Suitable operating temperature range from -55°C to +125°C for robust applications.
- Compliance with IPC/JEDEC J-STD-020D and automotive standard AEC-Q200.
- Maximum DC resistance of 450 mΩ minimizes power loss.
- Maximum self-resonant frequency of 100 MHz for high-frequency applications.
- Surface mount termination style enables easy PCB assembly via tape & reel packaging.
Product Description
Wurth Elektronik 742692003 is a high-quality 0201 unshielded multilayer surface mount inductor featuring a ferrite core, designed to provide effective EMI suppression in miniature electronic designs. Its compact size of 0.6mm length, 0.3mm height, and 0.3mm depth makes it ideal for space-constrained PCB layouts.
The inductor supports a maximum DC current of 200 mA with a low maximum DC resistance of 450 mΩ, ensuring minimal power dissipation and efficient electrical performance. Constructed using multilayer technology, this inductor maintains stable inductance and quality across a wide frequency range with a maximum self-resonant frequency of 100 MHz.
Rated for operation in extreme temperature conditions from -55°C up to +125°C, it is compliant with IPC/JEDEC J-STD-020D standards and meets automotive-grade AEC-Q200 certification, making it suitable for automotive and industrial applications.
Its surface mount termination style allows for precise, reliable placement and soldering on printed circuit boards, supported by tape and reel packaging that facilitates high-volume manufacturing processes.
Miniature size enables use in compact and high-density electronic assemblies. Ferrite core enhances inductive properties and EMI suppression. Multilayer construction assures durability and electrical stability. Operating temperature range ensures wide environmental compatibility.
Automotive and industrial standard compliance guarantees product reliability. Low DC resistance reduces energy loss and heat generation. High self-resonant frequency supports high-frequency filtering applications. Tape & reel packaging streamlines automated assembly and mounting.
This multilayer Surface Mount Inductor is an excellent choice for engineers and designers requiring reliable EMI suppression components for electronic, automotive, industrial, and telecommunications applications. Explore related Wurth Elektronik products and accessories for enhanced circuit design solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this multilayer surface mount inductor is 200 mA.
This inductor has dimensions of 0.6 mm in length, 0.3 mm in height, and 0.3 mm in depth.
It operates within a temperature range of -55°C to +125°C, making it suitable for various environmental conditions.
The maximum self-resonant frequency of this inductor is 100 MHz, which supports high-frequency applications.
The maximum DC resistance is 450 mΩ, which minimizes power loss during operation.
It complies with IPC/JEDEC J-STD-020D standards and meets the automotive standard AEC-Q200.
This inductor features a ferrite core, which enhances its inductive properties.
It is packaged in tape and reel format, facilitating easy and efficient PCB assembly.
This model is constructed using multilayer technology, which provides stable inductance and low resistance.
It employs a surface mount termination style, allowing for precise placement on printed circuit boards.
This inductor is suitable for automotive, industrial, and telecommunications applications, providing effective EMI suppression.
