Molex MX120G Female Connector Housing 3.2 mm Pitch 12 Way 2 Row Straight

Molex MX120G Female Connector Housing 3.2 mm Pitch 12 Way 2 Row Straight 36792-1201 is engineered for reliable cable mounting and industrial applications requiring sealed interconnects.

This connector housing is constructed from high-quality nylon, ensuring resistance to environmental factors and durability in demanding uses. The 3.2 mm pitch facilitates compact wiring layouts while accommodating 12 contacts in a sturdy two-row configuration. Its IP67 rated sealed design makes it ideal for environments with exposure to moisture, vibration, and temperature variations ranging from -40 to +105 degrees Celsius.

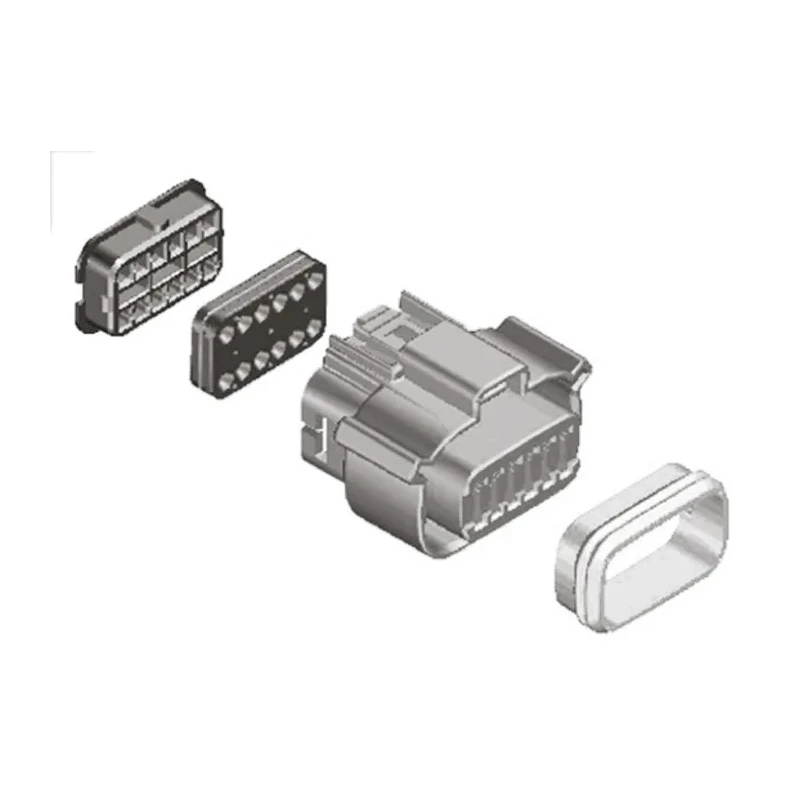

The straight orientation and cable mount type allow easy installation in electrical assemblies. This housing is compatible with the MX120G sealed connector system, featuring a built-in positive locking mechanism that ensures robust retention without additional fasteners. The design includes a single-piece receptacle housing with a pre-assembled perimeter seal and a matte silicone grommet seal system that simplifies assembly and enhances environmental protection.

With a length of 34.89 mm and width of 29.74 mm, this connector housing is suitable for various industrial, automotive, and electronic component applications where compact and reliable wire housing solutions are critical.

Key technical specifications include 12 contacts, 2 rows, female connector gender, nylon housing material, and compatibility with MX120G sealed connectors. This product supports current ratings between 7 to 10.5 amperes depending on wire size and is engineered to meet demanding industrial standards despite lacking formal certification approvals.

The housing features a 3.2 mm pitch ensuring compact and precise connector spacing. It provides 12 contacts arranged in two rows, designed for female connector gender. Constructed from durable nylon material to withstand industrial environments.

The connector housing supports straight orientation for ease of cable mounting. Compatible for use with MX120G sealed connectors providing IP67 rated sealing. Length of 34.89 mm and width of 29.74 mm makes it compact for various applications.

Suitable for harsh environments needing vibration resistance and wide temperature range operation. Integration facilitated by single-piece receptacle housing with polarizing slots for proper interconnection.

This connector housing is ideal for use in industrial electrical assemblies, automotive wiring harnesses, manufacturing equipment, and other demanding environments. It enables secure, high-performance interconnections that resist environmental stresses and ensure system reliability.
