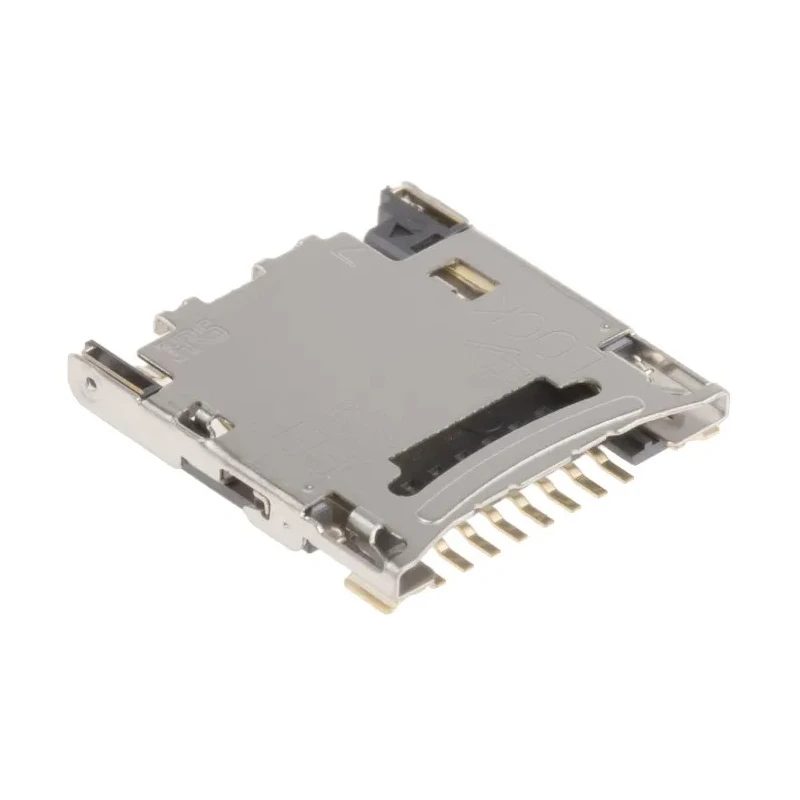

Hirose DM3 8 Way Right Angle Hinged MicroSD Memory Card Connector, Surface Mount, Gold Plated Contacts DM3CS-SF

Hirose DM3CS-SF is a high-quality 8 way right angle hinged MicroSD memory card connector optimized for surface mounting on PCBs. It is engineered with a copper alloy contact material plated in gold to provide superior conductivity and corrosion resistance. Featuring a black liquid crystal polymer housing rated UL94V-0, this connector ensures mechanical robustness and safety in electronic assemblies.

The DM3 series connectors deliver compact external dimensions coupled with a strong, rigid construction ideal for industrial and commercial electronics. The hinged insertion/removal method offers reliable card retention and ease of use while preventing damage from improper handling.

This 8 contact connector includes a normally open card detection switch that signals card presence, improving device operational feedback. Its reverse card insertion protection mechanism safeguards the device and connector from misinsertion issues.

Designed with surface mount technology (SMT) right angle mounting terminals, the connector’s termination leads are accessible for inspection and rework processes, facilitating manufacturing quality control. The four grounding points of the connector’s metal cover secure the ground circuit and provide excellent electromagnetic interference (EMI) protection, essential for maintaining signal integrity in sensitive electronic applications.

Operating temperature ranges from -25°C to 85°C make it well-suited for a variety of environments including industrial equipment, consumer electronics, and IoT devices. The connector meets no special standards or approvals but is part of the dependable Hirose DM3 series of MicroSD connectors widely used in electronic component assembly.

This memory card connector is intended for applications requiring a robust, reliable interface with high signal integrity and ease of assembly on printed circuit boards. It is recommended for use in electronics manufacturing, telecommunications, embedded systems, and portable devices manufacturing.

Choose the Hirose DM3CS-SF to ensure quality, durability, and secure MicroSD card interfacing in your electronic products and systems. The connector features a hinged insertion/removal method for enhanced durability. It has 8 contacts arranged in a single row with a 1.1mm pitch for precise connectivity.

The housing is made from black liquid crystal polymer providing rigid structural integrity and UL94V-0 fire resistance. Operates reliably in temperatures ranging from -25°C to 85°C. Gold plating on contacts ensures excellent electrical conductivity and corrosion resistance.

Designed with reverse card insertion protection and a normally open card detection switch for secure operation. Compact SMT mounting style with accessible termination leads for inspection and rework. Four metal cover connection points secure the ground circuit and provide EMI protection.
