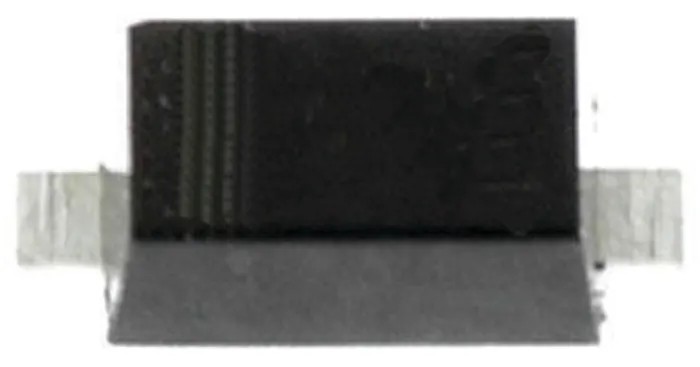

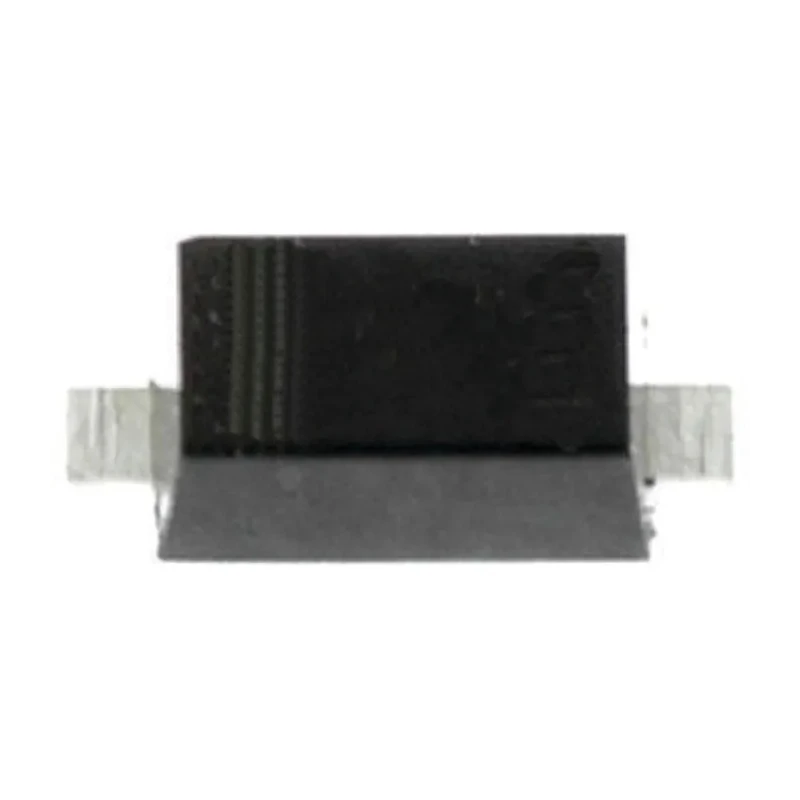

DiodesZetex 15 V Zener Diode Surface Mount 500 mW Power Dissipation 2-Pin SOD-323 Package DDZ15ASF-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 15 V Zener Diode Surface Mount 500 mW Power Dissipation 2-Pin SOD-323 Package DDZ15ASF-7

Name: DiodesZetex 15 V Zener Diode Surface Mount 500 mW Power Dissipation 2-Pin SOD-323 Package DDZ15ASF-7
Brand: DiodesZetex
SKU: 130742
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.75mm
Length	2.7mm
Model	DDZ15ASF-7
Mount Type	Surface
Series	DDZ
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	70nA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	40Ω
Surface Mount case	SOD-323F
Diodes Inc, 24V Zener Diode 2.5% 500 mW SMT 2-Pin SOD-323FBrand	DiodesZetex

Key Features

Nominal Zener voltage rating of 15 V for precise voltage regulation.
Surface mount device in compact SOD-323 package for PCB mounting.
Power dissipation capability of 500 mW ensures reliable operation under load.
2-pin configuration with 2.5% voltage tolerance for tight performance control.
Max operating temperature up to 150°C supports high temperature environments.
Low maximum reverse leakage current of 70 nA minimizes power loss.
Maximum Zener impedance of 40 Ω at test current ensures stable voltage output.
Operating temperature range from -65°C to 150°C for wide application versatility.

Product Description

DiodesZetex DDZ15ASF-7 is a single element Zener diode designed for surface mounting on PCBs. It features a nominal Zener voltage of 15 V and a maximum power dissipation of 500 mW, making it suitable for precise voltage regulation in electronic circuits.

This diode is manufactured in a compact SOD-323 package with a height of 0.75 mm and length of 2.7 mm, optimizing PCB space. It has a tight voltage tolerance of ±2.5%, ensuring accurate voltage control under operating conditions.

The device operates reliably within a temperature range from -65°C up to 150°C, which allows its use in demanding industrial and commercial electronic applications. Its low reverse leakage current of 70 nA and maximum Zener impedance of 40 Ω contribute to efficient and stable circuit performance.

Typical use cases include industrial electronics, power supply voltage stabilization, laboratory instrument circuits, and telecommunications devices requiring dependable voltage reference components. Its surface mount design facilitates automated assembly and high-volume production.

Nominal Zener voltage rating of 15 V for precise voltage regulation. Compact SOD-323 surface mount package for space-efficient PCB design. 500 mW power dissipation enabling moderate power handling capabilities. 2-pin configuration with ±2.5% Zener voltage tolerance for accuracy.

Wide operating temperature range from -65°C to 150°C for rugged use. Maximum reverse leakage current of 70 nA to minimize losses. Maximum Zener impedance of 40 Ω for stable voltage output.

Set the DiodesZetex DDZ15ASF-7 Zener Diode as a reliable choice for precision electronic circuits requiring voltage regulation under surface mount conditions. Browse our comprehensive semiconductor category to find compatible and complementary components to optimize your designs.
