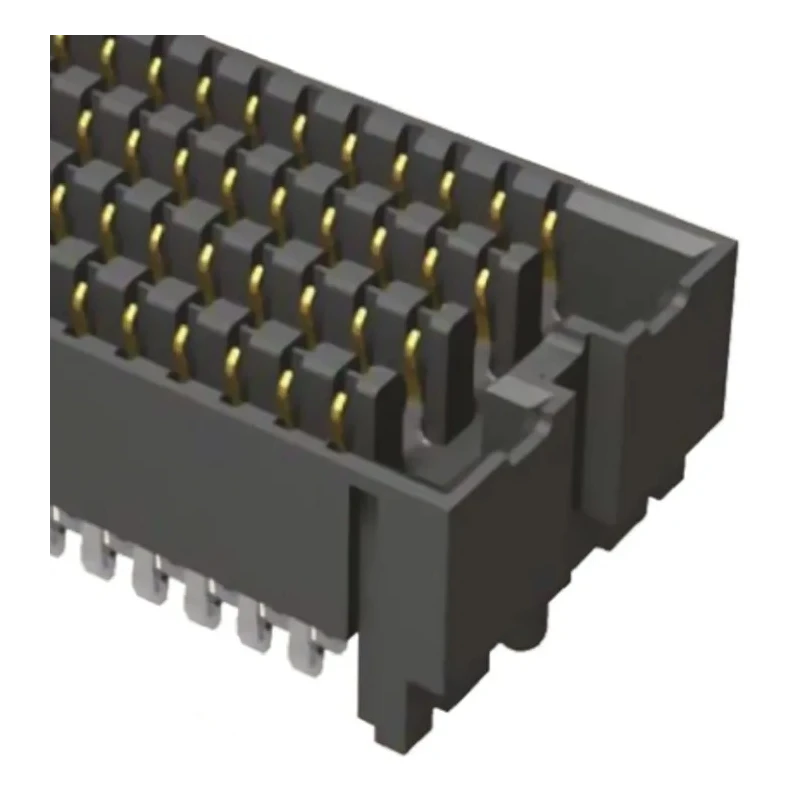

Samtec SEAF Series High Speed 400-Contact 10 Row Straight Surface PCB Socket 1.27 mm Pitch 2.3A SEAF-40-05.0-S-10-2-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.3A |
| Model | SEAF-40-05.0-S-10-2-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | SEAF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 10 |
| Pitch | 1.27mm |
| Contact Resistance | 5.5 mΩ |
| Contact Plating | Gold |
| Number of Contacts | 400 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 18.5mm |
| Row Pitch | 2.5mm |
Key Features
- Supports up to 2.3A current with 240V voltage rating.
- Constructed with Liquid Crystal Polymer housing for durability and thermal stability.
- Surface mount design with straight orientation simplifies PCB assembly.
- Features gold-plated copper contacts for reliable signal transmission and low resistance.
- Wide operating temperature range from -55°C to 125°C ensures performance in harsh environments.
- Stacking height is 18.5 mm suitable for compact board stacking applications.
- Uses SEARAY™ technology enabling high speed performance up to 12.5 GHz at -3dB.
- Connector utilizes solder termination type with excellent solder joint reliability.
Product Description
Samtec SEAF-40-05.0-S-10-2-A-K-TR is a high speed, high density PCB socket connector engineered for board-to-board interconnect applications. This surface mount socket features 400 contacts arranged in 10 rows with a fine 1.27 mm pitch spacing, enabling compact and reliable circuit board connections.
The socket houses female copper contacts plated with 0.76 μm gold on the contact area and matte tin on the tail area, assuring consistent conductivity and high durability. The Liquid Crystal Polymer housing provides excellent mechanical strength and heat resistance, supporting a broad operating temperature range from -55°C to 125°C.
This device supports a current rating of 2.3 amperes and voltage withstand up to 240 volts, making it suitable for demanding electronic assembly environments. With a stacking height of 18.5 mm and a 2.5 mm row pitch, the SEAF series connector supports complex board stacking configurations.
The SEAF Series incorporates advanced SEARAY™ technology allowing signal transmission up to 12.5 GHz at -3dB, ideal for high frequency and high speed digital communications systems. Solder charge technology enhances solder joint integrity, improving overall production reliability.
Typical use cases include industrial electronics manufacturing, telecommunications hardware, aerospace control systems, and high-density computing platforms where precise, reliable board-to-board connections are critical.
Supports high speed data transmission with SEARAY™ technology. Durable construction with gold plated copper contacts and Liquid Crystal Polymer housing. Wide temperature range suitable for extreme environmental conditions.
Reliable solder termination ensures strong PCB mounting. Low contact resistance ensures efficient electrical performance. Industrial grade for manufacturing and telecommunications applications. Explore the full Samtec SEAF Series for comprehensive electronic component solutions on EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.3 amperes.
The maximum voltage rating for this socket is 240 volts.
The pitch size of the contacts is 1.27 mm.
This connector features 400 contacts arranged in 10 rows.
It utilizes a solder termination type for reliable connections.
The housing is made of Liquid Crystal Polymer, and the contacts are copper plated with gold.
The stacking height is 18.5 mm, suitable for compact board stacking applications.
It operates within a temperature range of -55°C to 125°C.
It incorporates SEARAY™ technology, allowing high-speed signal transmission up to 12.5 GHz at -3dB.
The contact resistance is 5.5 mΩ, ensuring efficient electrical performance.
It is suitable for industrial electronics manufacturing, telecommunications hardware, and high-density computing platforms.
The orientation of this connector is straight, designed for surface mounting.
