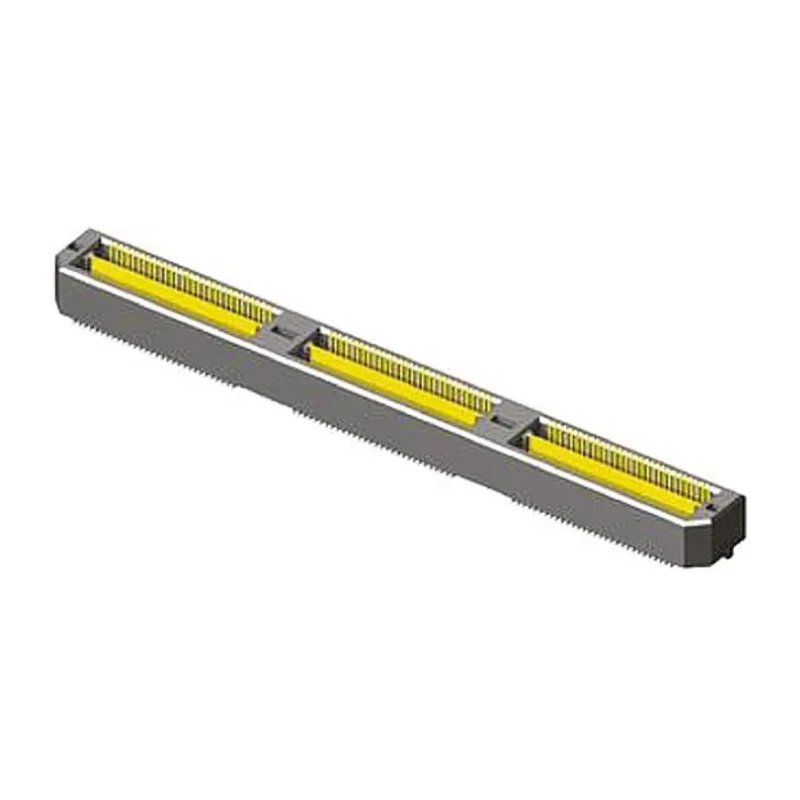

Samtec QTH Series Straight Surface PCB Header 120 Contacts 0.5 mm Pitch 2 Row Shrouded QTH-060-02-L-D-A-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | QTH-060-02-L-D-A-TR |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | QTH |
| Termination Type | Solder |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a 0.5 mm pitch ensuring compact and precise spacing.
- Consists of 120 gold-plated phosphor bronze contacts for excellent conductivity.
- Designed with a shrouded male contact system for secure mating.
- Surface mount type suitable for PCB surface applications.
- Supports a current rating of 1A and voltage of 125V.
- Equipped with solder termination type and straight orientation for ease of assembly.
- Includes alignment pins to ensure accurate placement and connection.
Product Description
Samtec QTH Series Straight Surface PCB Header model QTH-060-02-L-D-A-TR is engineered for high-speed board-to-board connections with exceptional reliability. This surface mount header features 120 male contacts arranged in 2 rows with a fine 0.5 mm pitch, delivering precise alignment and high-density interconnect capability suitable for compact electronics.
Constructed from phosphor bronze contacts plated with 0.25 μm gold for excellent electrical performance and corrosion resistance, this shrouded header offers robust protection and ensures mating integrity within connector systems. The ground plane design includes matte tin-plated tails enhancing solderability and mechanical stability.
Rated for 1 ampere current and 125 volts voltage, it is ideal for use in various electronics applications requiring secure, high-density PCB connectors. Its straight orientation and surface mount style facilitate straightforward board assembly and integration into advanced electronic devices.
The header also features alignment pins, enabling precise placement during manufacturing, reducing assembly errors, and improving reliability in high-speed electronic environments.
Samtec's QTH Series connectors find applications in industrial, telecommunications, computing, and consumer electronics sectors where compact, reliable, and high-performance PCB interconnections are critical.
120 contacts arranged in 2 rows with 0.5 mm pitch. Phosphor bronze contacts with 0.25 μm gold plating. Shrouded male contact design for secure connections. Surface mount type with solder termination. Supports 1A current and 125V voltage rating.
Equipped with alignment pins for precise assembly.
This product details and specifications support engineers and designers in selecting the appropriate PCB Header for demanding electronic assembly requirements and provide durability and performance in diverse industrial applications.
Explore further Samtec high-quality PCB connectors and headers in the Electronics Components category at EnvMart for comprehensive selections suited to various electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header have a pitch of 0.5 mm, allowing for compact and precise spacing between connections.
This model features 120 contacts arranged in 2 rows, providing a high-density interconnect solution for electronic applications.
It supports a current rating of 1A and a voltage rating of 125V, making it suitable for various electronic applications.
The contacts are made from phosphor bronze and are plated with 0.25 μm gold for excellent conductivity and corrosion resistance.
It features a solder termination type, facilitating secure connections during assembly on the PCB.
Yes, it is equipped with alignment pins that ensure precise placement during manufacturing, reducing assembly errors.
This connector has a straight orientation, which simplifies the assembly process on the PCB.
The QTH-060-02-L-D-A-TR model is manufactured in India.
It supports a board-to-board connector system, ideal for high-speed connections between PCBs.
The contacts are designed with a fine 0.5 mm pitch, arranged in 2 rows, but specific dimensions are not provided in the data.
This model is suitable for applications in industrial, telecommunications, computing, and consumer electronics sectors requiring high-density PCB connections.
It uses a surface mount type, making it suitable for surface applications on printed circuit boards.
