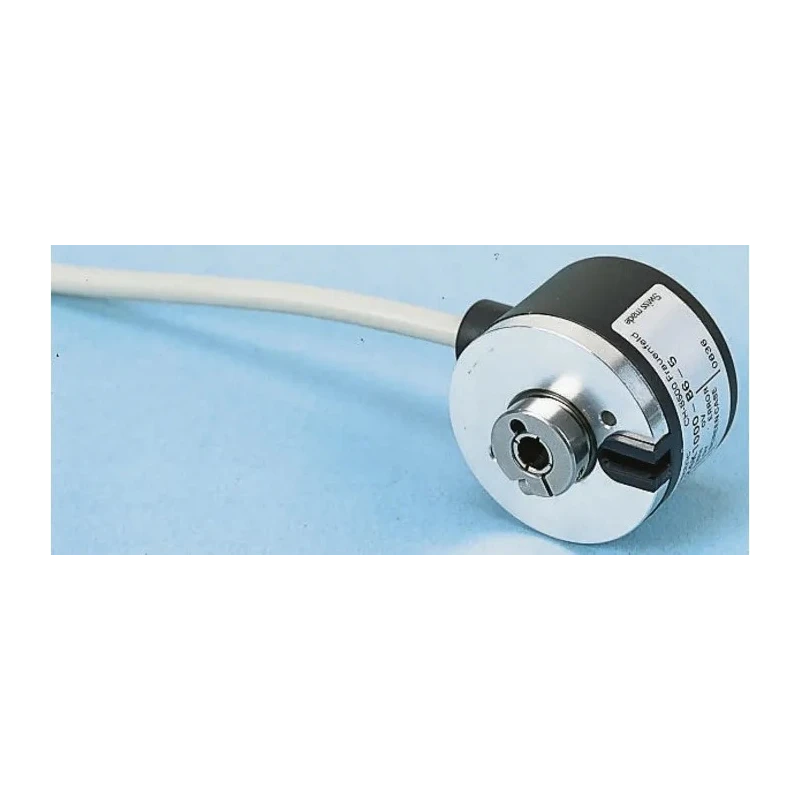

Baumer Optical Incremental Encoder 30V DC, 100 PPR, HTL/Push Pull Signal, Hollow Shaft 6 mm, Flange Mount BHK 16.24K100-B6-5

Free Delivery in India | Lowest Global Shipping Charges

Baumer Optical Incremental Encoder 30V DC, 100 PPR, HTL/Push Pull Signal, Hollow Shaft 6 mm, Flange Mount BHK 16.24K100-B6-5

Name: Baumer Optical Incremental Encoder 30V DC, 100 PPR, HTL/Push Pull Signal, Hollow Shaft 6 mm, Flange Mount BHK 16.24K100-B6-5
Brand: Baumer
SKU: 191446
Price: 696.4 USD
Availability: InStock



Category Incremental Encoder Brand Baumer Condition New

Specifications

Country of Origin	Switzerland
Brand	Baumer
Model	BHK 16.24K100-B6-5
IP Rating	IP42
Mount Type	Flange
Series	BHK
Overall Width	40mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Shaft Diameter	6mm
Switching Frequency	100kHz
Shaft Type	Hollow
Terminal type	1 m Cable
Interface Type	Push Pull
Pulses per Revolution	100ppr
Standards/Approvals	EN
Maximum Supply Voltage	30V dc
Overall Depth	39mm
Encoder Technology	Optical
Maximum Revolutions	12000rpm
Output Signal Type	HTL/Push Pull

Key Features

Operates at a maximum supply voltage of 30V DC for efficient power usage.
Designed with an optical encoder technology to ensure accurate and reliable signal processing.
Features a flange mount type and cable output with a 1 m cable terminal for flexible installation.
Compact dimensions with an overall depth of 39 mm and width of 40 mm, suited for limited spaces.
IP42 rated to protect against dust and water ingress in industrial environments.
Supports a maximum rotational speed of 12,000 rpm with a switching frequency up to 100 kHz.
Functioning temperature range from -20°C to 85°C, suitable for various operating conditions.
HTL/Push Pull output signal type with push pull interface and short circuit protection.

Product Description

Baumer BHK 16.24K100-B6-5 is a high-performance optical Incremental Encoder designed for precise rotational position sensing and motion control applications. It operates at 30V DC supply voltage and delivers 100 pulses per revolution, making it ideal for industrial automation and motion control systems.

This encoder features a hollow shaft design with a 6 mm diameter, enabling easy integration with various shaft mountings and flange mounting for stable, low-profile installations. It outputs HTL/Push Pull signals, ensuring reliable signal integrity for control systems. The push pull interface includes short circuit protection and inverted signals for robust operation.

The encoder body comprises a plastic housing with an aluminum flange, providing durability and lightweight construction. It is rated IP42, offering protection against dust and light water splashes, making it suitable for harsh industrial environments.

With an operational range from -20°C to 85°C, and able to function at rotational speeds up to 12,000 rpm with a switching frequency of 100 kHz, this encoder meets the rigorous demands of industrial, automation, laboratory, and manufacturing applications requiring accurate motion feedback.

The product is manufactured in Switzerland and conforms to EN standards, assuring reliability and precision engineering. It is suitable for applications including conveyor systems, robotics, HVAC controls, process automation, and industrial machinery monitoring.

Operates at 30V DC with 100 pulses per revolution for precise motion sensing. Hollow shaft type with 6 mm diameter and flange mount for flexible installation. Outputs HTL/Push Pull signals with short circuit protection for signal reliability.

Compact design with 39 mm depth and 40 mm width for space-constrained setups. IP42 rated housing protects against dust and light water exposure. Supports speeds up to 12,000 rpm and switching frequency up to 100 kHz. Wide operating temperature range from -20°C to 85°C for diverse environments.

Plastic housing with aluminum flange ensures durability and reduced weight. Manufactured in Switzerland meeting EN standards for quality assurance. Explore more precision encoders and motion control devices in the Electronics & Electricals category at EnvMart for industrial and automation needs.
